Every concept in Three.js explained visually. 96 illustrated breakdowns covering geometry, materials, cameras, shaders, post-processing, physics, audio and more. No prior 3D experience required - just scroll.
All 96 slides in sequence - 7 minutes covering every Three.js concept from geometry to shaders.
01
Overview & Architecture
Three.js is a JavaScript library that wraps WebGL (and now WebGPU) into an approachable scene graph API. The core idea: you describe what you want to show - objects, lights, a camera - and the renderer figures out how to draw it on the GPU. The architecture is simple: a Scene holds Object3Ds, a Camera defines the view, and a Renderer draws it all every frame.
Every Three.js scene follows the same pattern: create a Scene, add Mesh objects (Geometry + Material), position a Camera, and hand it all to the Renderer which sends draw calls to the GPU. The render loop runs at 60fps via requestAnimationFrame.
Understanding this flow is the foundation for everything else in this guide. Every other concept - shaders, post-processing, physics - sits on top of this core loop.
Scene
Camera
Renderer
Mesh
BufferGeometry
Material
Object3D
requestAnimationFrame
// The minimal Three.js sceneconst scene = newTHREE.Scene();
const camera = newTHREE.PerspectiveCamera( 75, width/height, 0.1, 1000 );
const renderer = newTHREE.WebGLRenderer({ antialias: true });
renderer.setAnimationLoop( () => renderer.render( scene, camera ) );
02

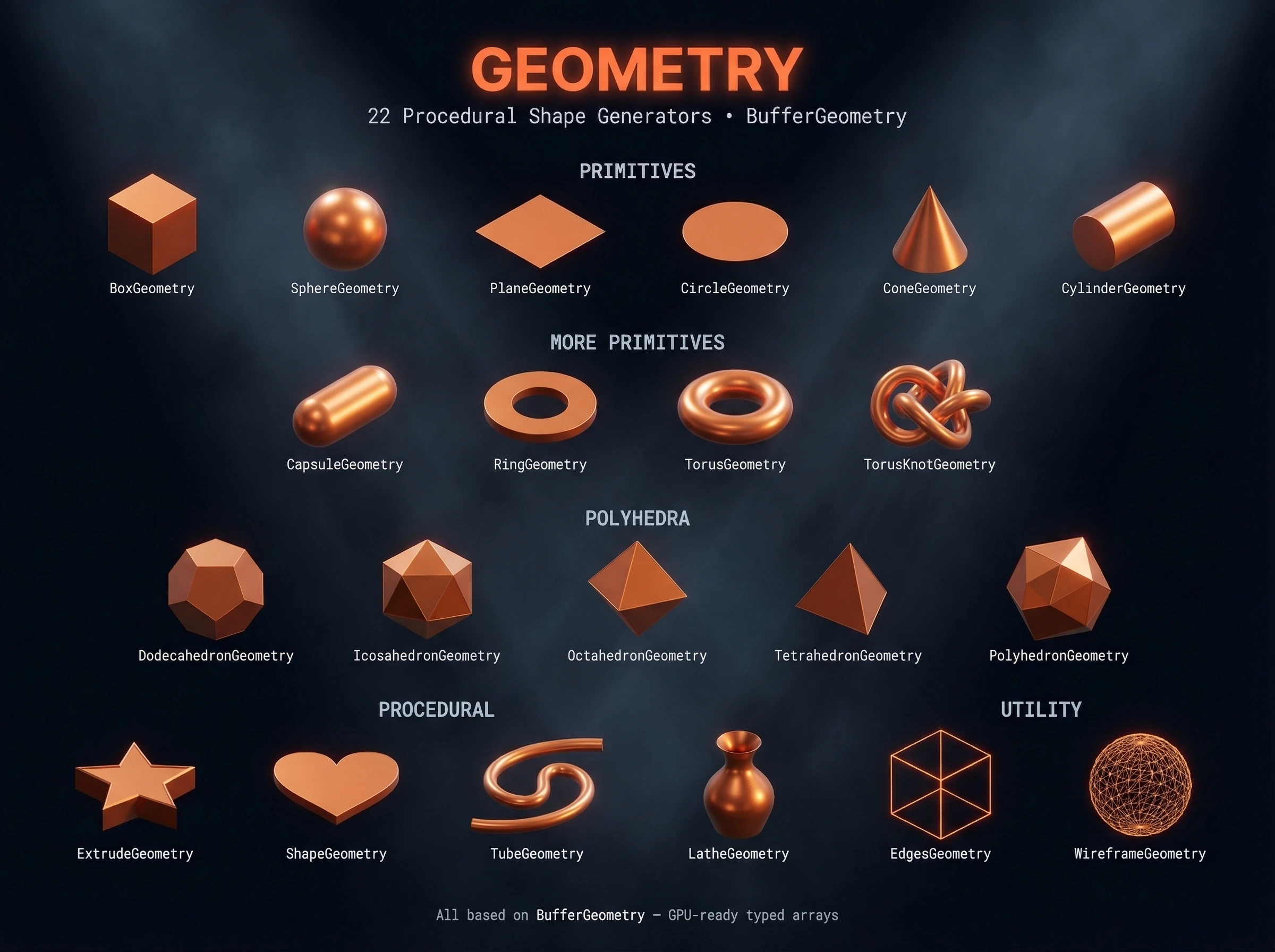

Geometry
Geometry defines the shape of a 3D object - the vertices, edges and faces that make up its surface. Under the hood, everything is a BufferGeometry: flat typed arrays of vertex data (position, normal, UV, color, index) sent directly to the GPU. Three.js ships 21 built-in geometry constructors, plus the tools to create your own from scratch or load from files.
Three.js provides a geometry for almost every common shape out of the box. The primitives - Box, Sphere, Cylinder, Cone, Torus - cover most game and visualisation needs. The parametric types - LatheGeometry, TubeGeometry, ExtrudeGeometry - let you create complex shapes from curves and profiles. The polyhedra - Icosahedron, Dodecahedron, Octahedron - produce mathematically perfect symmetric shapes.
All geometries have a widthSegments/heightSegments parameter that controls polygon density. More segments = smoother shape but higher vertex count. TorusKnotGeometry creates intricate knotted shapes via p and q winding parameters.
Materials control how geometry looks when rendered - its colour, shininess, transparency, and how it reacts to light. Three.js has materials for every use case and performance budget: from the cheapest flat MeshBasicMaterial (no lighting) to the fully physics-based MeshPhysicalMaterial with clearcoat, sheen, iridescence, transmission and subsurface scattering. The right material makes the difference between flat and photorealistic.
All Material Types - From Basic to Physically Based
MeshBasicMaterial - No lighting calculation. Always shows flat colour or texture. Zero GPU cost. Use for UI, wireframes, non-lit stylised objects.
MeshLambertMaterial - Diffuse-only lighting (no specular). Calculated per-vertex, not per-pixel. Fast and decent for matte surfaces. Not realistic but works great for stylised scenes.
MeshPhongMaterial - Adds a specular highlight (Blinn-Phong model). shininess controls the tightness of the specular spot. Classic 3D look, faster than PBR.
MeshStandardMaterial - Physically-based rendering (PBR). Metalness/roughness workflow. roughness=0 is mirror-like, roughness=1 is fully diffuse. Correctly responds to environment maps and IBL lighting.
MeshPhysicalMaterial - Extends Standard with clearcoat, sheen (velvet), iridescence, transmission (glass), thickness (refraction depth) and anisotropy. The most realistic material.
MeshToonMaterial - Cel-shaded cartoon look using a gradient map to define the step in shading bands. Combine with an outline pass for a complete anime aesthetic.

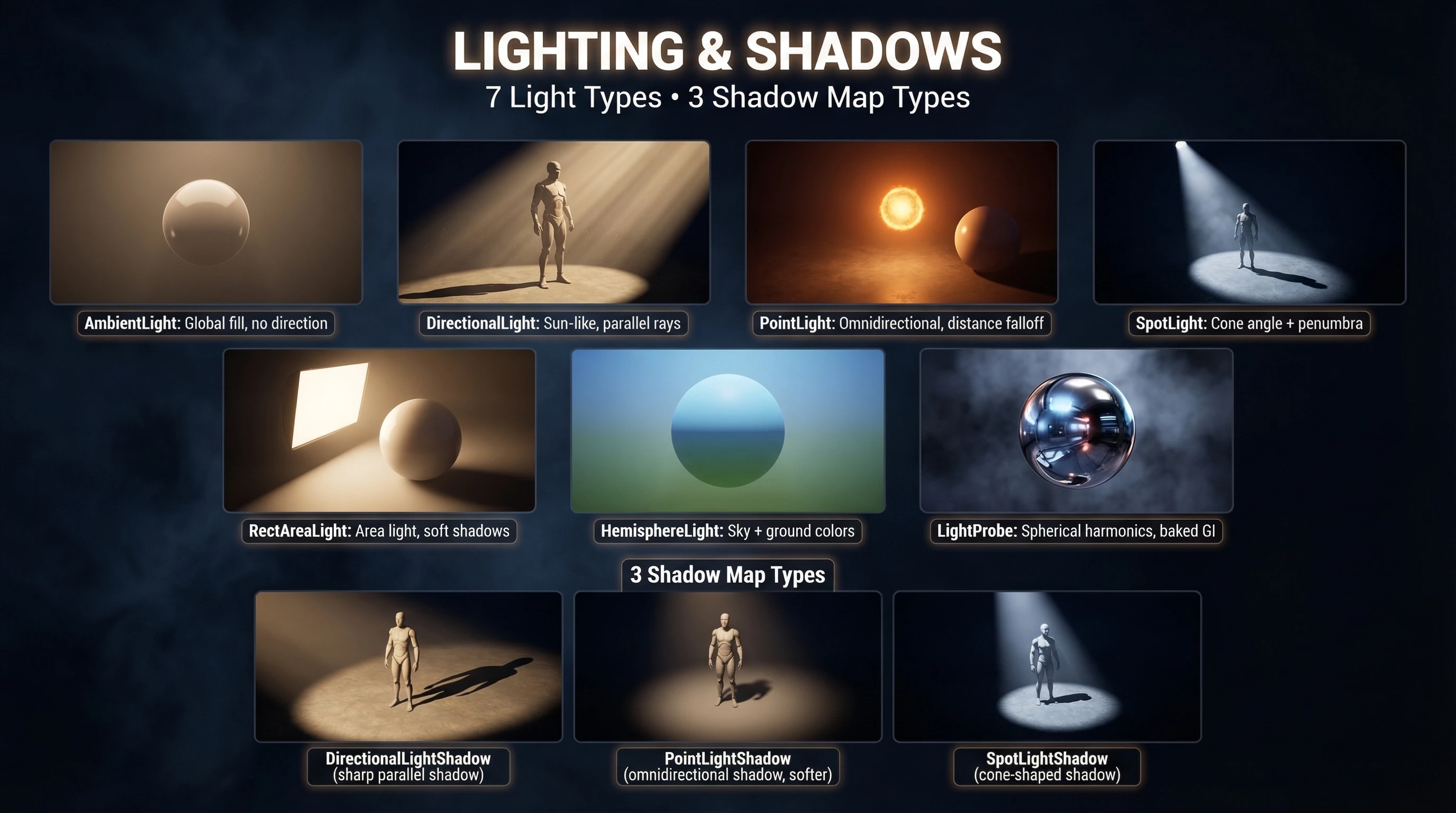

Lighting is what makes a 3D scene feel real. A well-lit scene communicates depth, weight, material type and mood. Three.js offers 7 light types - from the ambient fill that eliminates harsh shadows to the precise spotlight casting dramatic shadows. Only DirectionalLight, SpotLight and PointLight can cast shadows; each uses a shadow map technique (rendering the scene from the light's POV to determine occlusion).
AmbientLight - Adds a flat uniform colour to every surface. No direction, no shadows, no highlights. Use it as a base fill to prevent completely black shadows. Too much makes scenes look flat.
DirectionalLight - Infinite parallel rays, like the sun. All shadows are parallel (use OrthographicCamera for shadow map). Position sets the direction; target sets what it points at. The workhorse outdoor light.
PointLight - Radiates in all directions from a point, like a light bulb. Has distance and decay for falloff. Casts shadows in 6 directions (expensive - uses CubeCamera internally).
SpotLight - Cone-shaped beam, like a flashlight or stage light. angle sets cone width, penumbra softens the edge. Position + target defines the beam direction. Great for dramatic lighting.
HemisphereLight - Sky colour from above, ground colour from below. Two-colour gradient fill that simulates outdoor ambient light. No shadows. Very cheap and effective for outdoor scenes.
RectAreaLight - Soft rectangular light source (like a fluorescent tube or window). Works only with MeshStandardMaterial and MeshPhysicalMaterial. Requires RectAreaLightUniformsLib. No shadow support.
LightProbe - Encodes ambient lighting as spherical harmonics (SH). Low-frequency ambient lighting baked from the environment - smooth, cheap, and great for matching captured real-world lighting.

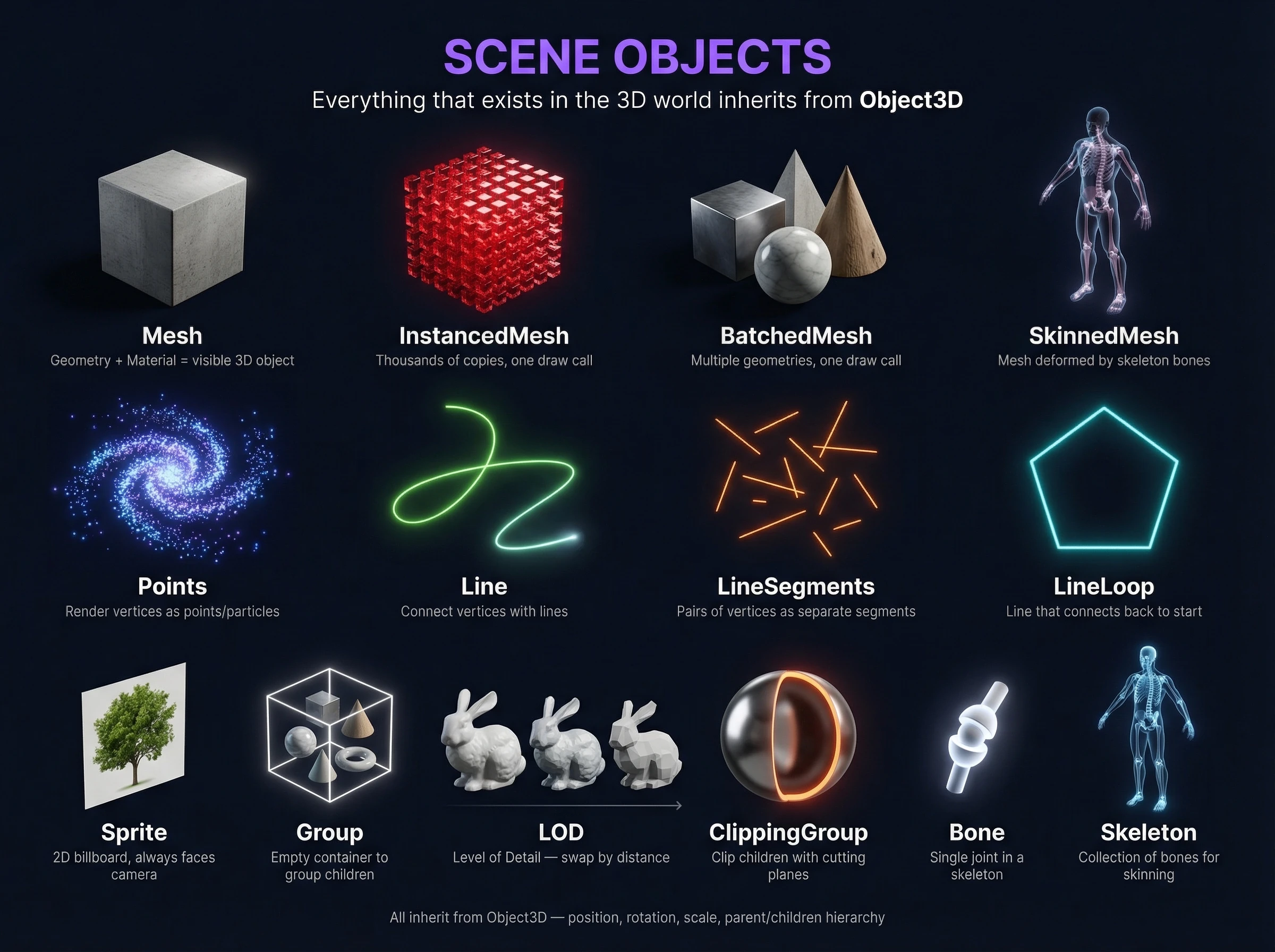

Everything in a Three.js scene is an Object3D - the base class providing position, rotation, scale, visibility, and parent/child hierarchy. From the basic Mesh to the GPU-instanced InstancedMesh that draws 100,000 copies in a single draw call, each object type exists to solve a specific rendering challenge.
Mesh - The fundamental 3D object: geometry + material. Supports position, rotation, scale, visibility, shadow casting/receiving. Most of your scene will be Meshes.
InstancedMesh - Renders N copies of the same geometry+material in a single GPU draw call. Set each instance's transform via setMatrixAt(i, matrix). Renders a forest of 100,000 trees as fast as one tree. Essential for performance.
BatchedMesh (r159+) - Like InstancedMesh but allows different geometries in the same draw call. Add and remove geometry slots dynamically without recreating the whole buffer.
SkinnedMesh - A Mesh deformed by a Skeleton (bone hierarchy). Bones are Object3Ds - moving them deforms the mesh via skinning weights stored in the geometry. Used for all character animation.
Points - Renders each vertex as a screen-aligned point/sprite. Used for particle systems - fire, smoke, stars, galaxy simulations. PointsMaterial controls size, texture, colour and size attenuation with distance.
Line / LineSegments / LineLoop - Draws line primitives. LineSegments draws disconnected pairs. LineLoop closes the path. Used for debug geometry, wireframes, connector lines, graphs.
Sprite - A billboard that always faces the camera. Sized in screen space. Used for labels, icons, particle effects and 2D elements in 3D space.
Group - An empty Object3D used as a parent container. Transforming a Group moves all children together. Fundamental for scene organisation and hierarchical animation.
LOD - Automatically swaps between high/medium/low poly versions based on camera distance. Add levels with lod.addLevel(mesh, distance). Essential for large open-world scenes.
Mesh
InstancedMesh
BatchedMesh
SkinnedMesh
Points
Line
LineSegments
LineLoop
Sprite
Group
LOD
Scene
07
Cameras
The camera defines how the 3D scene is projected onto your 2D screen. PerspectiveCamera mimics human vision - objects farther away appear smaller. OrthographicCamera has no perspective - objects stay the same size regardless of distance, giving the classic isometric game look. The remaining cameras serve specialised purposes: real-time reflections, multi-viewport, and VR.
The most common camera in Three.js. Takes four parameters: fov (vertical field of view in degrees), aspect (width/height of the canvas), near (closest visible distance), far (furthest visible distance).
FOV 30° - Telephoto/sniper zoom. Looks flat, compressed perspective. Objects appear very close together. Used in sniper rifle scopes, architectural renders where you want distortion-free perspective.
FOV 75° - Standard FPS game feel. Natural perspective, good depth. Most third-person games and 3D web apps use 60–75°.
FOV 120° - Ultra-wide angle, strong fisheye effect. See a huge amount of the scene but with significant edge distortion. Used for racing cockpits, arena shooters, action games.
const camera = newTHREE.PerspectiveCamera(
fov, // field of view in degrees (vertical)
aspect, // canvas width / canvas height
near, // near clipping plane (e.g. 0.1)
far // far clipping plane (e.g. 1000)
);

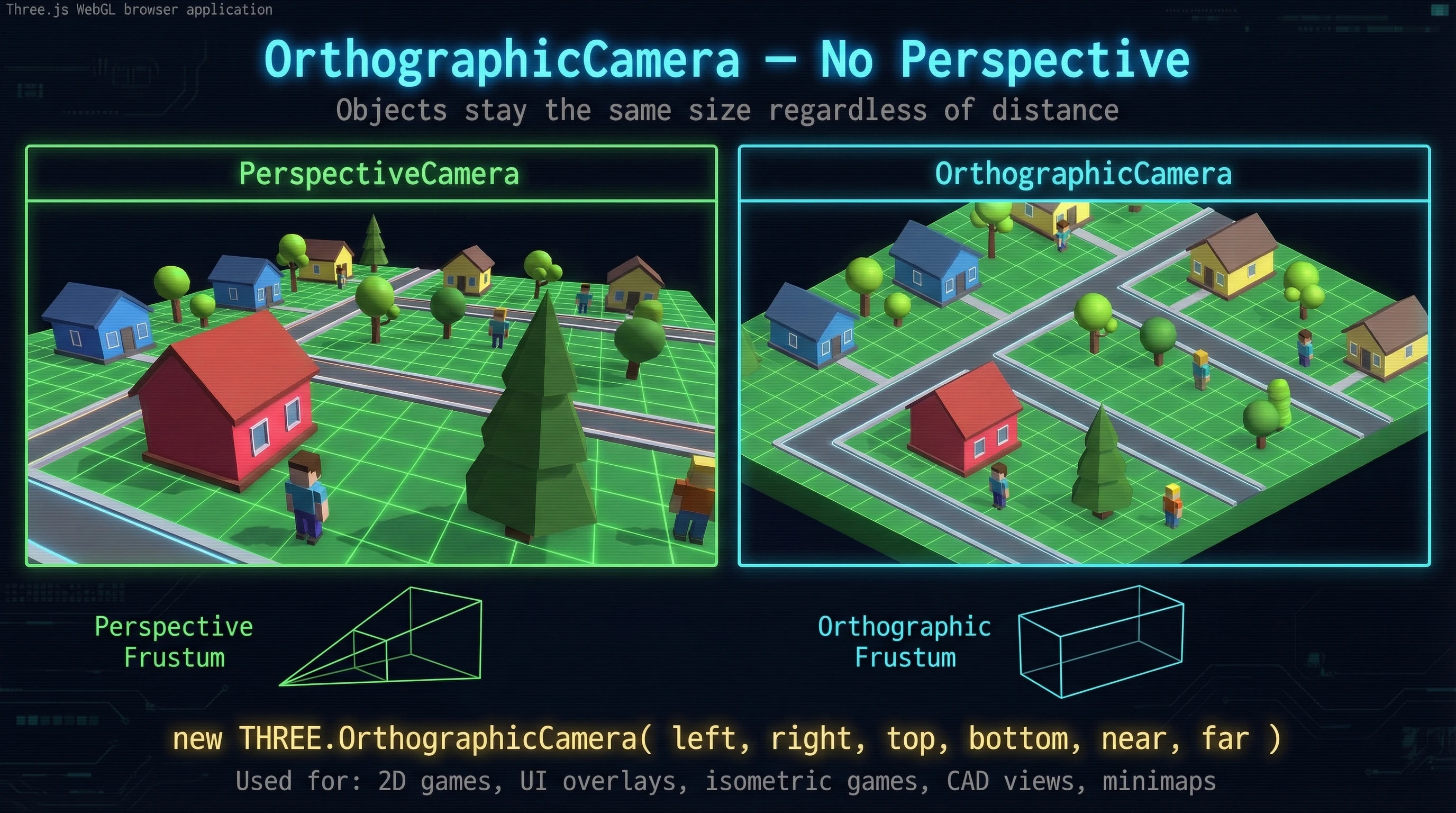

OrthographicCamera - Parallel Projection
No perspective. Objects at the same size remain the same size regardless of distance from camera. This is the camera for isometric strategy games, top-down 2D games, CAD/engineering views, and shadow maps for directional lights. Takes left, right, top, bottom, near, far - defining a box-shaped frustum.
left/right/top/bottom
near/far
no perspective distortion
isometric games
shadow cameras

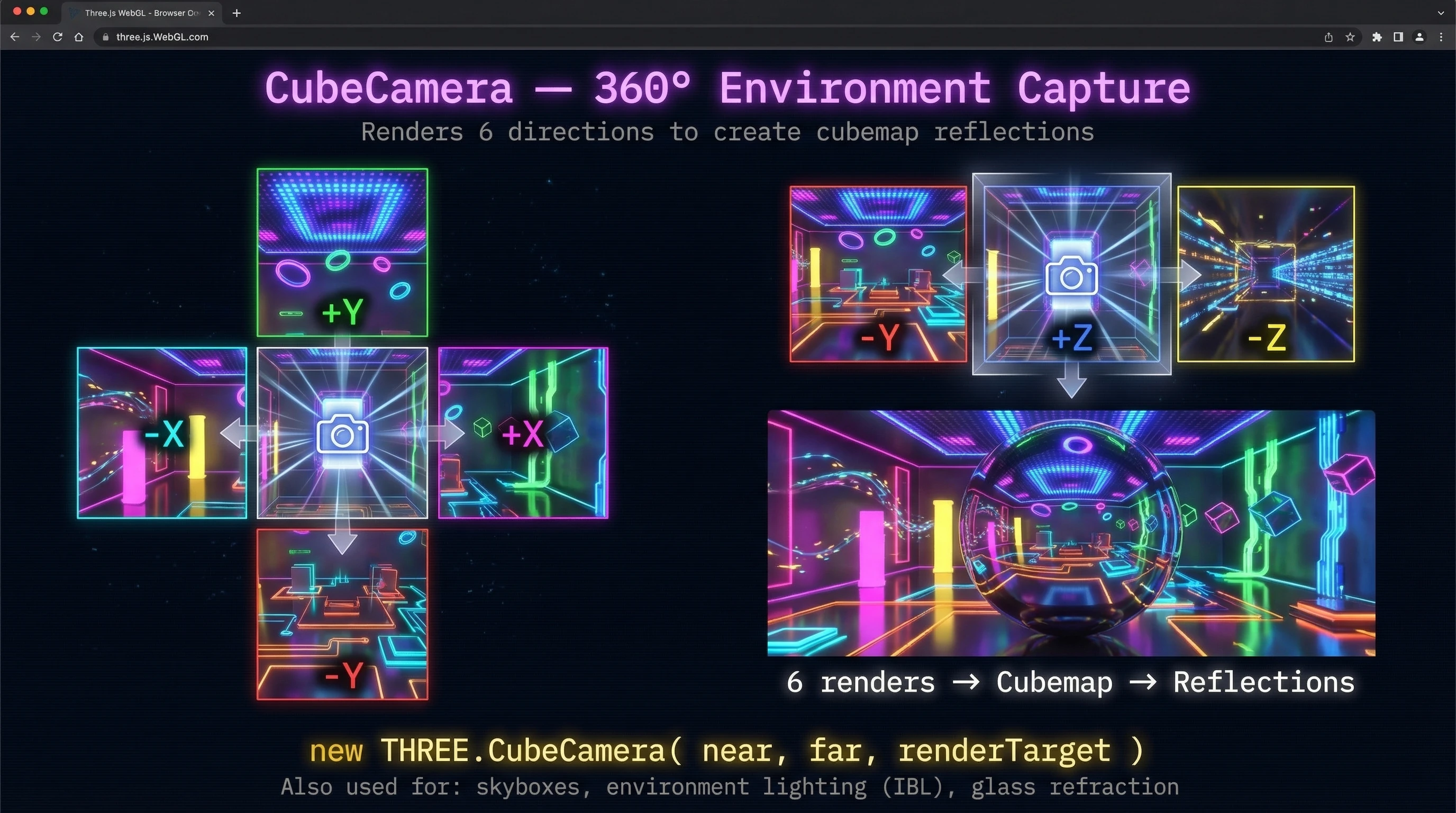

CubeCamera - 360° Environment Capture
Renders the scene 6 times (±X, ±Y, ±Z faces) into a WebGLCubeRenderTarget, producing a cubemap texture of the environment. Place it inside/near an object to capture its reflection environment. Update it each frame for dynamic real-time reflections - or capture once and cache for static reflections.

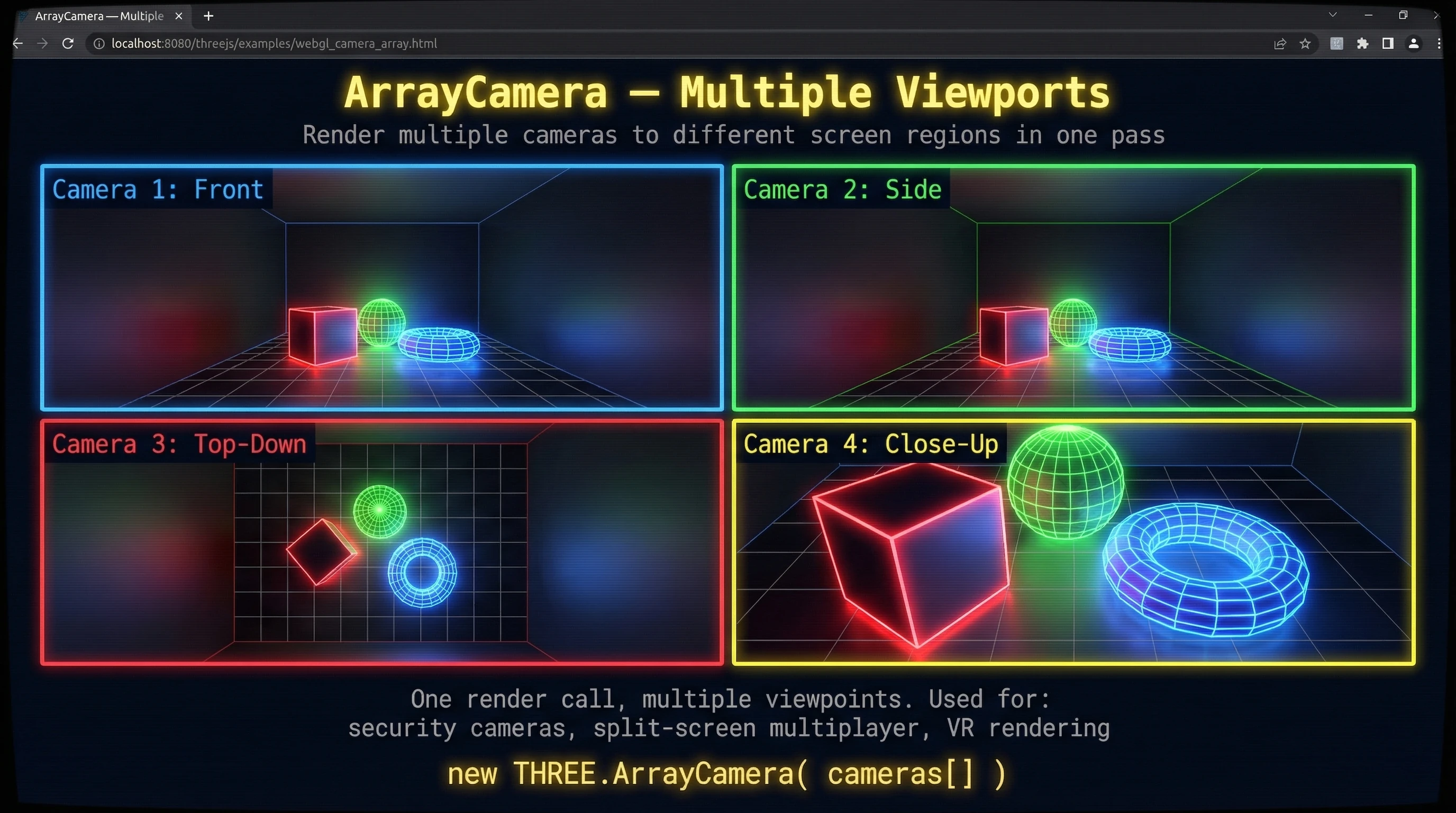

An array of sub-cameras each defining a viewport region (x, y, width, height in normalised 0–1 coordinates). Used for split-screen multiplayer games, security camera monitor UIs, or rendering the same scene from multiple simultaneous viewpoints. More efficient than rendering multiple separate scenes.

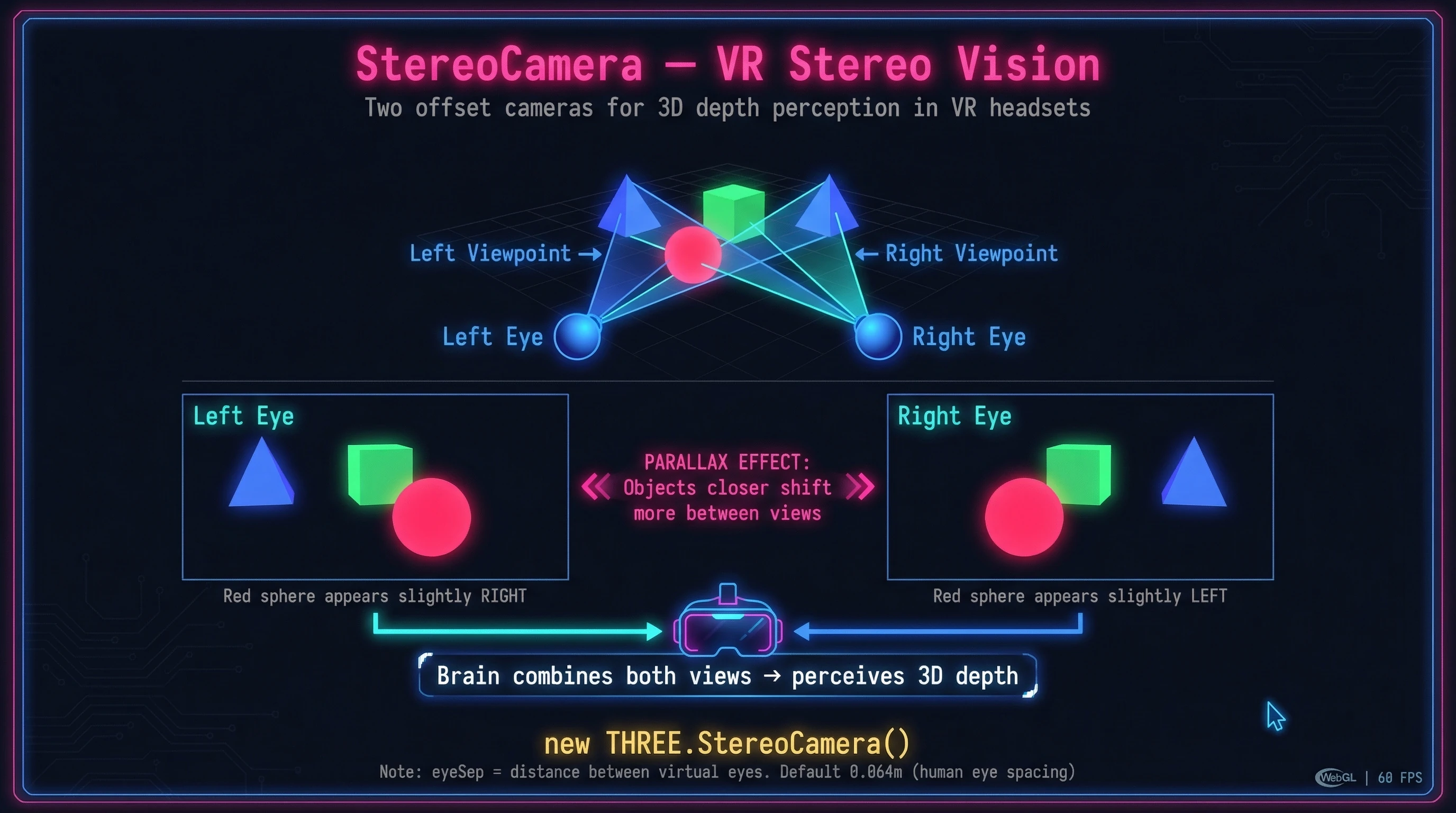

StereoCamera - VR & 3D Anaglyph
Two cameras separated by an eye offset (eyeSep parameter, default 0.064 metres). Renders left and right eye views side by side. Used with VR headsets (also see XRManager for full WebXR support) or red-cyan anaglyph 3D for classic stereoscopic effect.
08
Textures

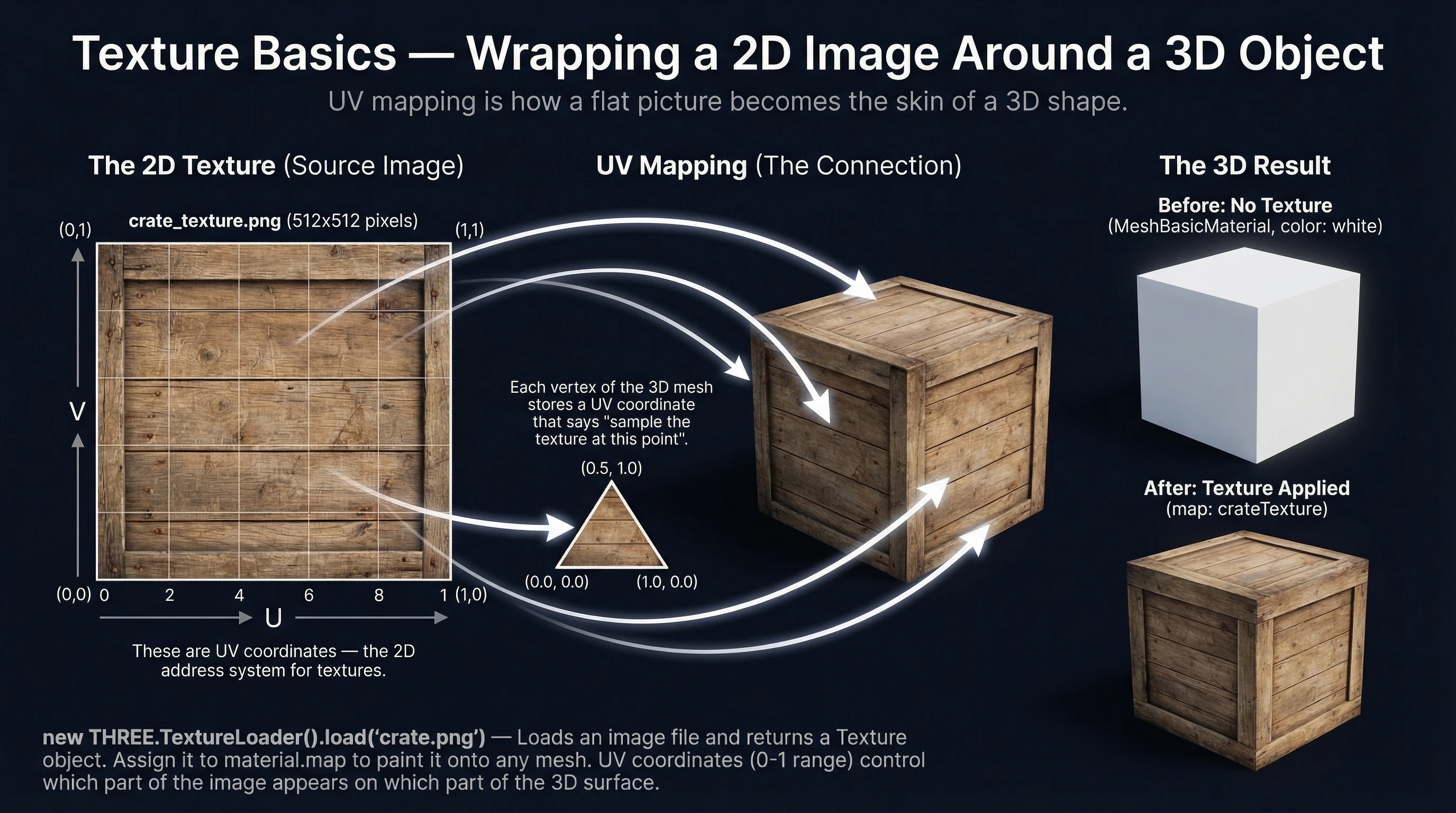

Textures are images mapped onto geometry surfaces to add visual detail without adding geometry. A UV map on each vertex tells the GPU which part of the texture to sample there. Three.js supports flat colour textures, normal maps for fake surface depth, full PBR texture sets, video textures, HDR environments, and compressed GPU-native formats for 4–8× less VRAM usage.
Every vertex has a UV coordinate (0–1 range) that maps it to a position in a 2D texture. UV 0,0 is bottom-left, 1,1 is top-right. Use texture.repeat to tile, texture.offset to shift, texture.wrapS/T to control how it repeats at edges (ClampToEdge, Repeat, MirroredRepeat).

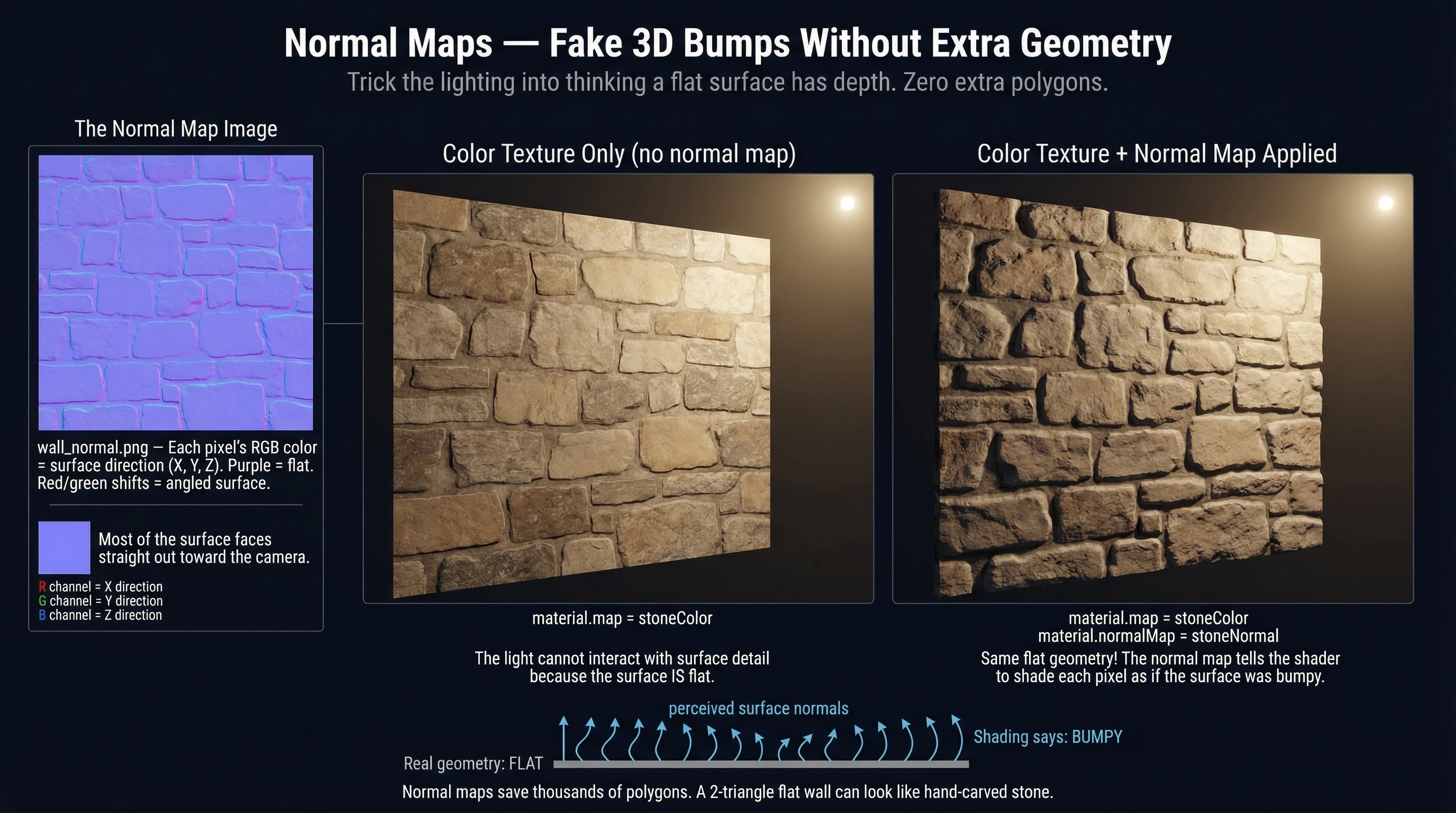

An RGB image where each pixel encodes a surface normal direction. The lighting model uses these fake normals to simulate bumps, scratches, fabric weave and detail - without adding a single polygon. The result looks 3D under moving light but the geometry remains flat. Essential for game-quality assets.

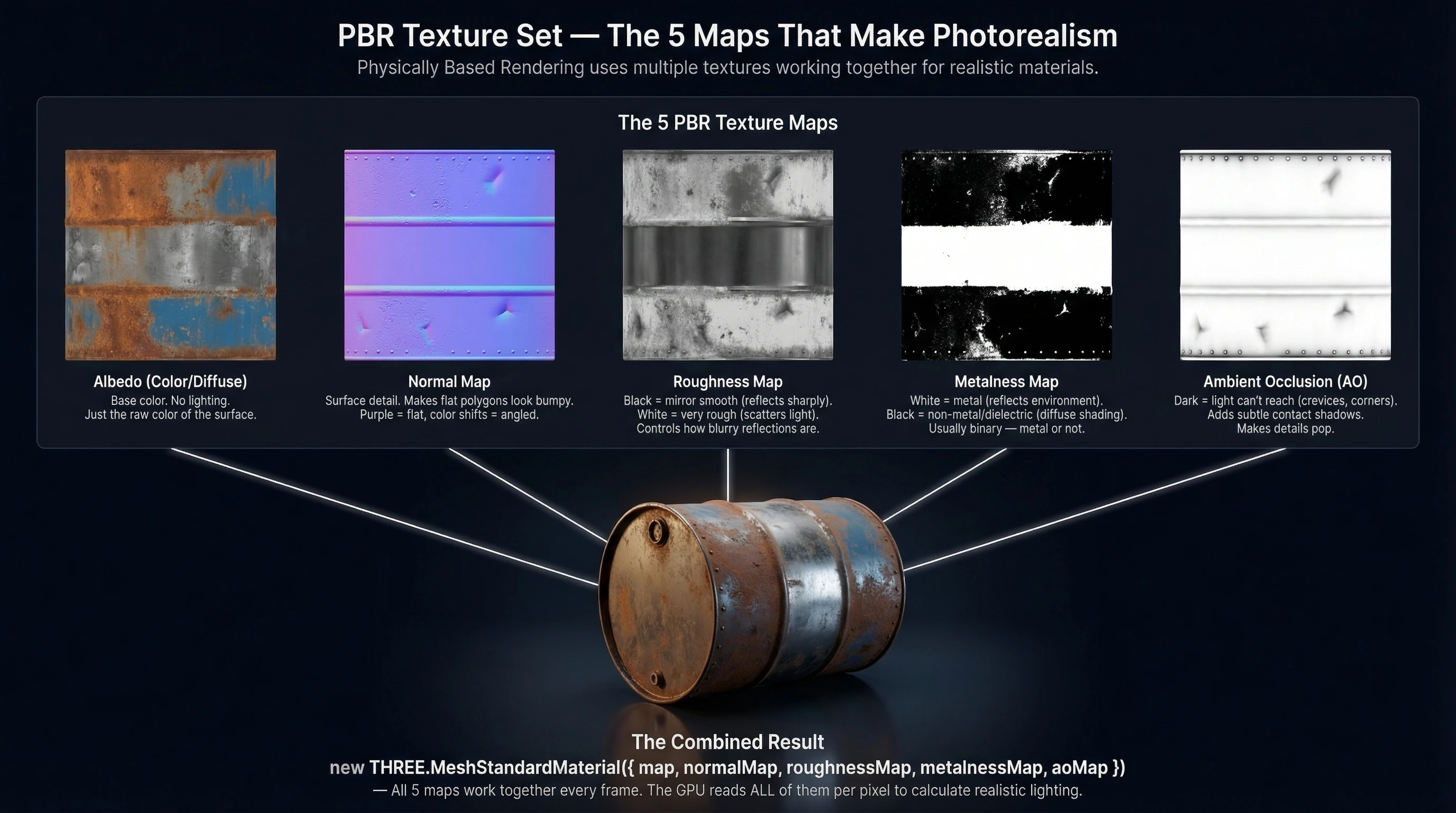

PBR Texture Set
A full physically-based rendering texture set for MeshStandardMaterial: Albedo (base colour, no lighting), Normal (surface detail direction), Roughness (how blurry reflections are - 0=mirror, 1=fully matte), Metalness (is it metal? - 0=non-metal, 1=metal), AO (ambient occlusion - contact shadows). Optional: Emissive, Displacement, Opacity.

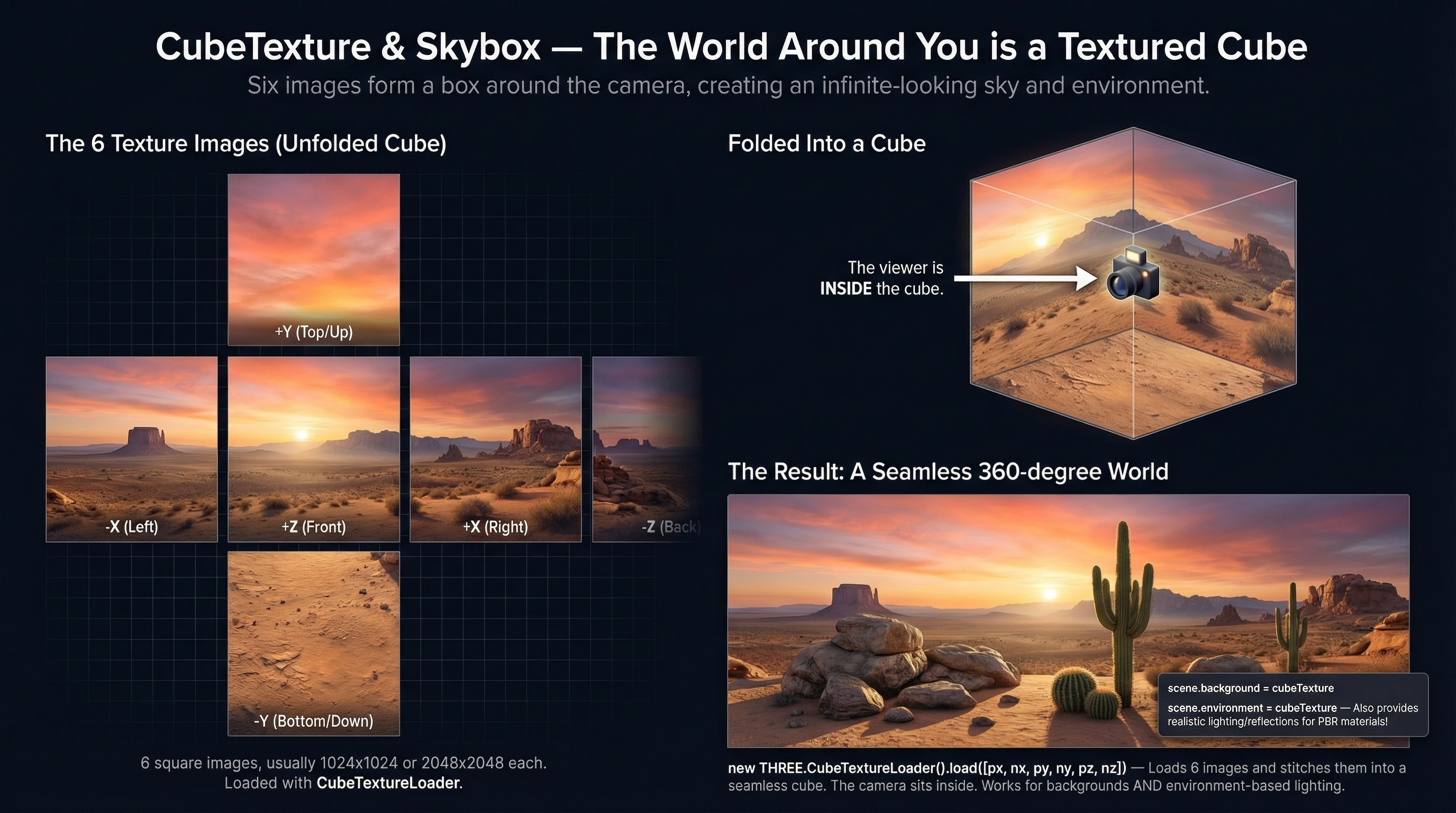

CubeTexture - Skybox & Environment
6 images (±X, ±Y, ±Z) assembled into a cubemap. Set scene.background = cubeTexture for a skybox. Set scene.environment = cubeTexture to use it as IBL (image-based lighting) - it will automatically light all PBR materials, providing realistic reflections and ambient lighting from the environment.

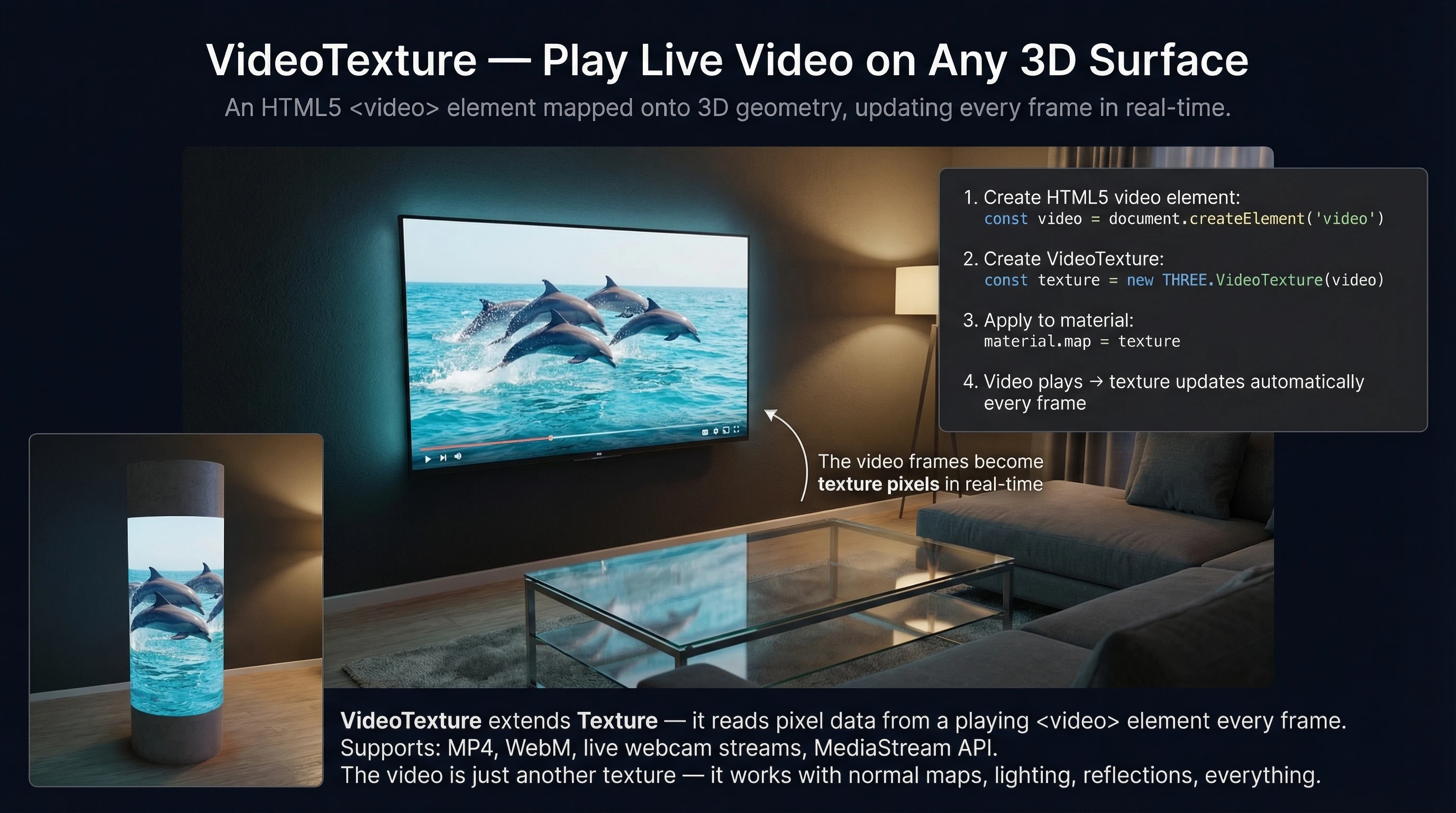

VideoTexture - Live Video on Surfaces
Maps a playing HTML <video> element onto a 3D surface in real time. The texture updates every frame to match the video playback. Used for in-game TVs, screens, portals, projectors and video walls. Must call videoTexture.needsUpdate = true each frame.

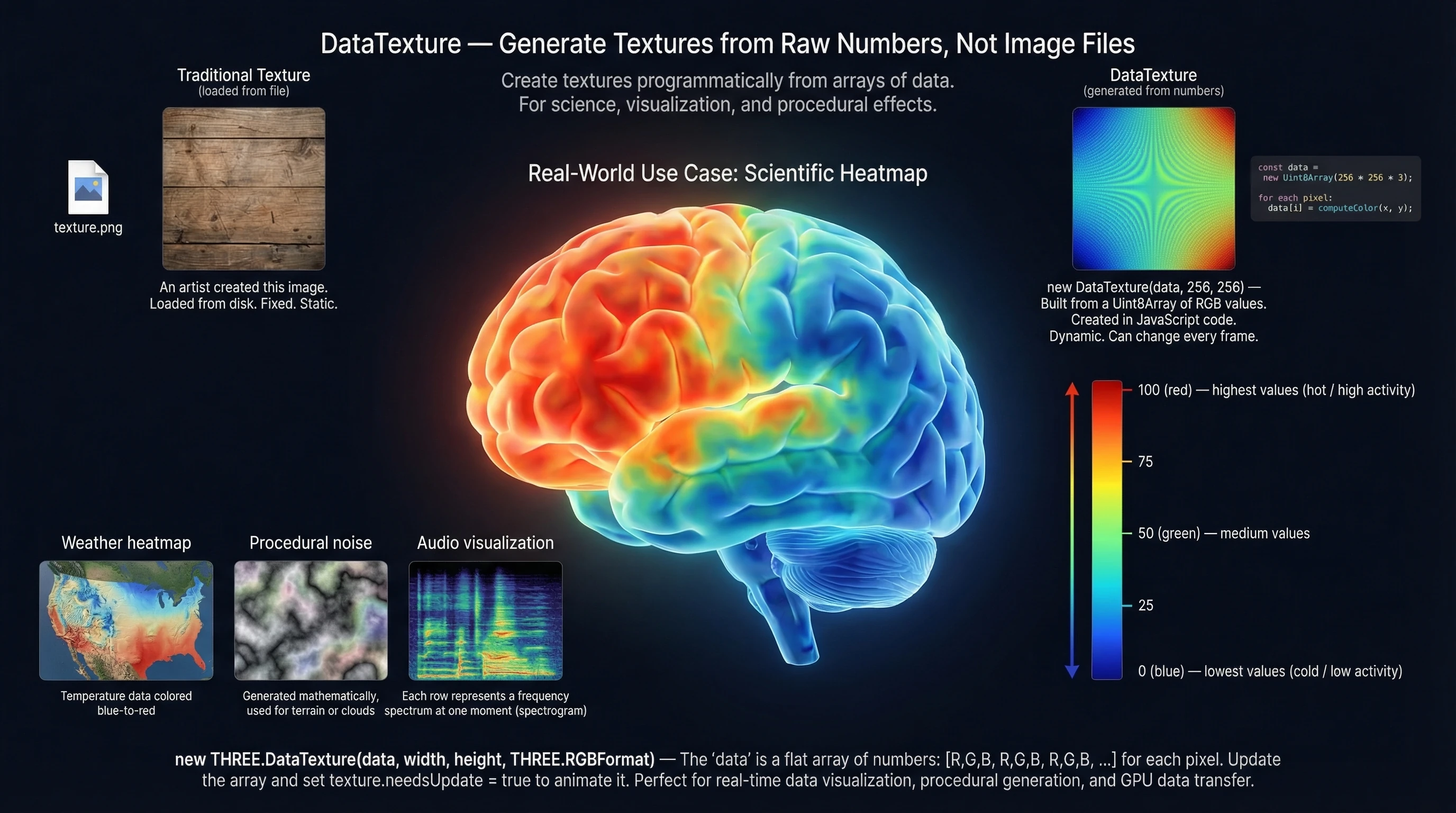

DataTexture - Programmatic Textures
Create textures directly from typed arrays in JavaScript - no image file needed. Pass a Uint8Array or Float32Array of pixel values. Used for heatmaps, heightmaps, scientific data visualisation, and GPU-computed textures from compute shaders.

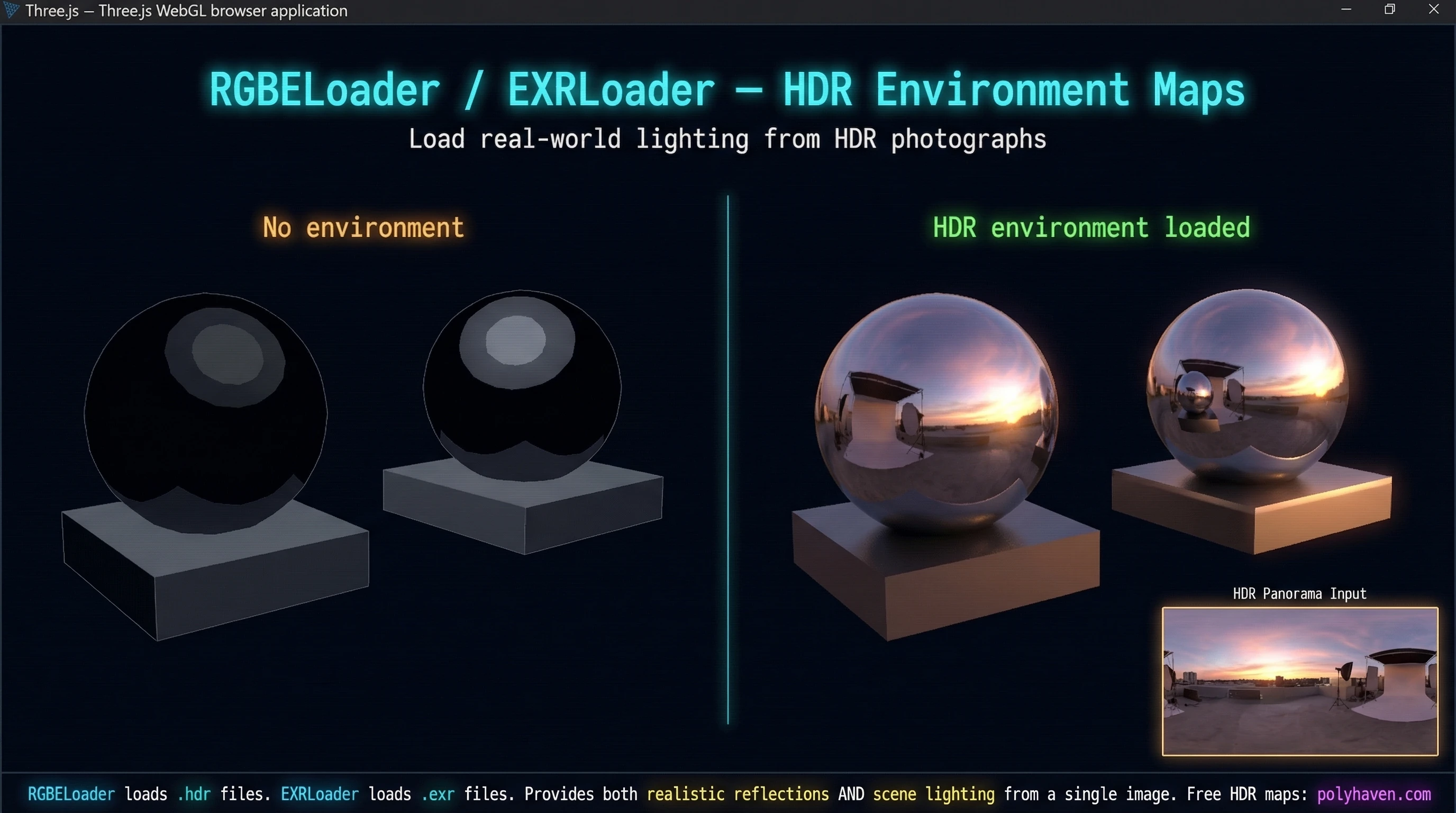

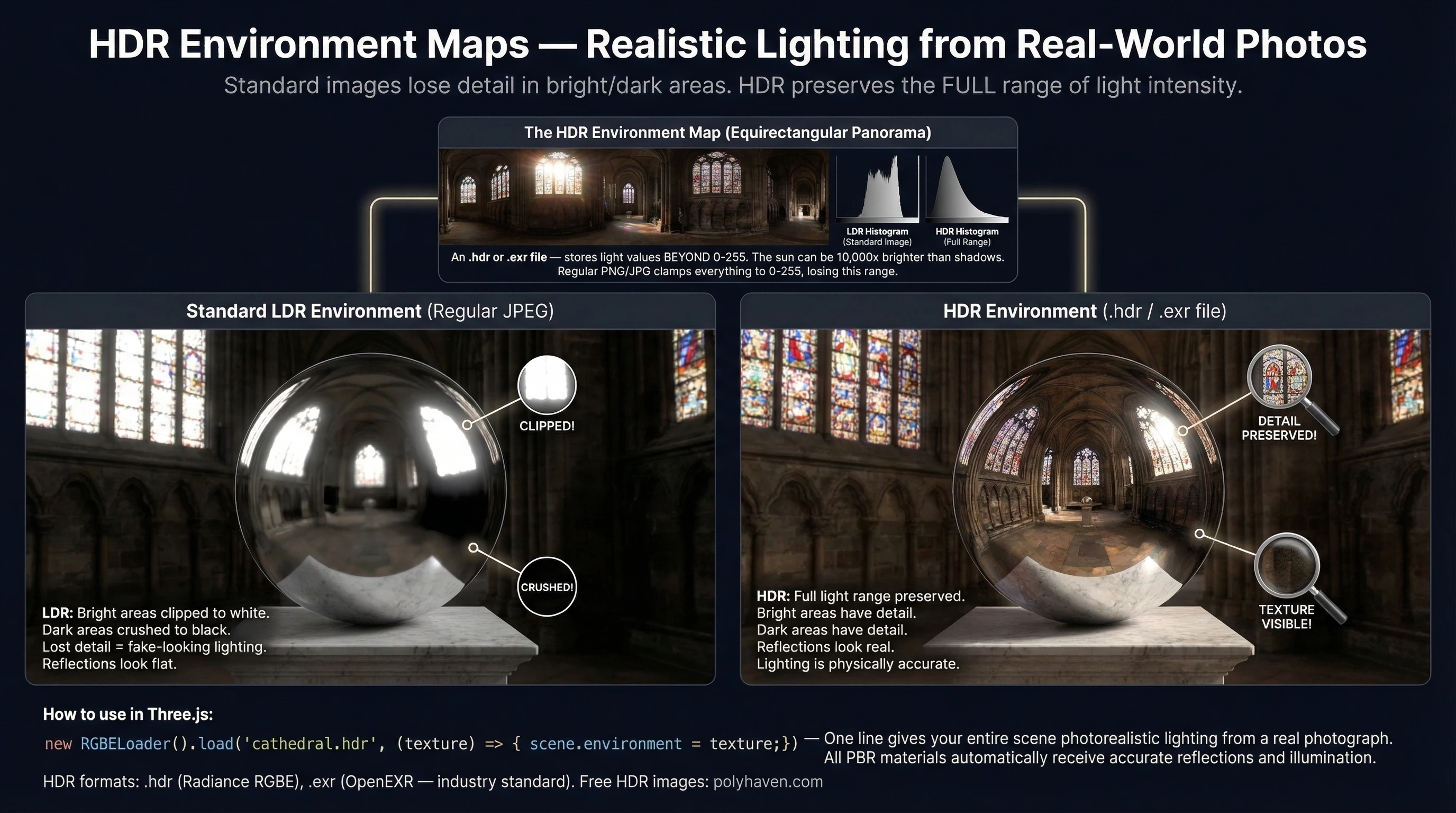

HDR / EXR Environment Maps
High dynamic range images store light values far above 1.0, capturing the full range from deep shadow to bright sun. Load .hdr (RGBE format) with RGBELoader or .exr with EXRLoader, then pass to PMREMGenerator to prefilter for PBR rendering. The result: metal surfaces reflect actual sunlight, not just a flat colour.

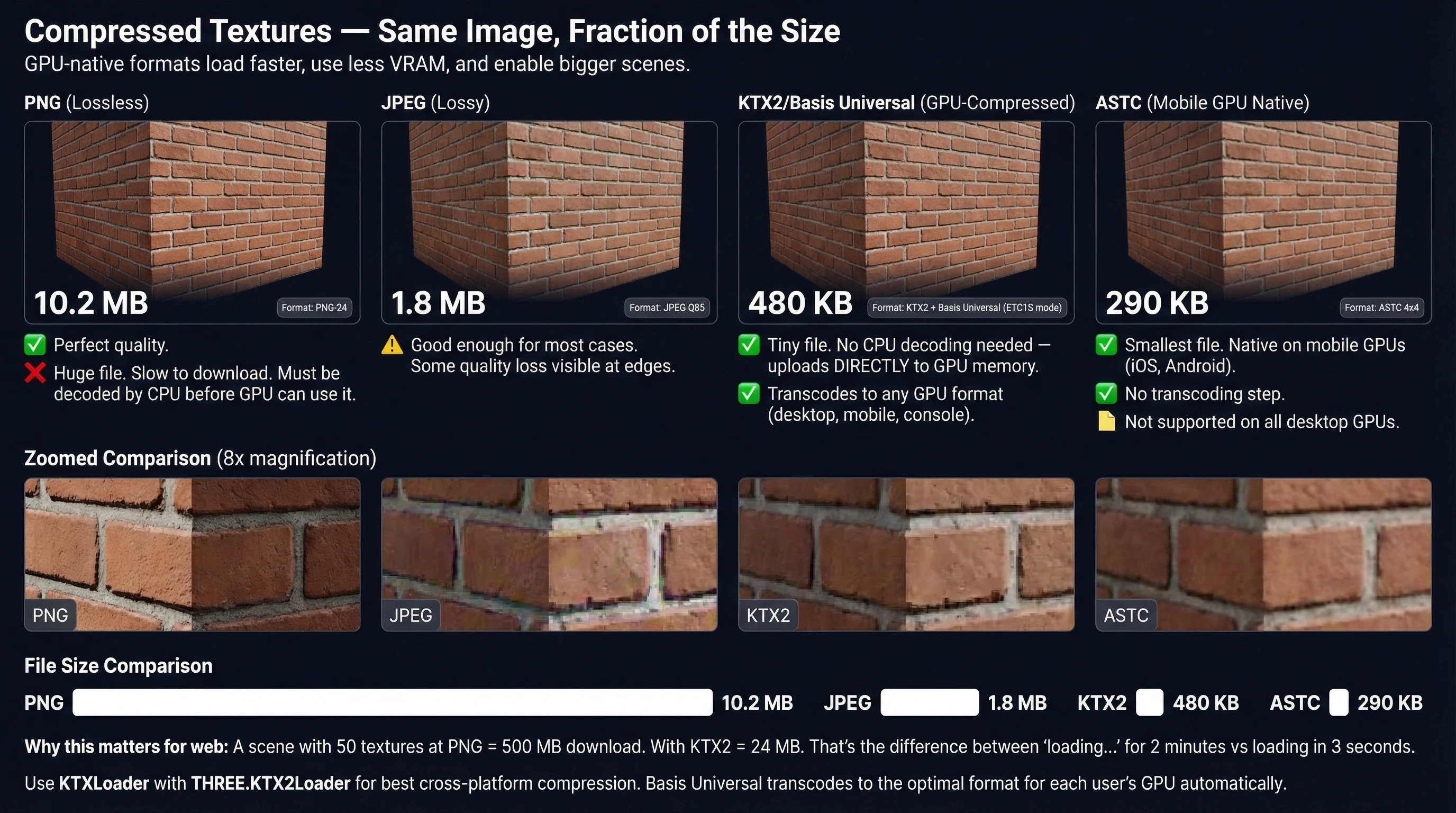

Compressed Textures - KTX2 / Basis
GPU-native compressed formats stay compressed in VRAM - 4–8× less memory than PNG. KTX2 with Basis supercompression is the modern standard: a single .ktx2 file transcodes to the best format per device (DXT/BC for desktop, ETC for Android, ASTC for iOS). Use KTX2Loader + MSDF worker. Critical for mobile performance.
09
Renderer Features
The renderer transforms your scene into pixels. Three.js has WebGLRenderer (the proven standard, works everywhere) and WebGPURenderer (the modern future, compute shaders, better performance). Both share a common abstraction layer so most code runs on either. Key features: shadow maps, environment mapping, tone mapping, anti-aliasing, and render targets for off-screen rendering.

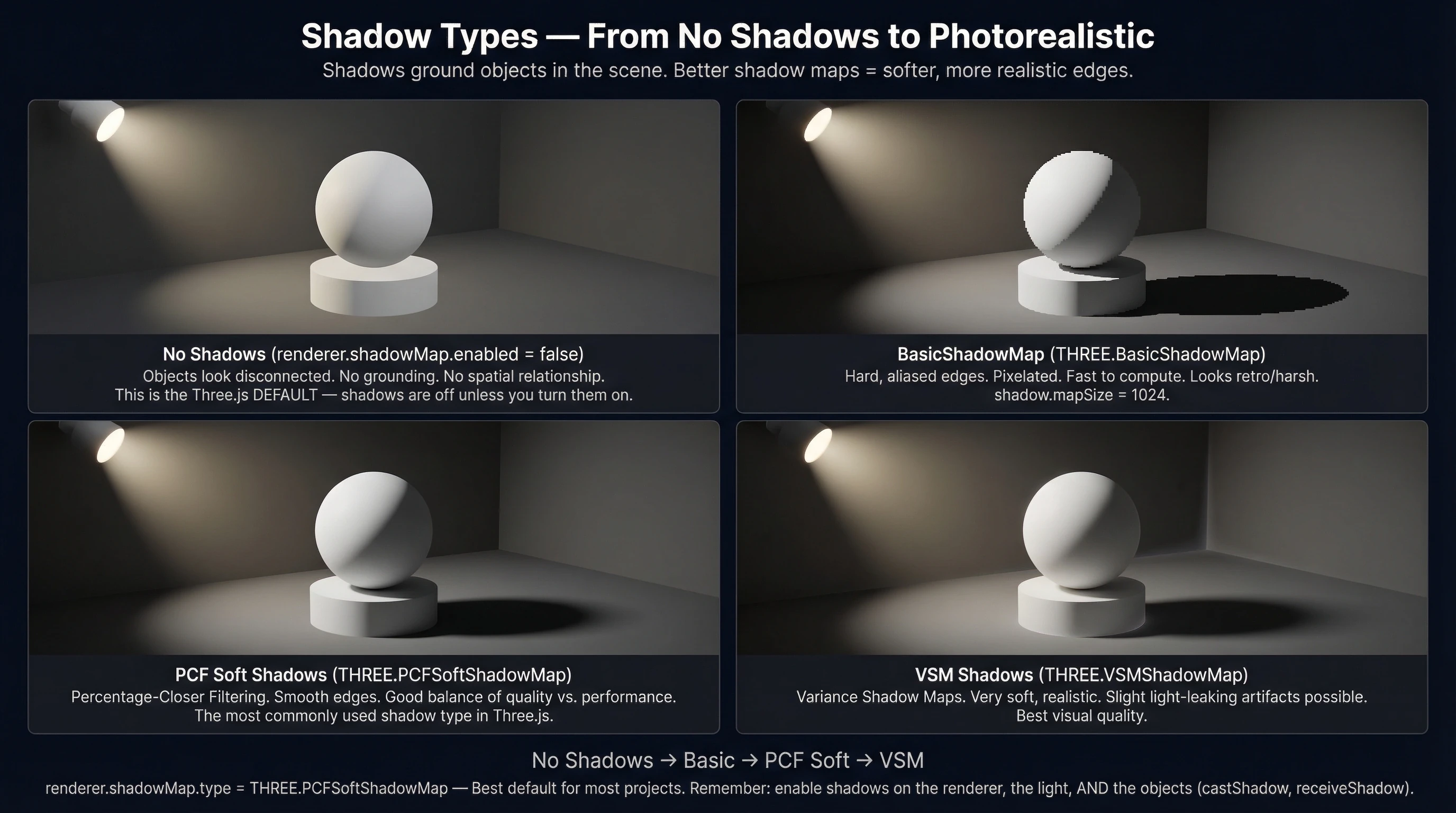

BasicShadowMap - Fastest, hard edges. PCFShadowMap - Percentage-closer filtering, smoother edges. PCFSoftShadowMap - Softer PCF with kernel blur. VSMShadowMap - Variance shadow maps, very soft, no peter-panning artifact, but has light bleeding on transparent objects. Set via renderer.shadowMap.type = THREE.PCFSoftShadowMap.

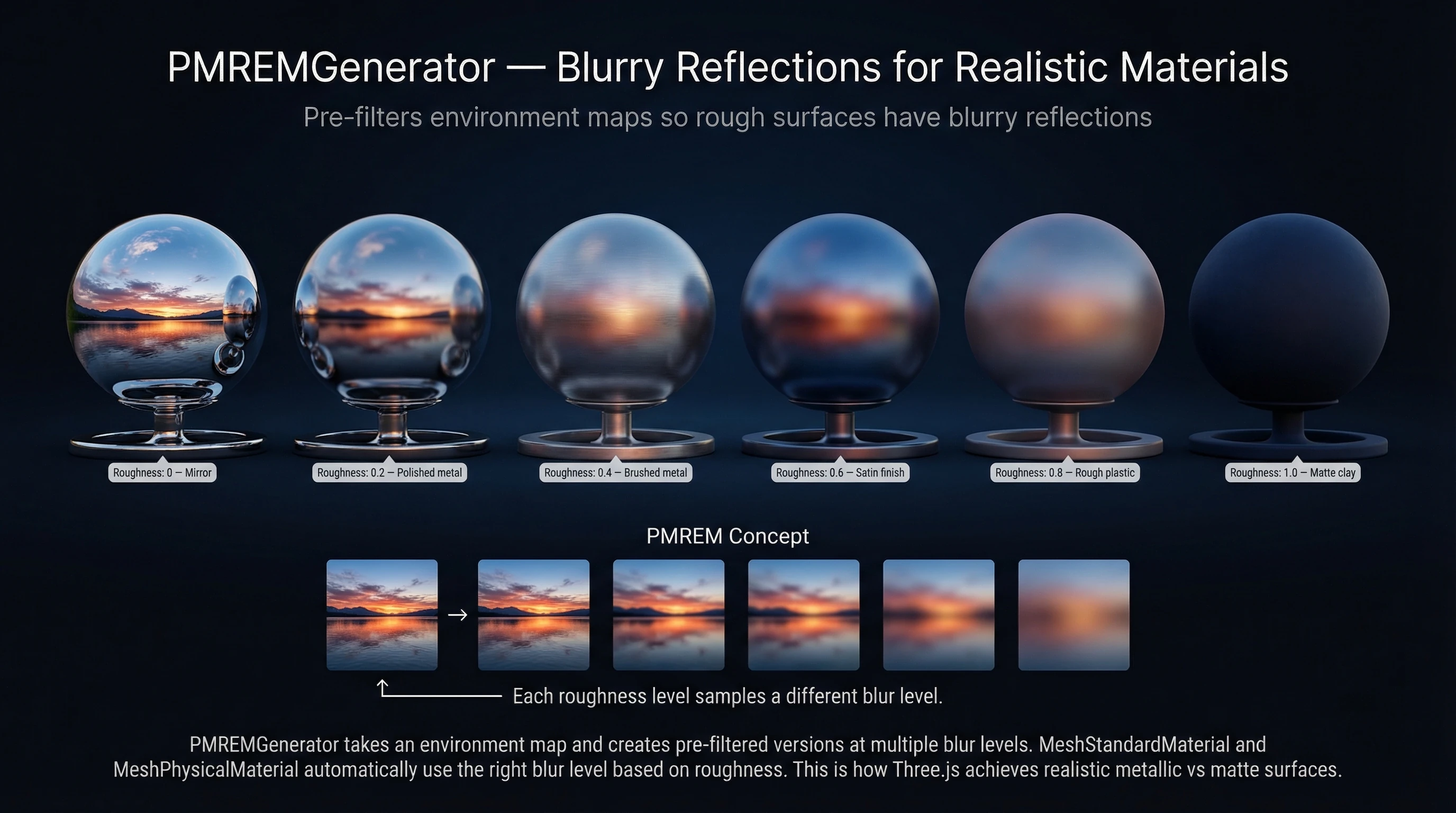

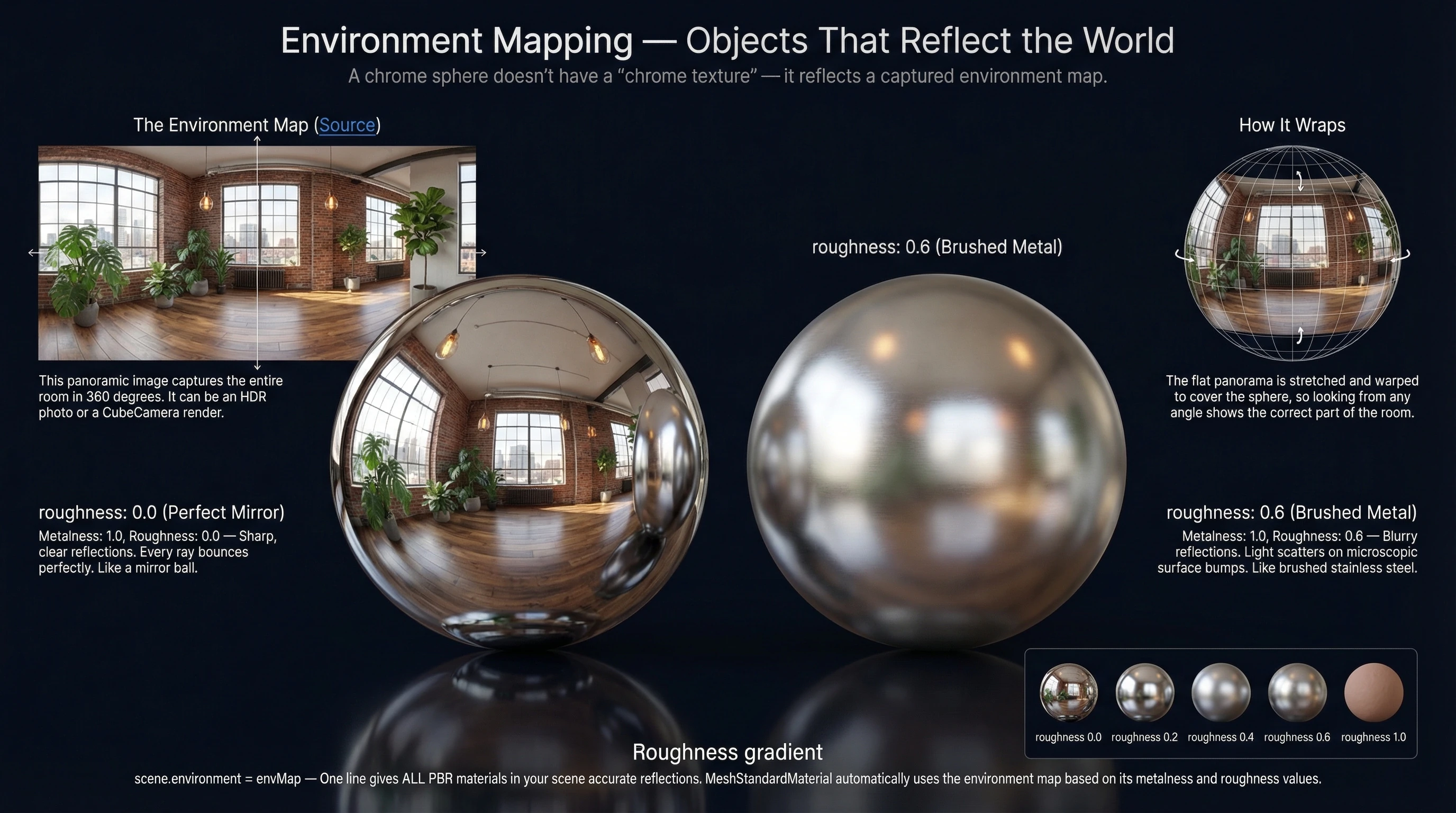

Environment Mapping & IBL
Set scene.environment = pmremTexture to enable image-based lighting for all PBR materials simultaneously. Metal objects reflect the environment, rough objects receive diffuse IBL. envMapIntensity scales the strength. Combine with a visible skybox for complete immersive environments.

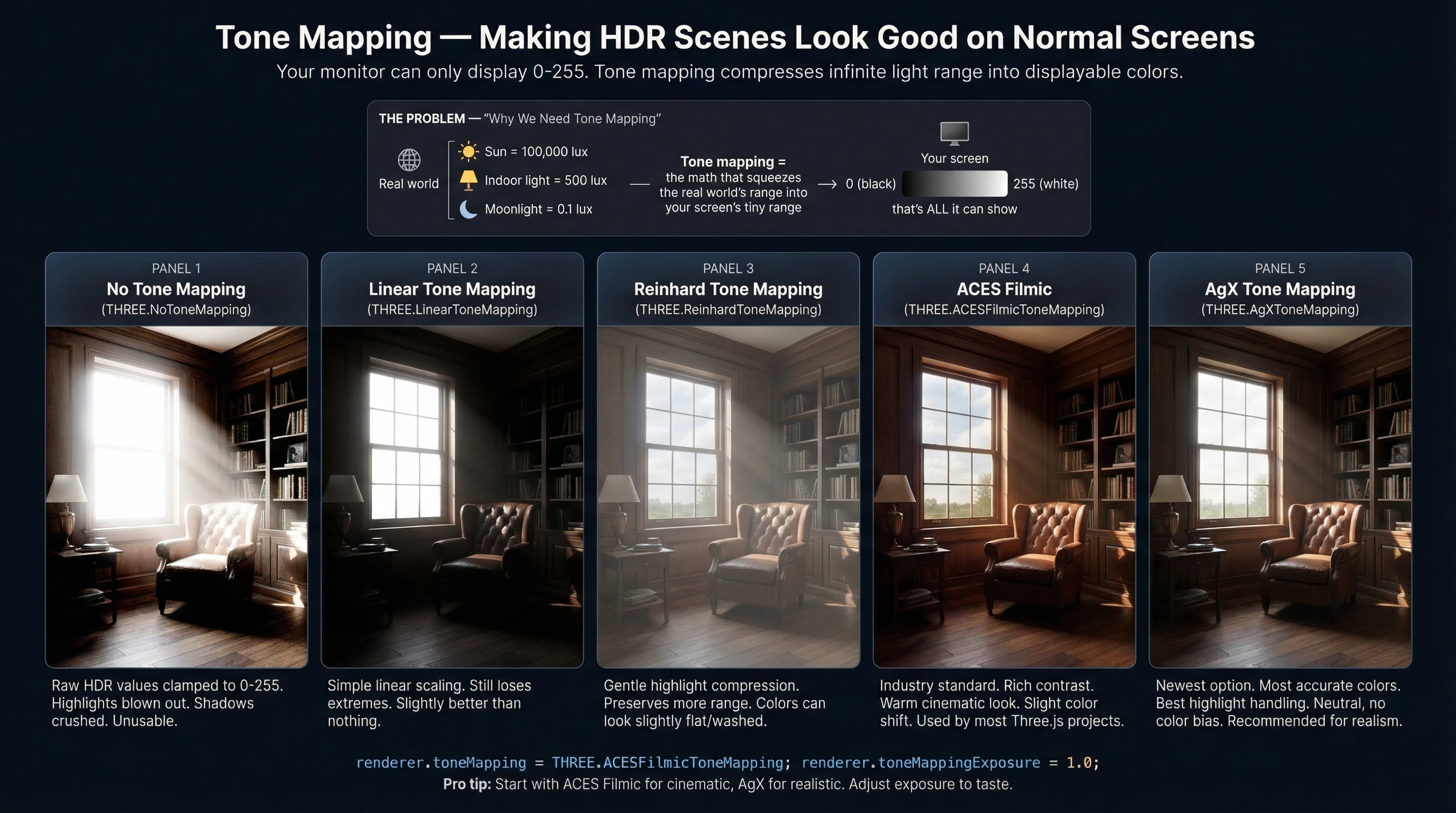

Tone Mapping
HDR rendering produces light values above 1.0. Tone mapping squashes the full HDR range into the 0–1 display range. NoToneMapping clips. ReinhardToneMapping is photographic. ACESFilmicToneMapping gives a cinematic S-curve look (most popular). AgXToneMapping (r158+) is physically accurate with correct hue preservation.
Anti-Aliasing
Built-in MSAA: pass antialias: true to WebGLRenderer. Post-process options: FXAA (fast, slight blur), SMAA (better quality, two-pass). TAA (temporal AA) provides highest quality by accumulating sub-pixel samples over multiple frames - only works on static or slow-moving scenes.

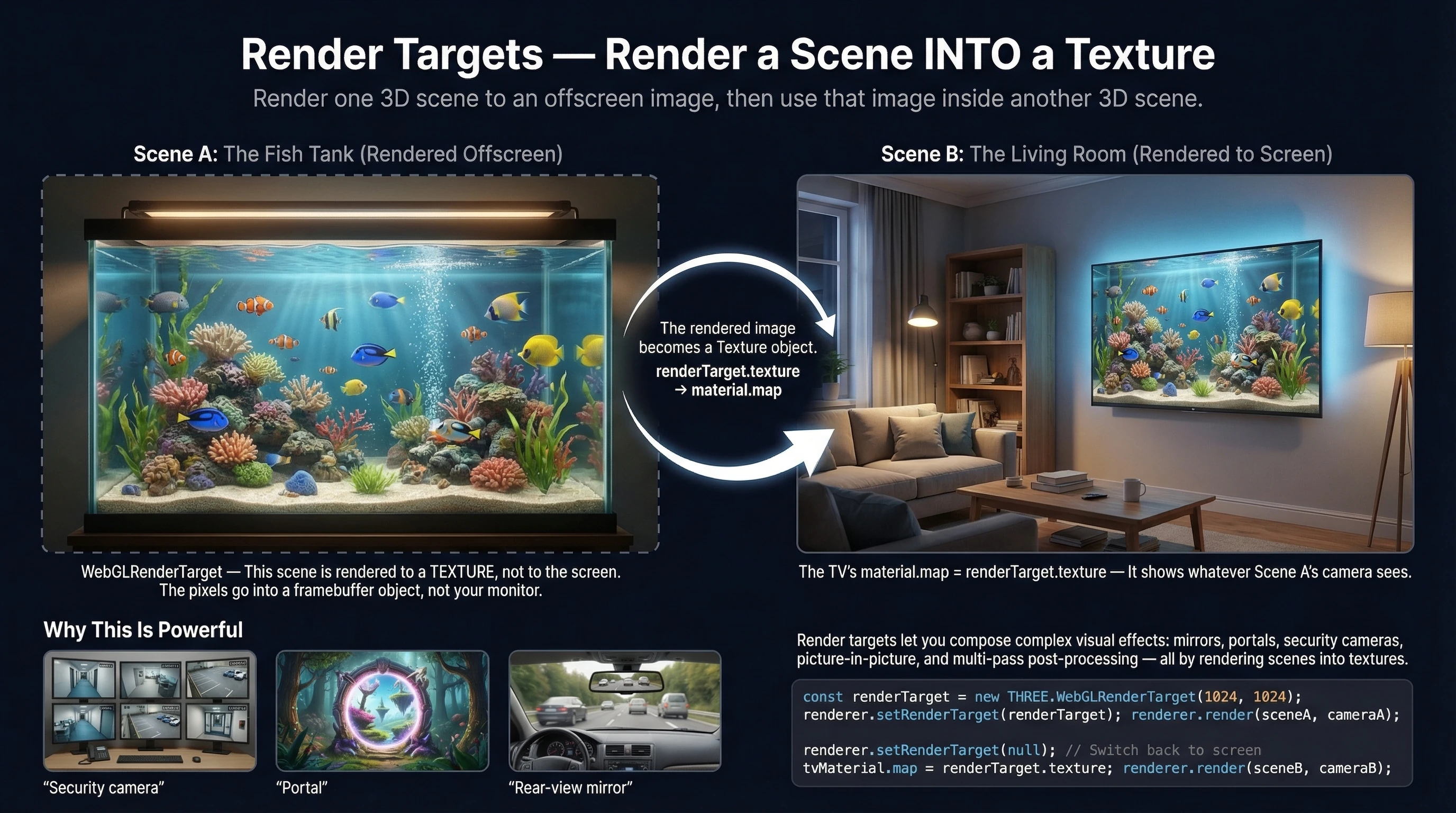

Render Targets - Off-screen Rendering
WebGLRenderTarget redirects render output to a texture instead of the screen. That texture can then be applied to a 3D surface (a TV showing another camera), used as input to post-processing, or read back to CPU. The basis for all multi-pass rendering techniques.

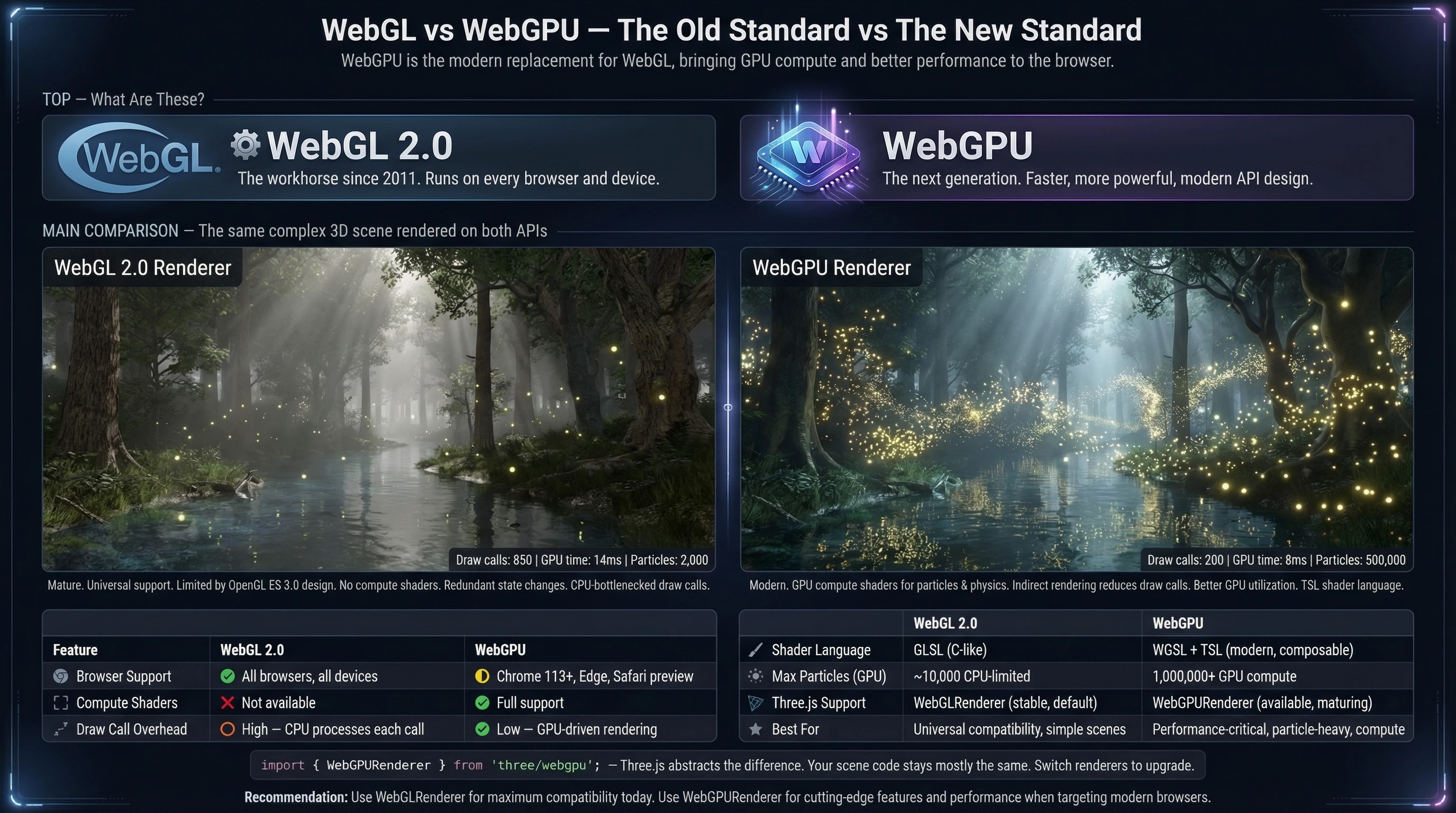

WebGL vs WebGPU
WebGL: Based on OpenGL ES 2.0/3.0. ~98% browser support. Proven, stable. Limited to graphics pipeline. WebGPU: Modern explicit GPU API. Compute shaders, better multi-threading, lower driver overhead. ~70% browser support (2024). Three.js wraps both behind the same API - switch with import WebGPURenderer from 'three/webgpu'.

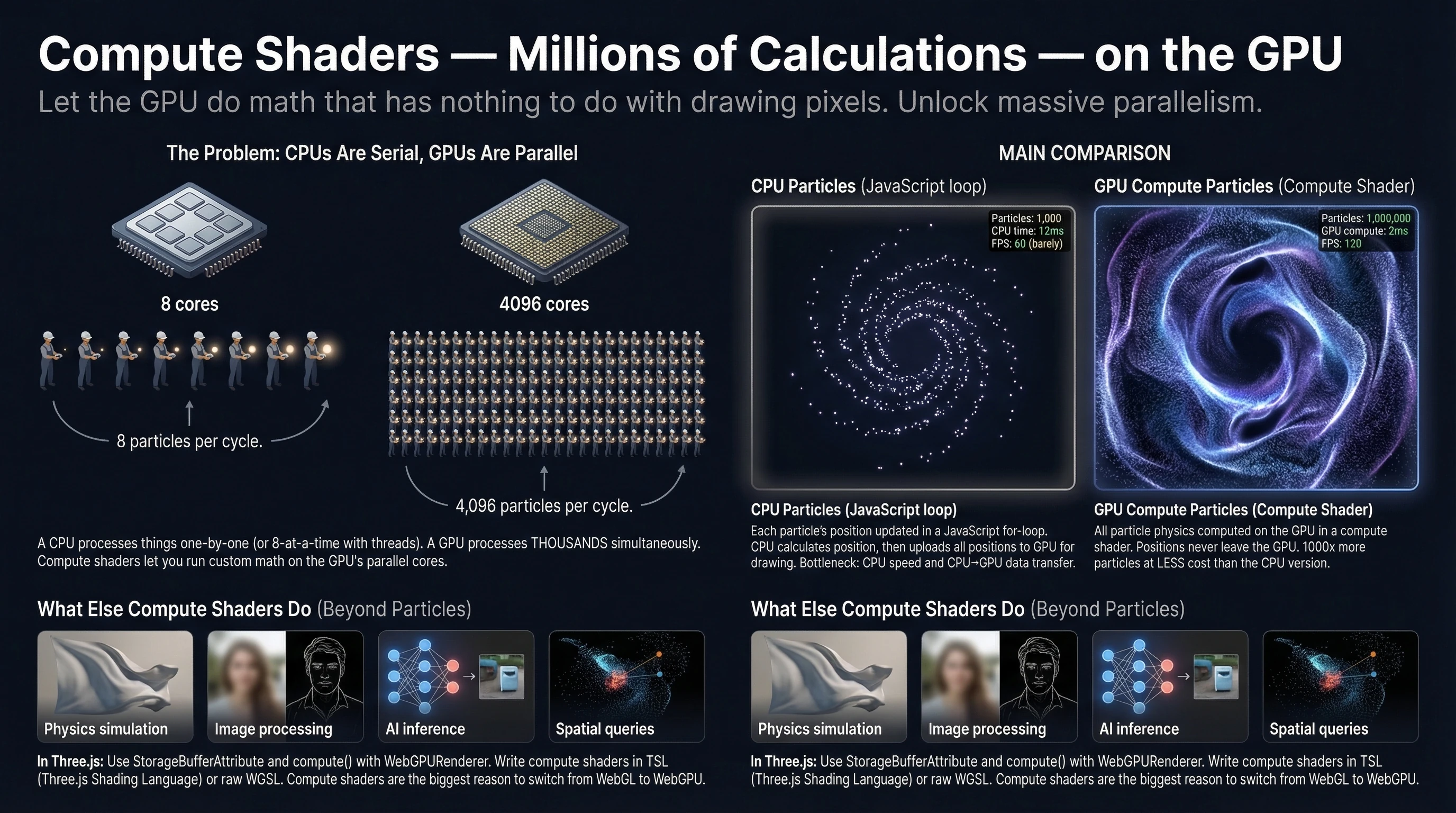

Compute Shaders (WebGPU only)
GPU programs running outside the graphics pipeline. Simulate millions of particles, fluid dynamics, cloth, or crowds entirely on the GPU - reading and writing storage buffers. Available via WebGPURenderer with TSL's compute() function. Orders of magnitude faster than CPU for parallelisable problems.

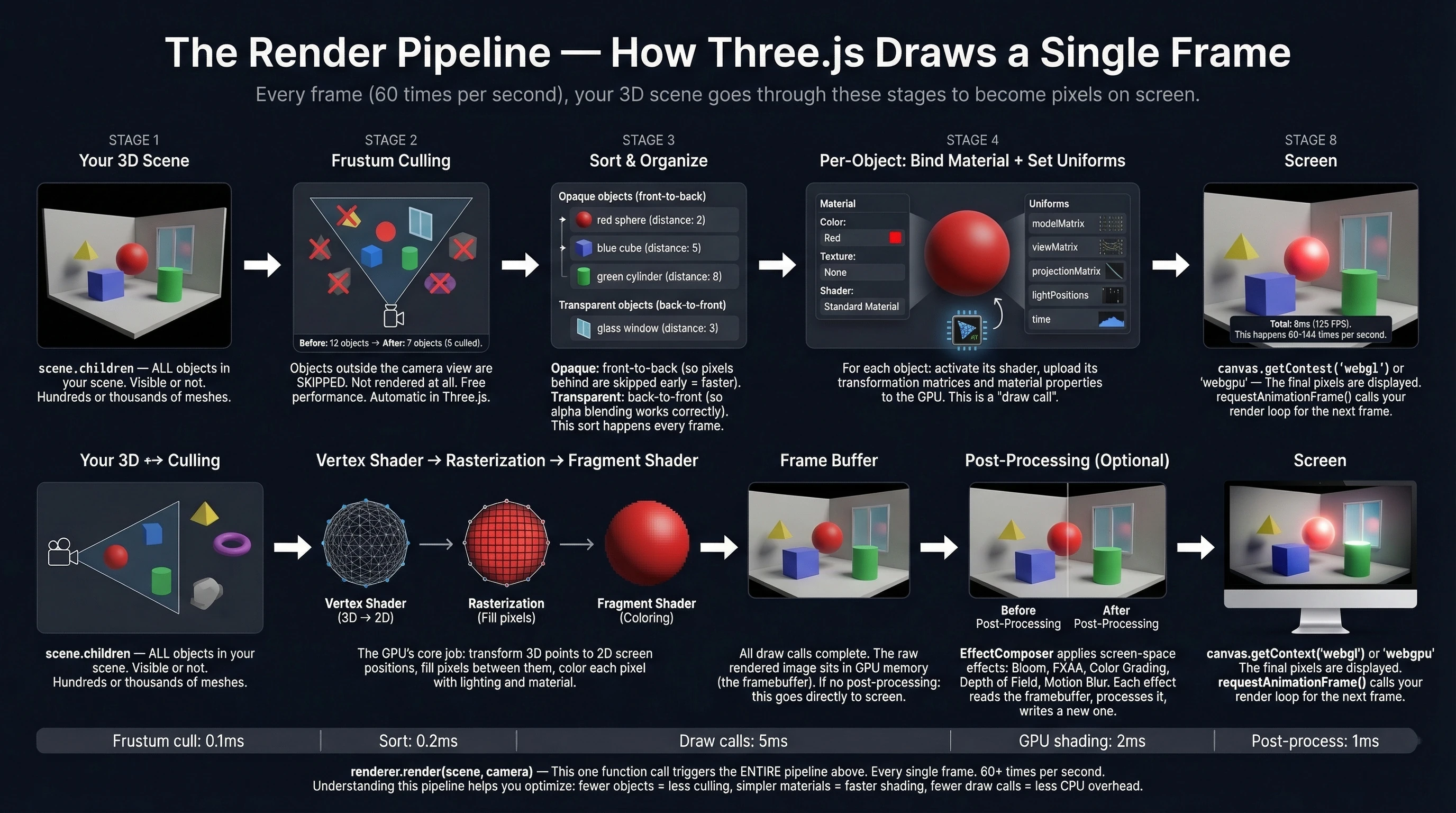

Render Pipeline - Frame by Frame
Scene graph → frustum culling → sort render list by material (opaque first, transparent last, by z-depth) → set render state → GPU: vertex shader (transforms positions to clip space) → rasterisation (converts triangles to fragments) → fragment shader (computes pixel colour) → framebuffer → screen. Understanding this helps diagnose performance and visual issues.
10
Post-Processing Effects

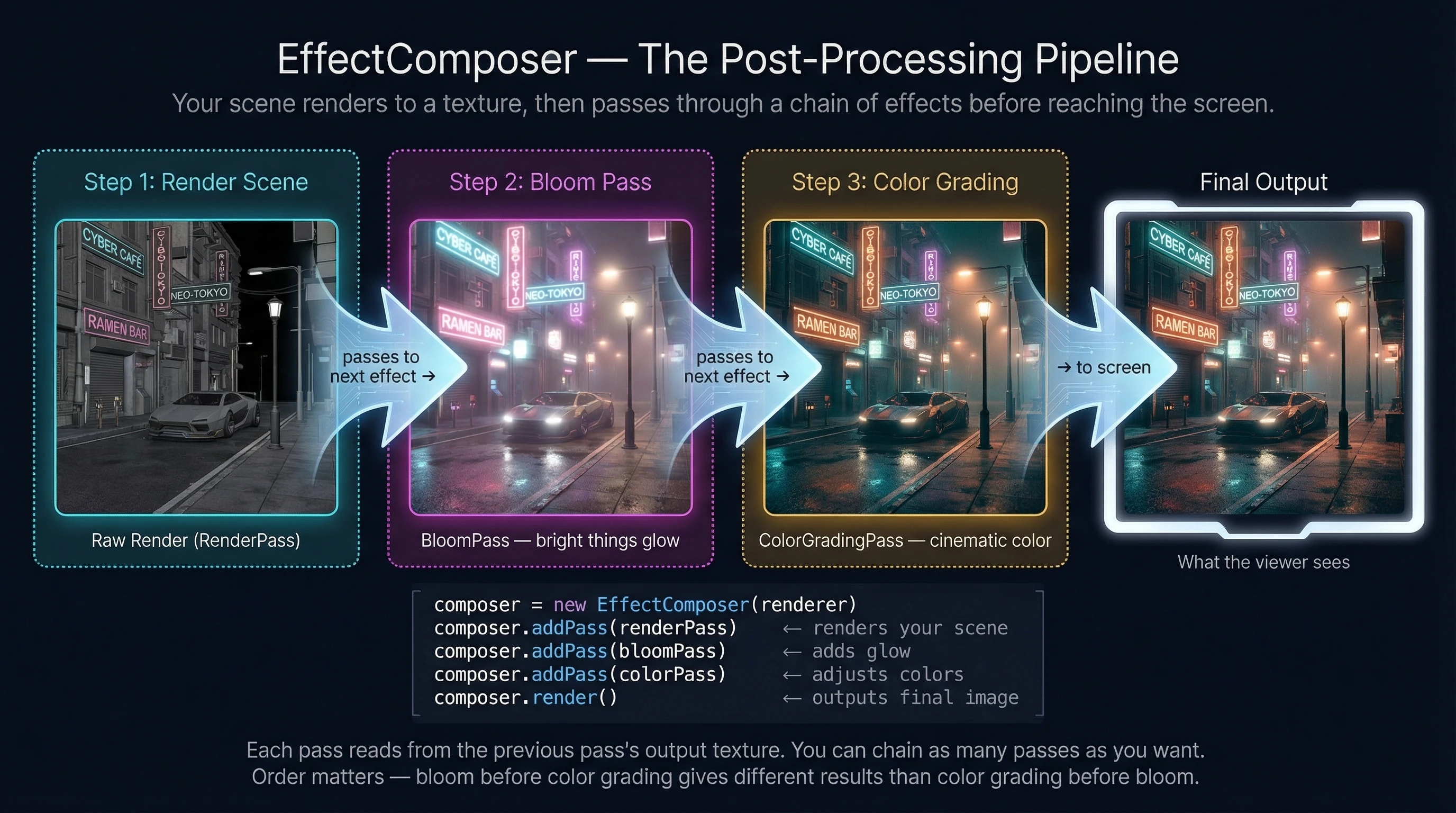

Post-processing applies screen-space effects after the scene is rendered to a texture. EffectComposer chains passes together - the output of one feeds into the next. Three.js ships 20+ built-in passes and you can write custom fullscreen shader passes. The difference between a raw render and a cinematic scene is almost entirely post-processing.
RenderPass renders the scene to a texture. Each subsequent pass reads from the previous pass's texture, applies an effect, and writes to the next. OutputPass or RenderPixelatedPass writes to screen. The order matters - bloom after SSAO, before colour grading.

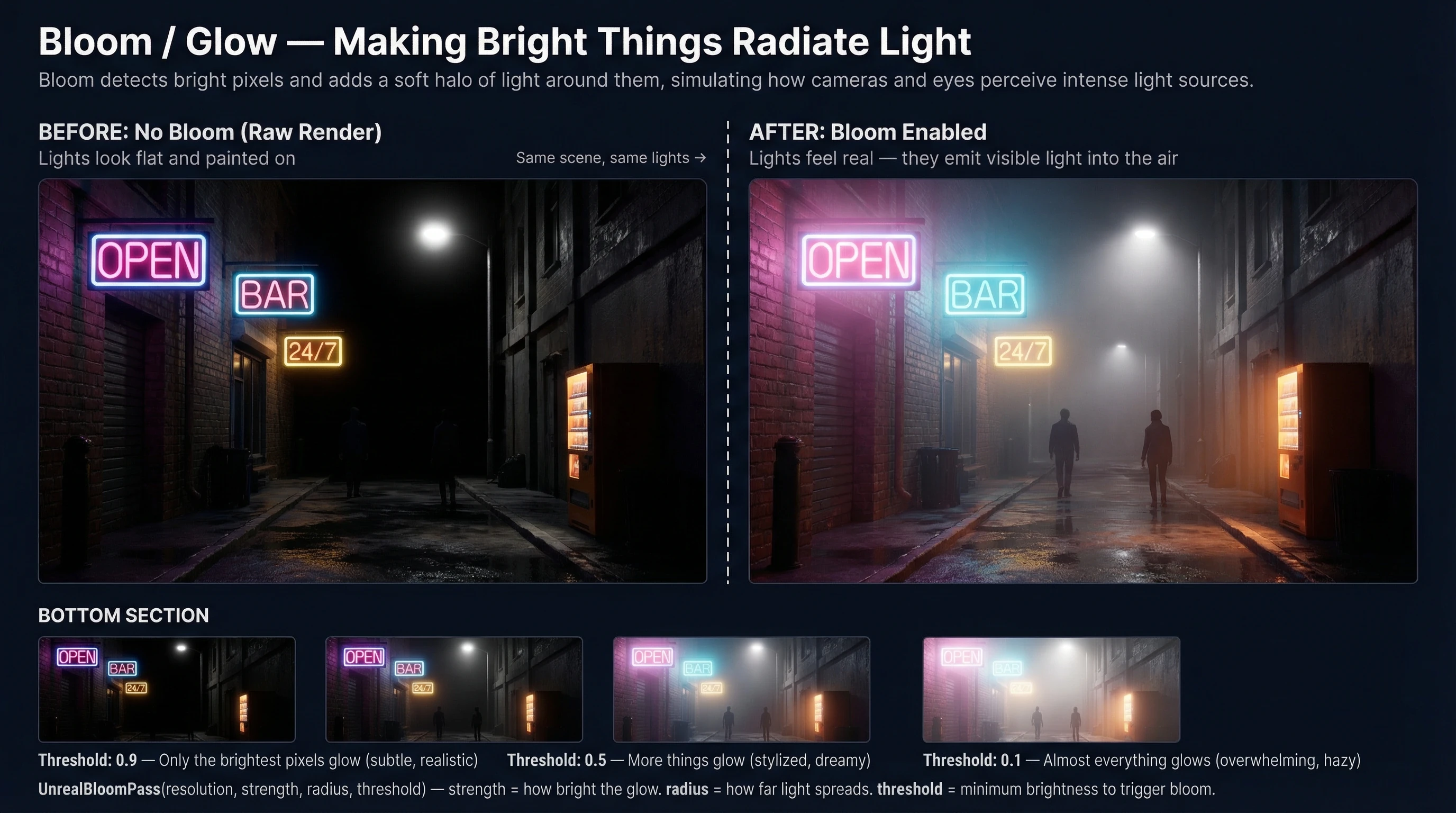

Bright areas bleed glow into surrounding pixels, simulating the way intense light overloads a camera lens or your eyes. Adjust threshold (minimum brightness to bloom), strength (intensity), radius (spread distance). Selective bloom: use two scenes - one with only emissive objects, run bloom on that, composite back.
SSAO - Screen-Space Ambient Occlusion
Darkens concave areas - crevices, corners, where surfaces meet - to simulate ambient light being blocked. Adds ground and weight to objects. Computed entirely from the depth buffer in screen space, so it's cheap and doesn't require ray-tracing. SAOPass in Three.js examples.

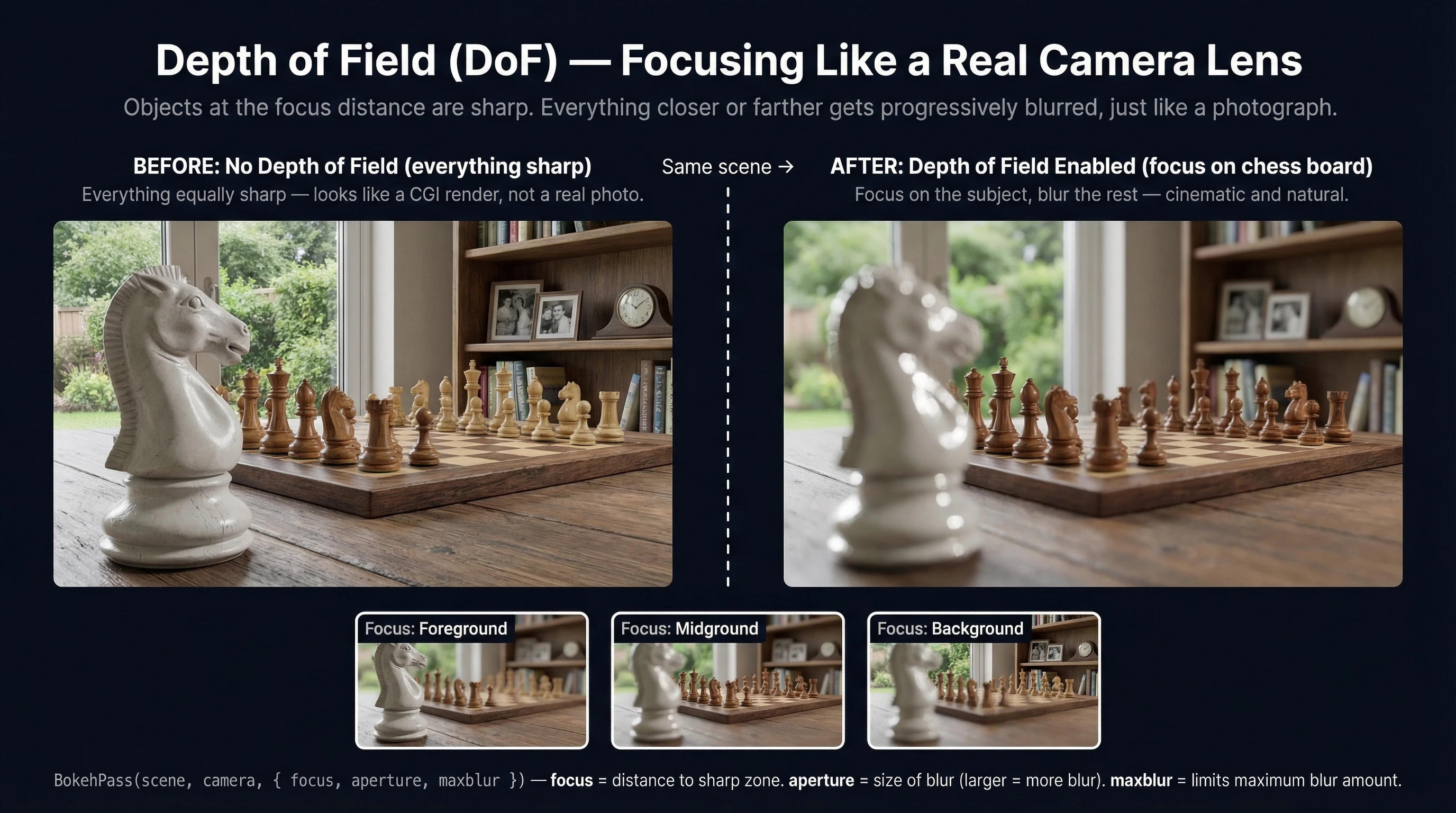

Depth of Field (Bokeh)
Objects outside the focal plane blur with characteristic disc-shaped bokeh, mimicking a real camera lens with a narrow depth of field. focus sets focal distance, aperture controls blur amount, maxblur clamps the maximum. Draws the viewer's eye to the focal point.

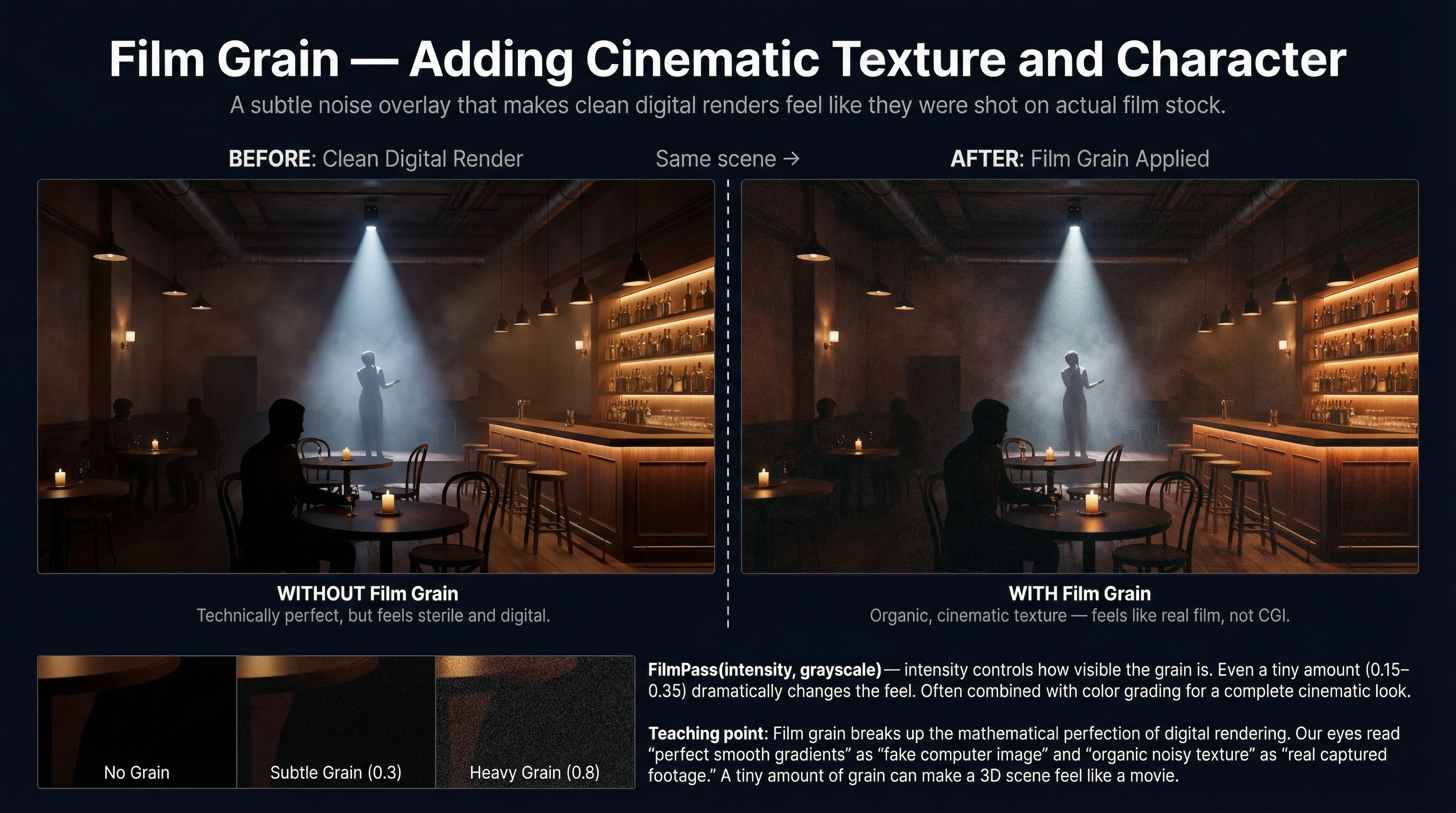

Film Grain & Noise
Adds time-varying noise to every pixel, simulating photographic film grain or sensor noise. Softens the overly-clean look of CGI and adds cinematic character. FilmPass in Three.js adds grain + optional scanlines. Animated per-frame so it looks organic, not like a static texture overlay.

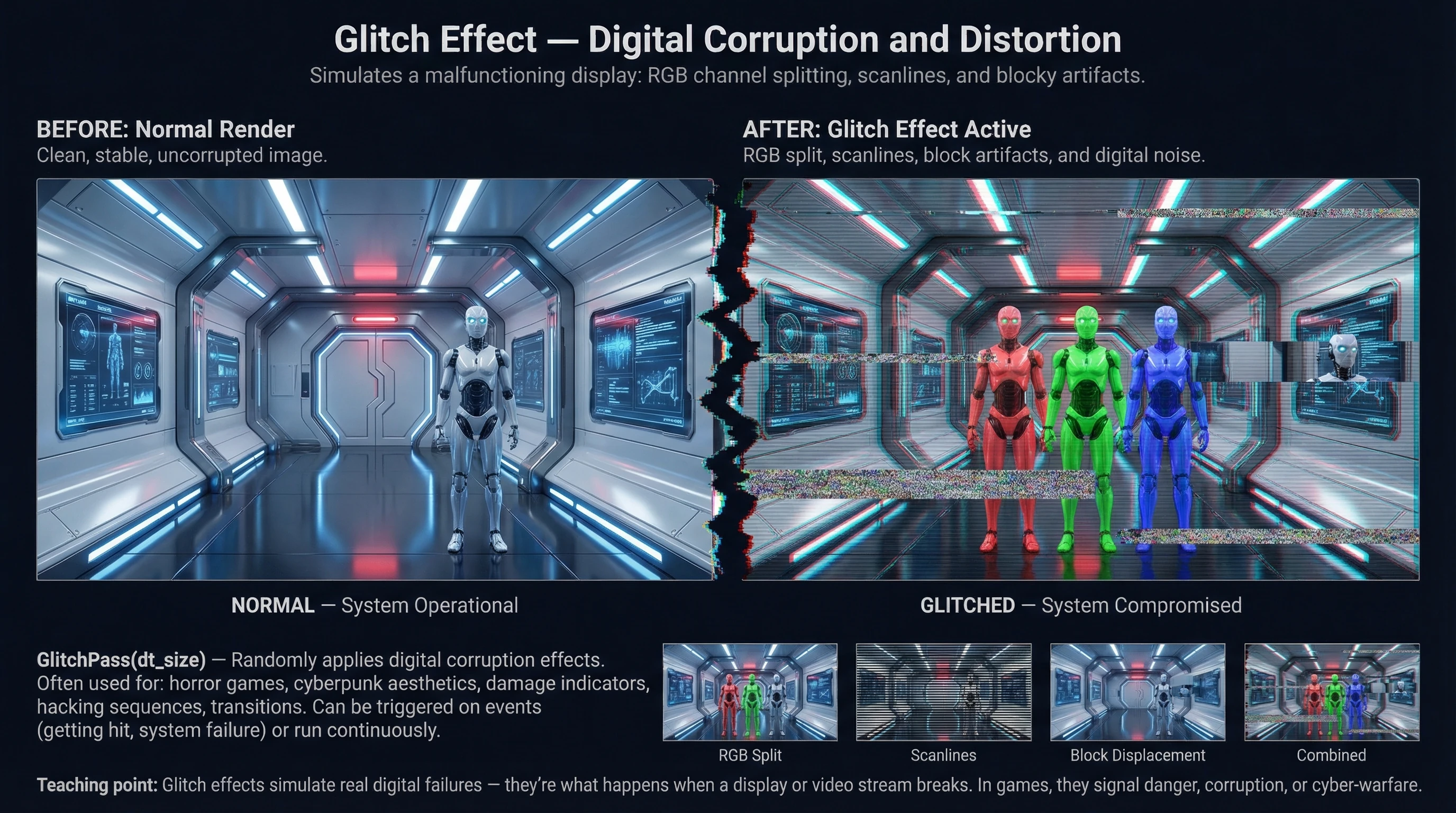

Glitch Effect
Digital corruption: random horizontal band shifts, RGB channel separation, noise blocks. GlitchPass triggers random glitch bursts at goWild intensity, or stays subtle at low settings. Perfect for cyberpunk, horror, hack/error UI moments, and sci-fi transitions.

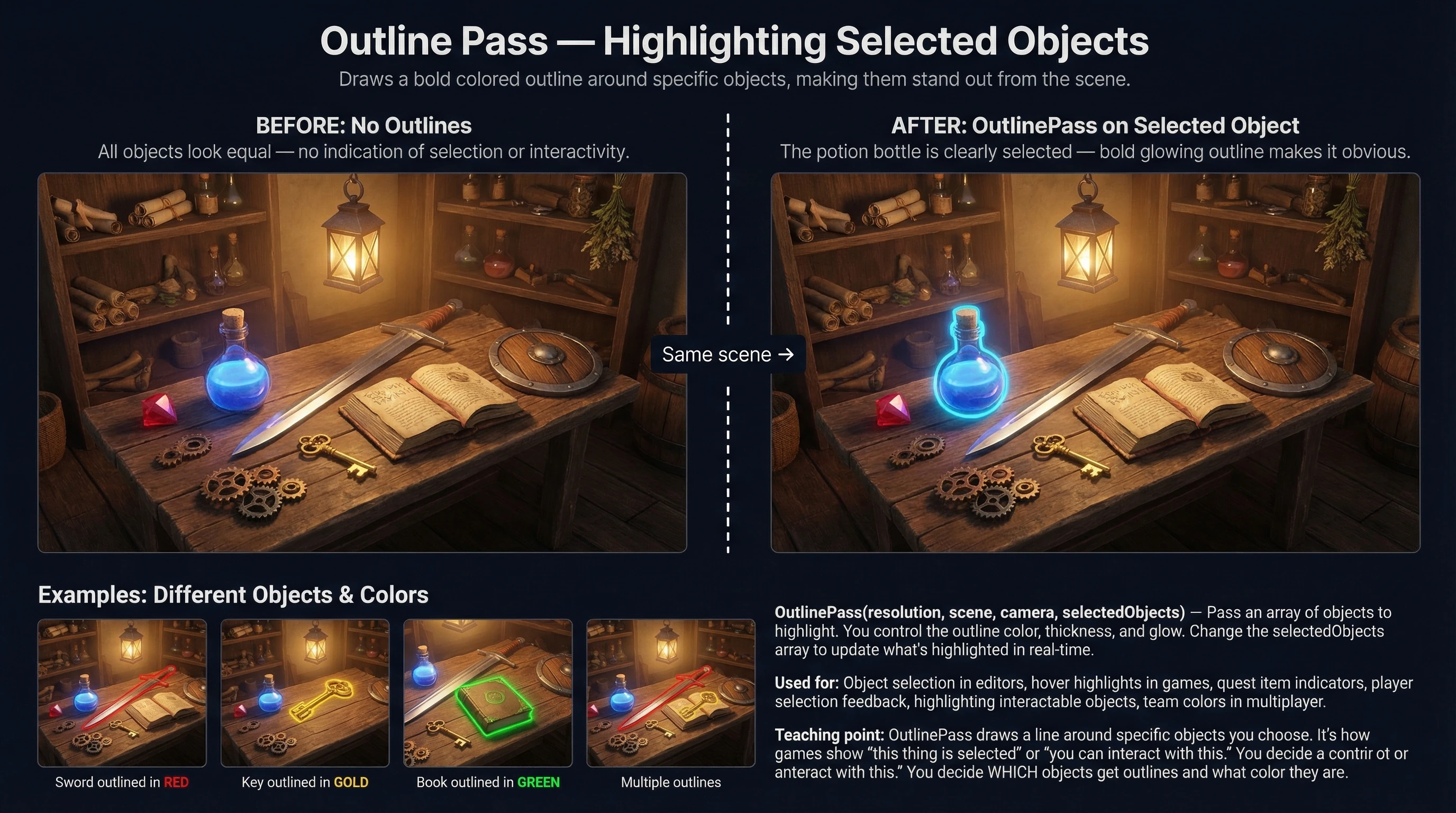

Outline - Selection Highlight
OutlinePass renders selected objects with a coloured edge glow. Objects added to selectedObjects array get outlined. Control colour, thickness (edgeThickness) and glow (edgeStrength). Essential for game selection UIs, hover highlighting, and emphasising interactive objects.

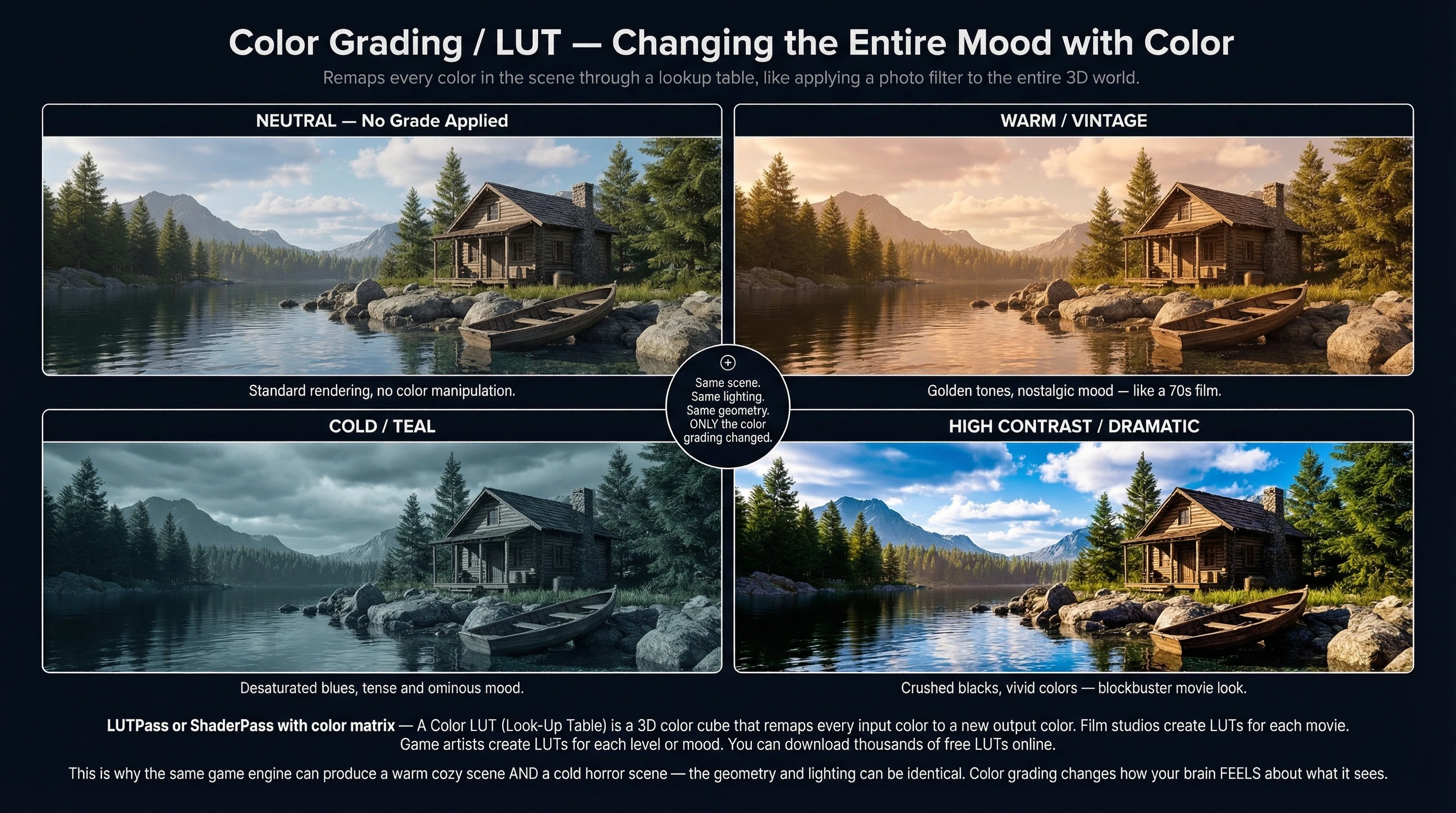

Color Grading / LUT
A 3D Look-Up Table (LUT) remaps the output colours of the entire frame - like an Instagram filter but for your 3D scene. LUTPass loads a .cube or .png LUT file. Transform any scene: warm cinematic orange-teal, cold horror blue, vintage sepia, crushed blacks. Industry standard.

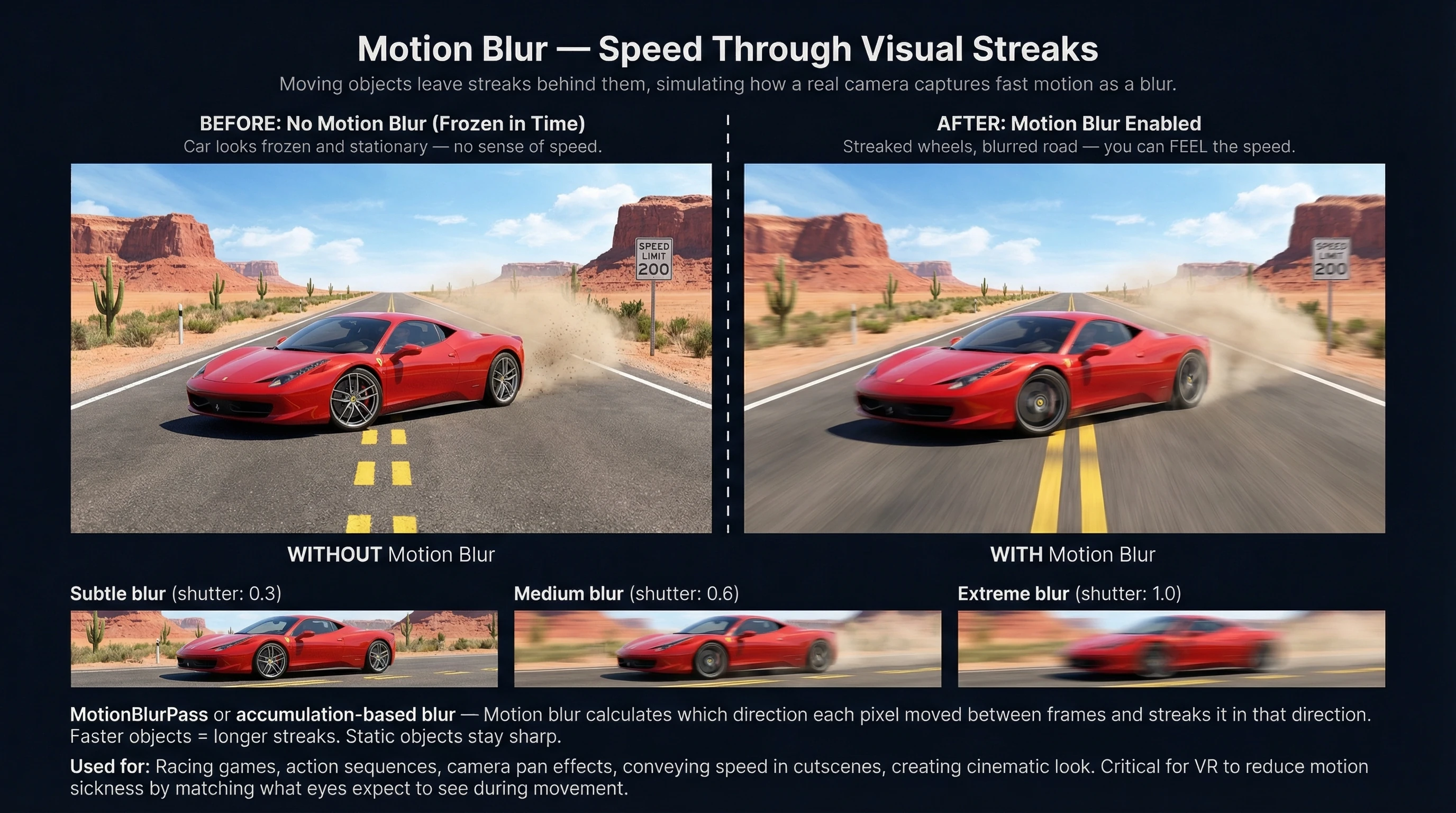

Motion Blur
Blurs fast-moving objects along their trajectory, as a real camera shutter would capture during exposure. Gives movement weight, speed and physicality. Can be per-object (accumulate velocity vectors) or full-screen camera motion blur. Makes action scenes feel kinetic.

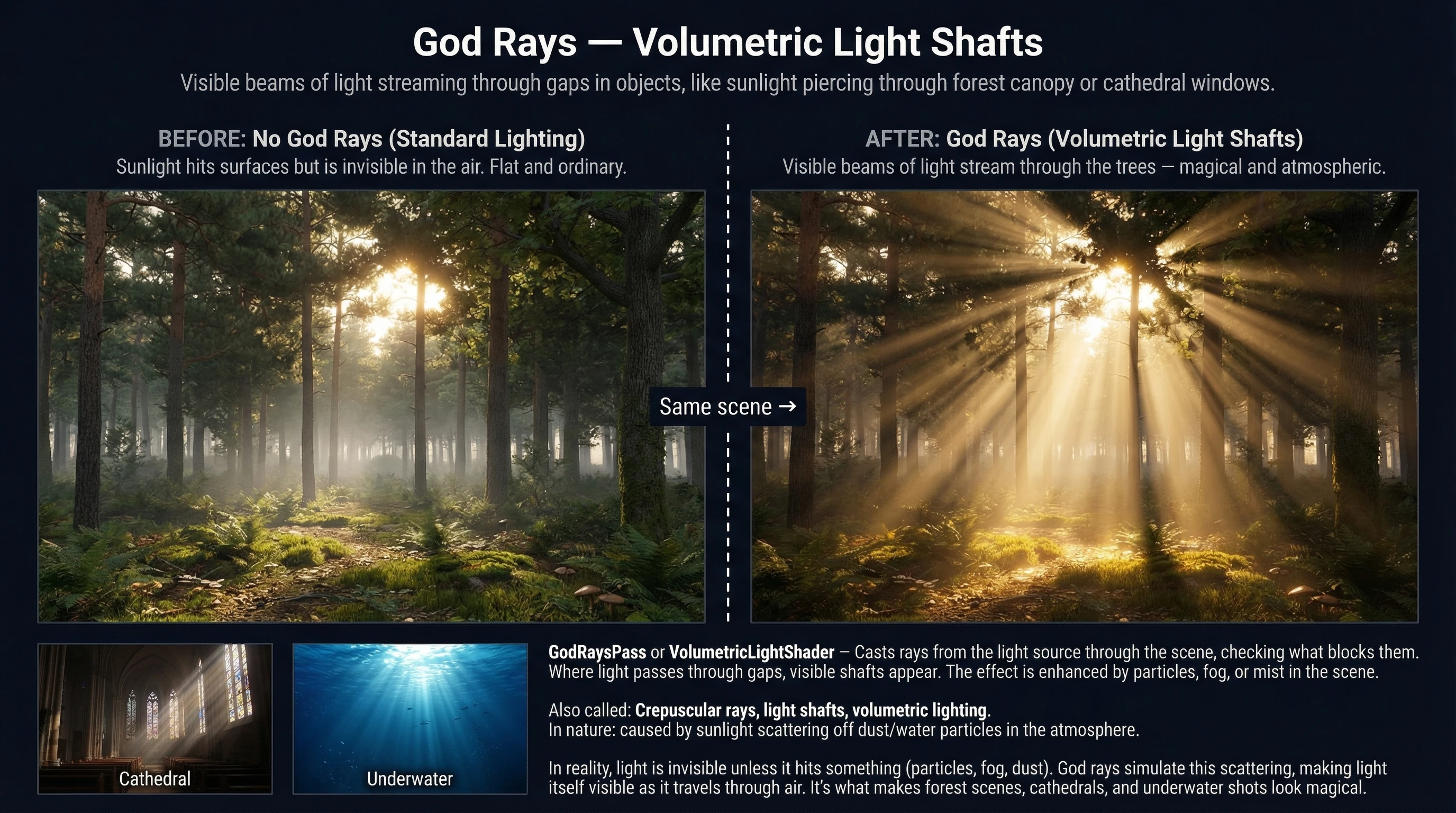

God Rays - Volumetric Light Shafts
Visible shafts of light when a bright source is partially occluded - sun through clouds, lamp through fog. GodraysPass renders the scene silhouette from the light position, then applies radial blur outward. The result: volumetric-looking light without actual volumetric simulation.

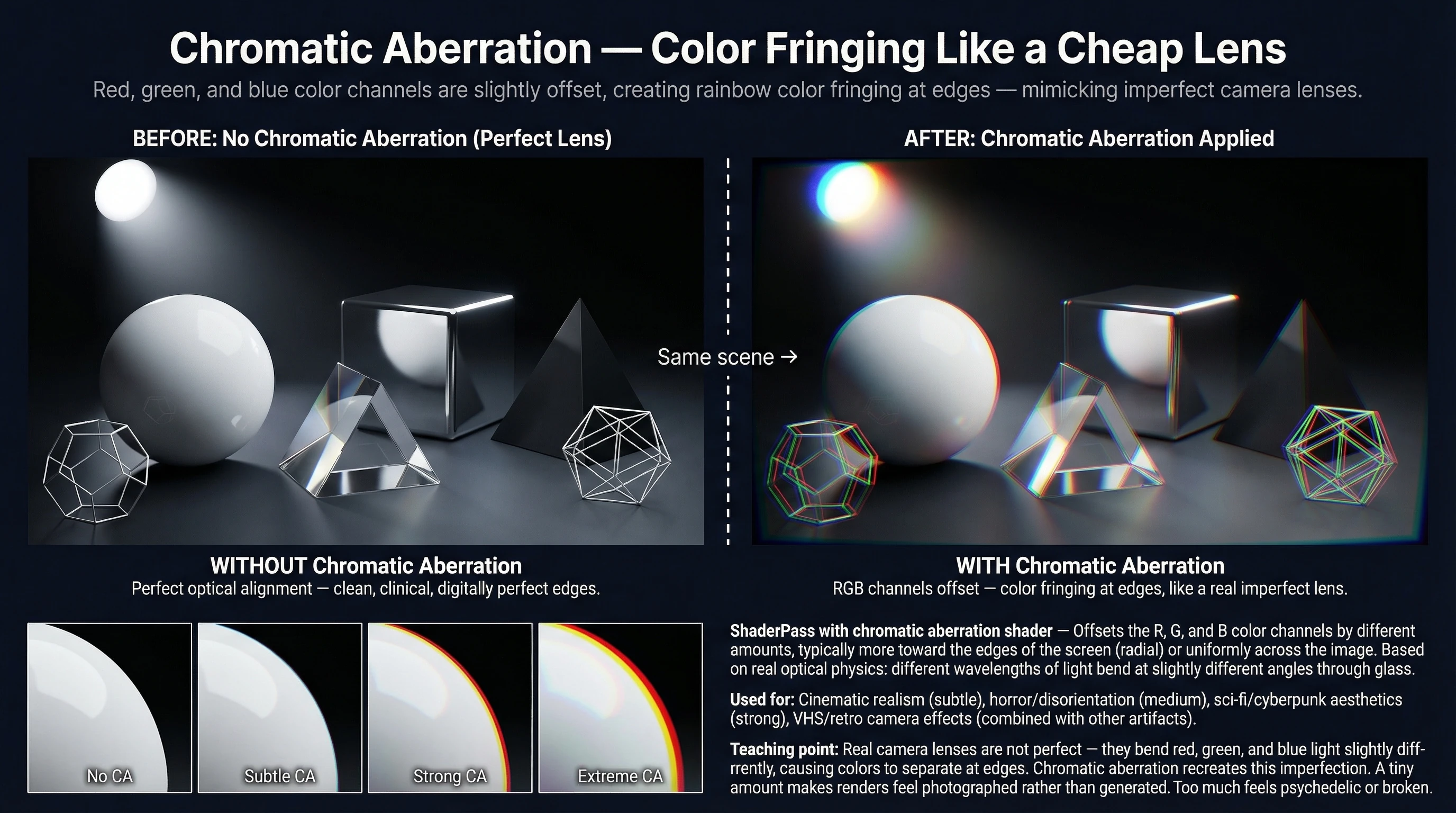

Chromatic Aberration
Offsets the R, G and B colour channels by slightly different amounts in screen space, creating colour fringing at high-contrast edges. Mimics cheap, damaged or fisheye camera lenses. A staple of lo-fi, retro, horror and vaporwave aesthetics. Subtle amounts add believable lens character.

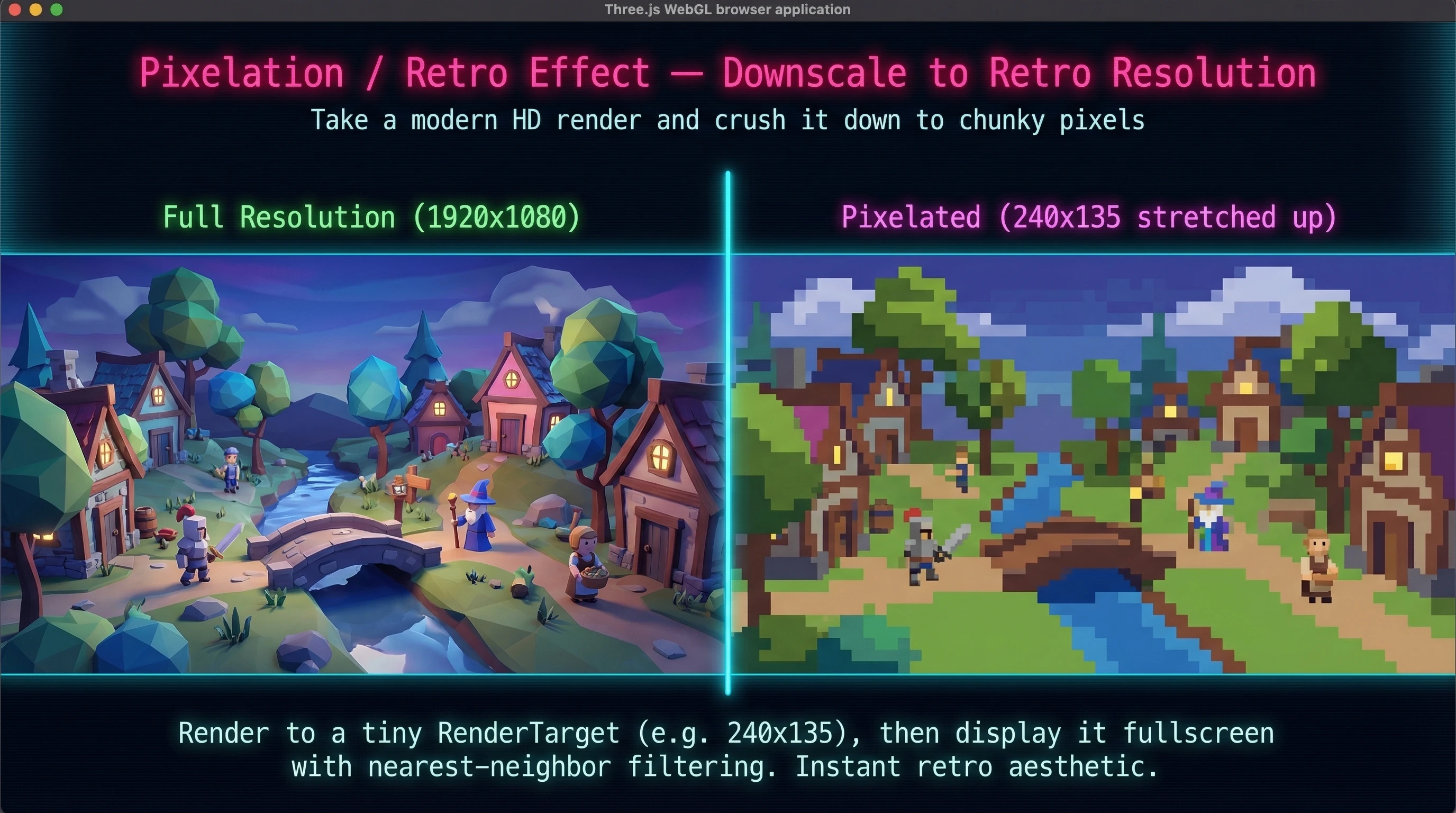

Pixel / Retro Effect
Renders the scene at a low resolution (e.g. 320×240) then upscales with nearest-neighbour filtering. The result looks like an old video game - blocky pixels, visible colour banding. RenderPixelatedPass in Three.js. Combine with a dithering shader and limited colour palette for a full Game Boy or NES aesthetic.
11
Controls
Controls translate user input (mouse, keyboard, touch, gamepad) into camera or object movement. Three.js ships 8+ control types in the addons (jsm/controls/). The right choice depends entirely on the use case - don't use OrbitControls for an FPS game, don't use PointerLockControls for a 3D product viewer.

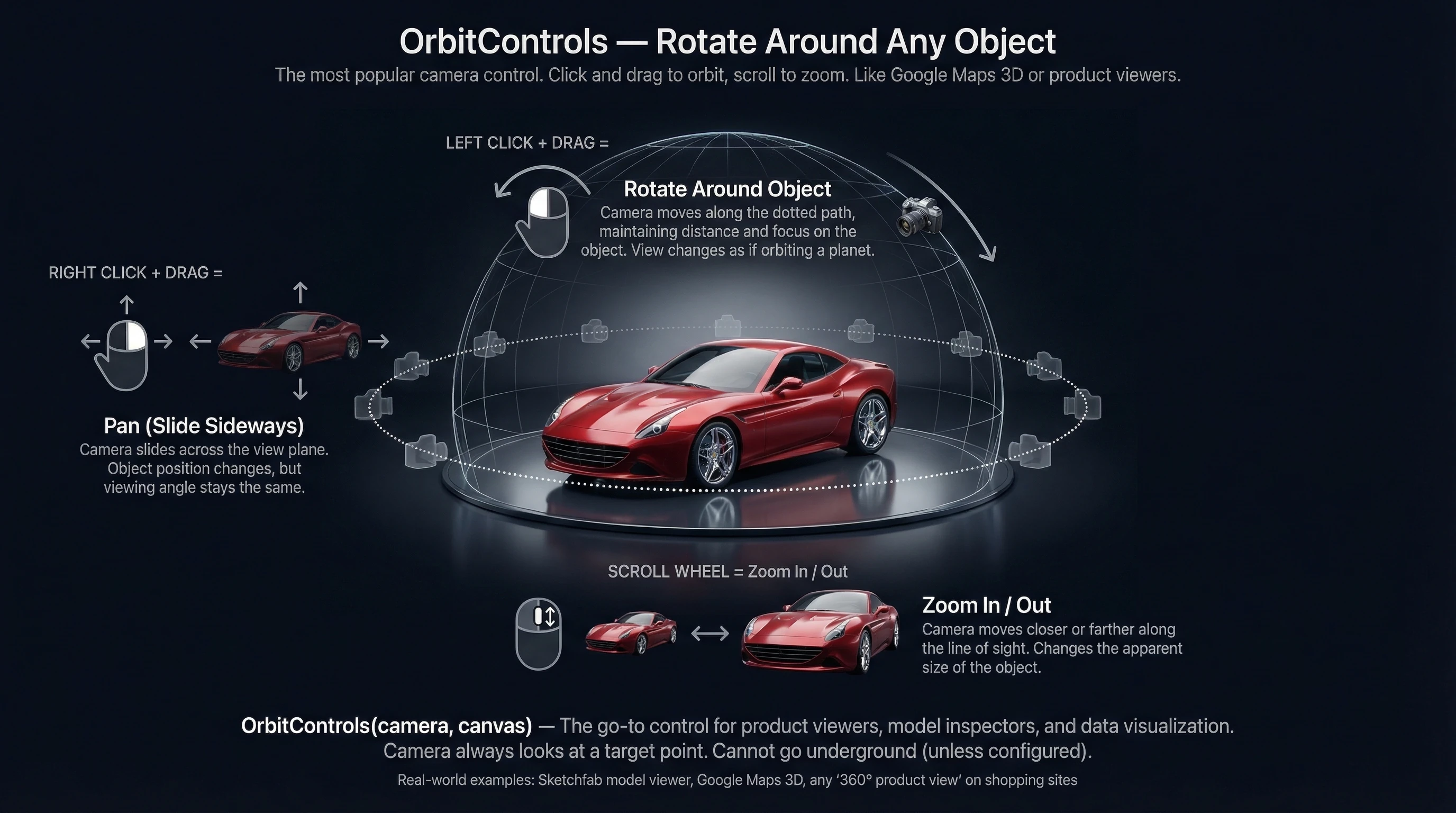

The default for 3D model viewers and product configurators. Left-drag orbits, right-drag pans, scroll zooms. Set target to the point the camera orbits around. enableDamping=true adds smooth deceleration. autoRotate for hands-free spinning displays.

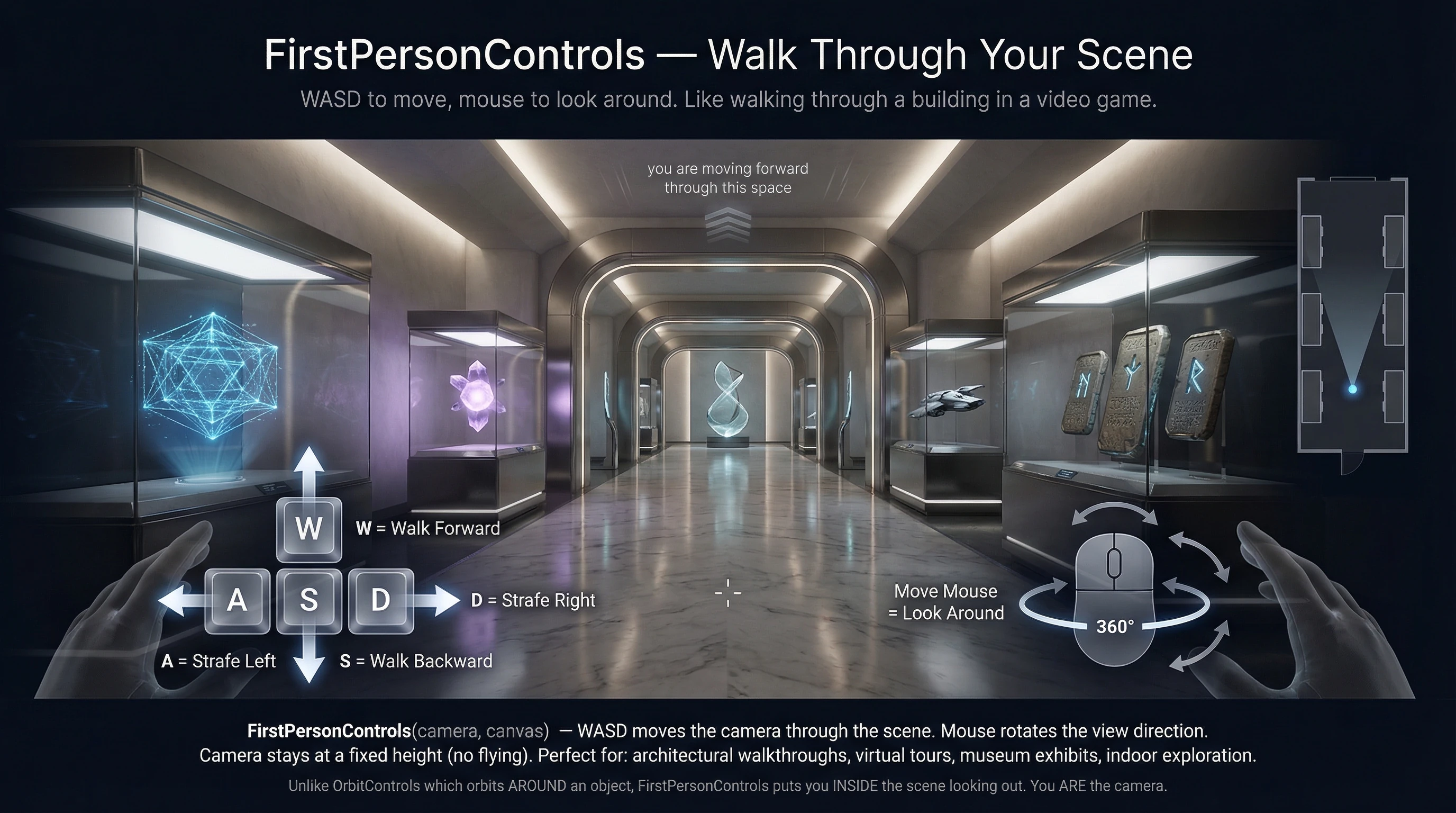

FirstPersonControls - WASD + Mouse Look
WASD movement through the scene, mouse movement rotates the view. Camera can move through the scene freely (no collision). Note: PointerLockControls is preferred for games as it locks/hides the cursor. FirstPersonControls is better for architectural walk-throughs where you still want a visible cursor.

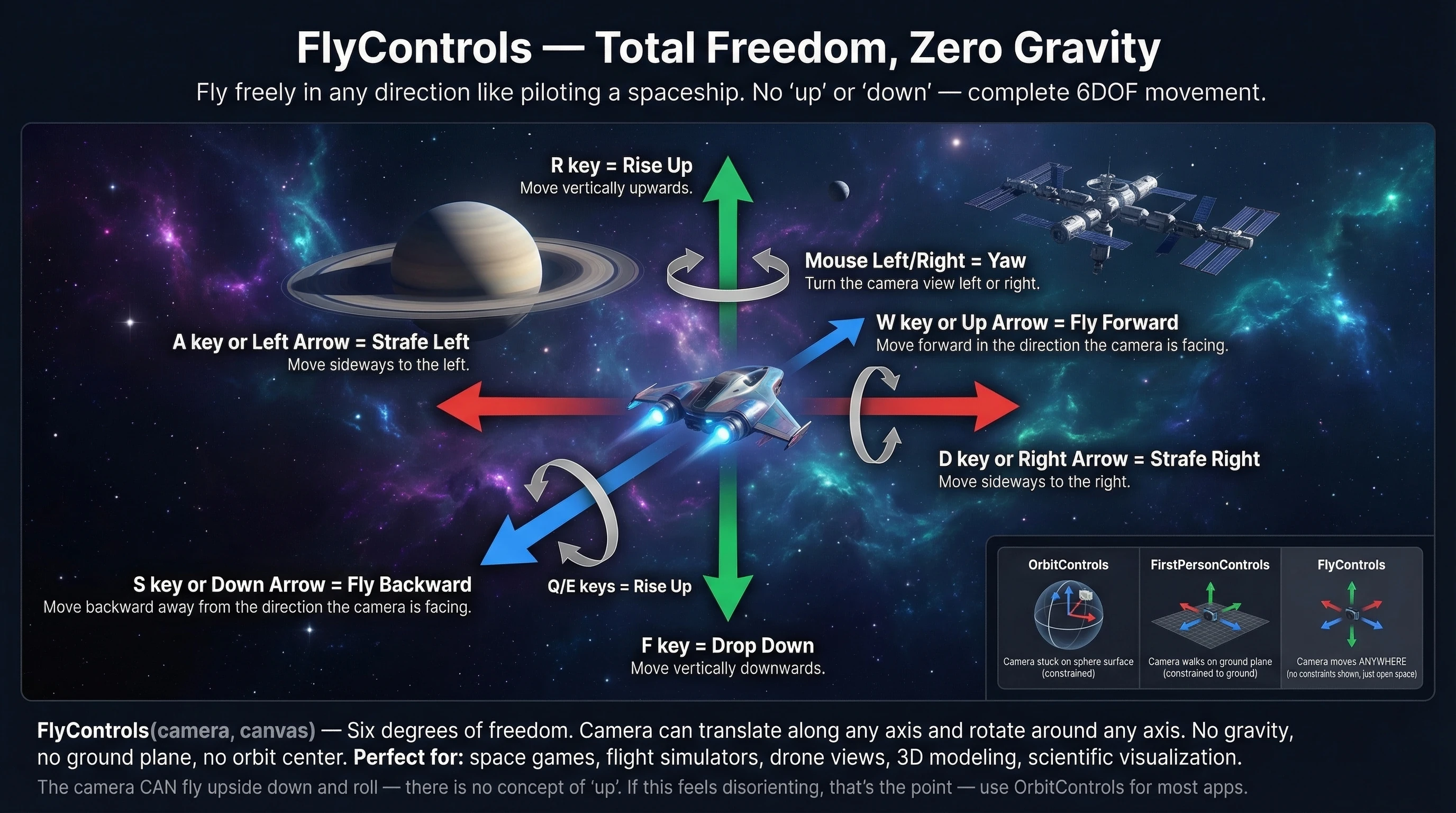

FlyControls - 6 Degrees of Freedom
Full 6DOF flight - move forward/back, strafe left/right, ascend/descend, yaw, pitch, roll. No ground plane constraint. Ideal for space games, drone simulators, and exploring large 3D environments from any angle. Use movementSpeed and rollSpeed to tune feel.

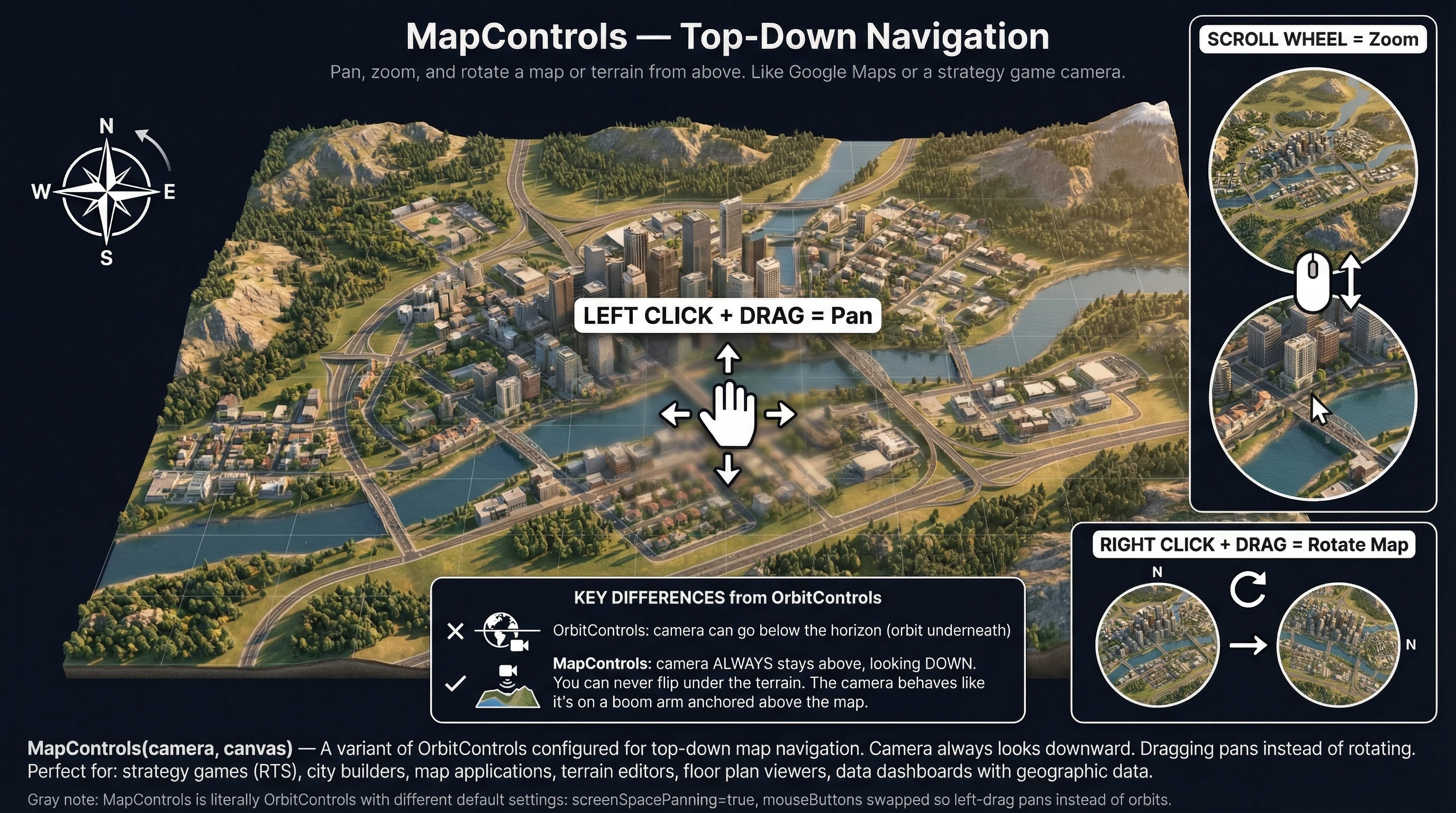

MapControls - Top-Down Map
Variant of OrbitControls optimised for top-down map navigation. Right-drag rotates, left-drag pans the ground plane, scroll zooms. The camera always points roughly downward. Perfect for strategy games, GIS applications, city planners and data visualisation maps.

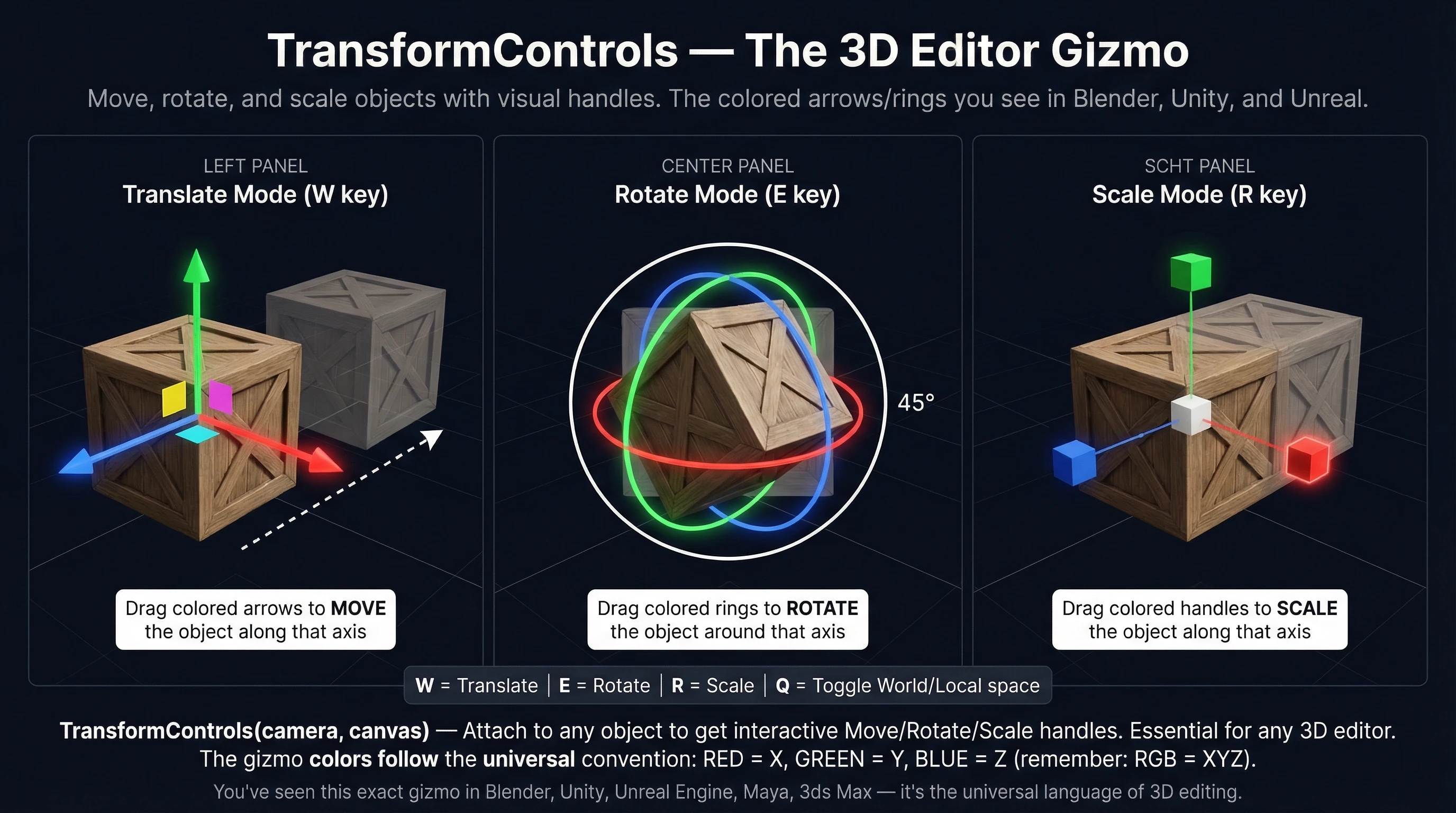

TransformControls - 3D Object Gizmo
Attach to any Object3D to show a manipulator gizmo - arrows for translation, rings for rotation, handles for scale. Press T/R/S to switch modes. Drag axes to constrain to a single axis. Essential for any in-browser 3D editor or level editor. Fire objectChange event to react to modifications.

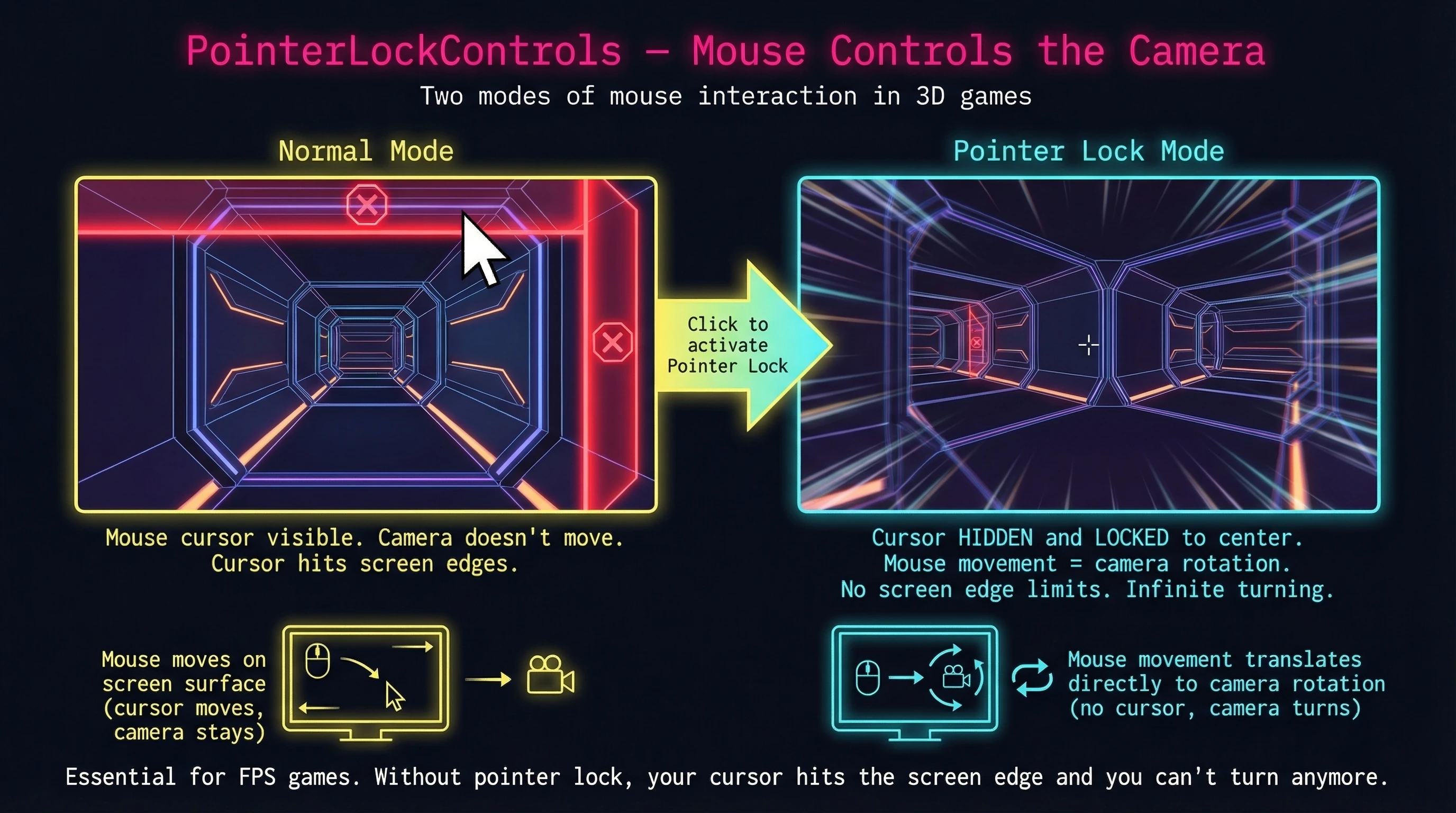

PointerLockControls - FPS Camera
Locks and hides the mouse cursor (browser Pointer Lock API). All mouse delta movement directly rotates the camera - no cursor visible, no screen edge limits. Call controls.lock() on a user click gesture. Standard for first-person games. Combine with WASD keyboard handler for full FPS controls.
12

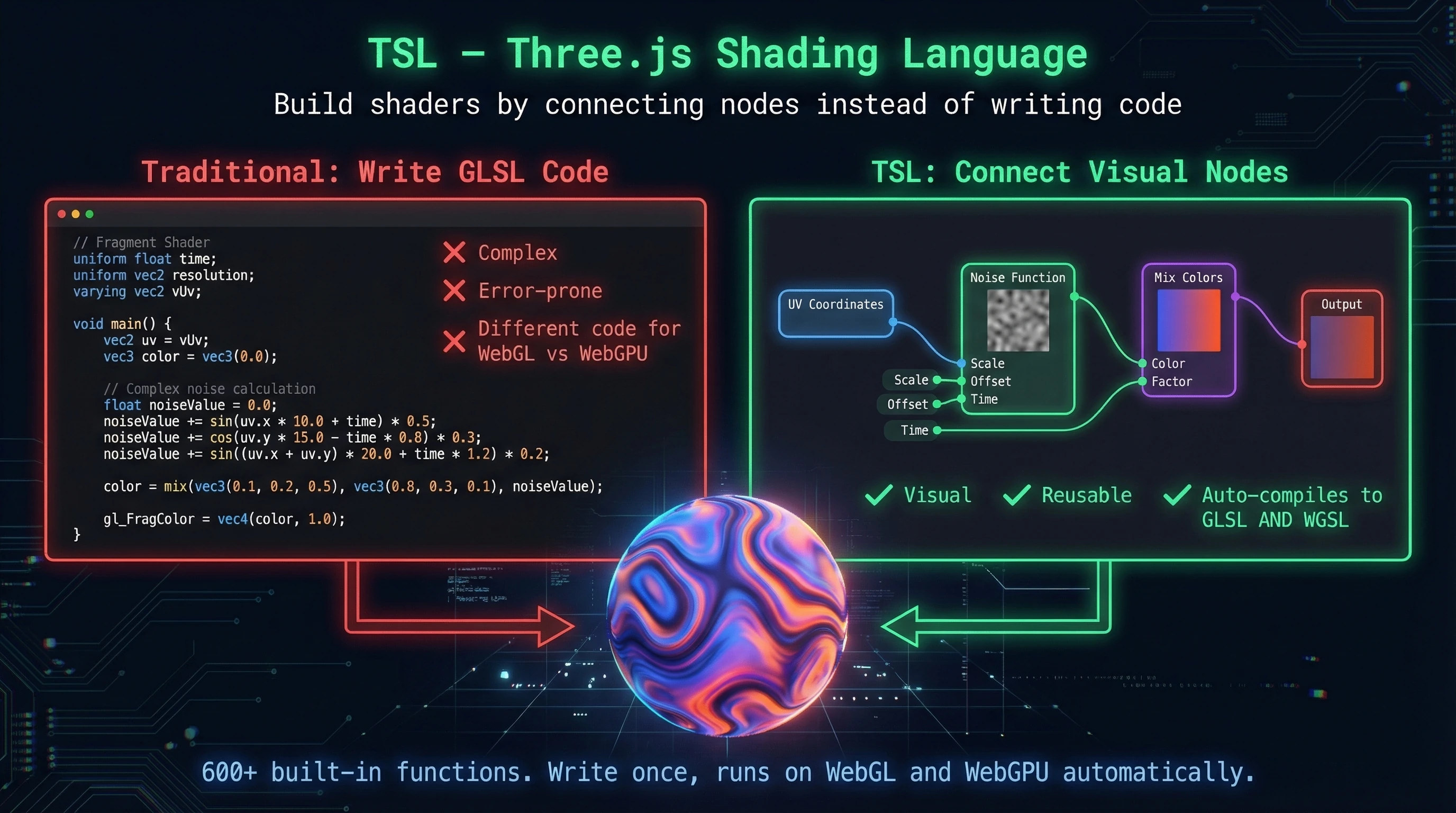

Node System / TSL - Three Shading Language
TSL is Three.js's shader authoring system written entirely in JavaScript. Instead of writing GLSL strings, you compose shader graphs from function nodes - color(), texture(), add(), normalMap(), noise() - and TSL compiles them to GLSL for WebGL or WGSL for WebGPU automatically. No raw shader strings, no manual uniform management, no platform-specific code.
Write shaders in JavaScript, run on GPU. Assign any node expression to material properties: material.colorNode, material.emissiveNode, material.positionNode. The node graph compiles to the correct shader language at runtime.
import { color, texture, mix, uv, time } from'three/tsl'; const mat = newMeshStandardNodeMaterial(); mat.colorNode = mix( color(0xff0000), color(0x0000ff), sin( time ) );
Noise Functions
TSL includes several GPU noise functions: mx_noise_float() for Perlin-style smooth noise, mx_worley_noise() for cellular/Voronoi patterns, checker(), mx_fractal_noise() for fBm (fractal Brownian motion). All run on GPU - perfect for animated terrain, clouds, fire, water, procedural textures.

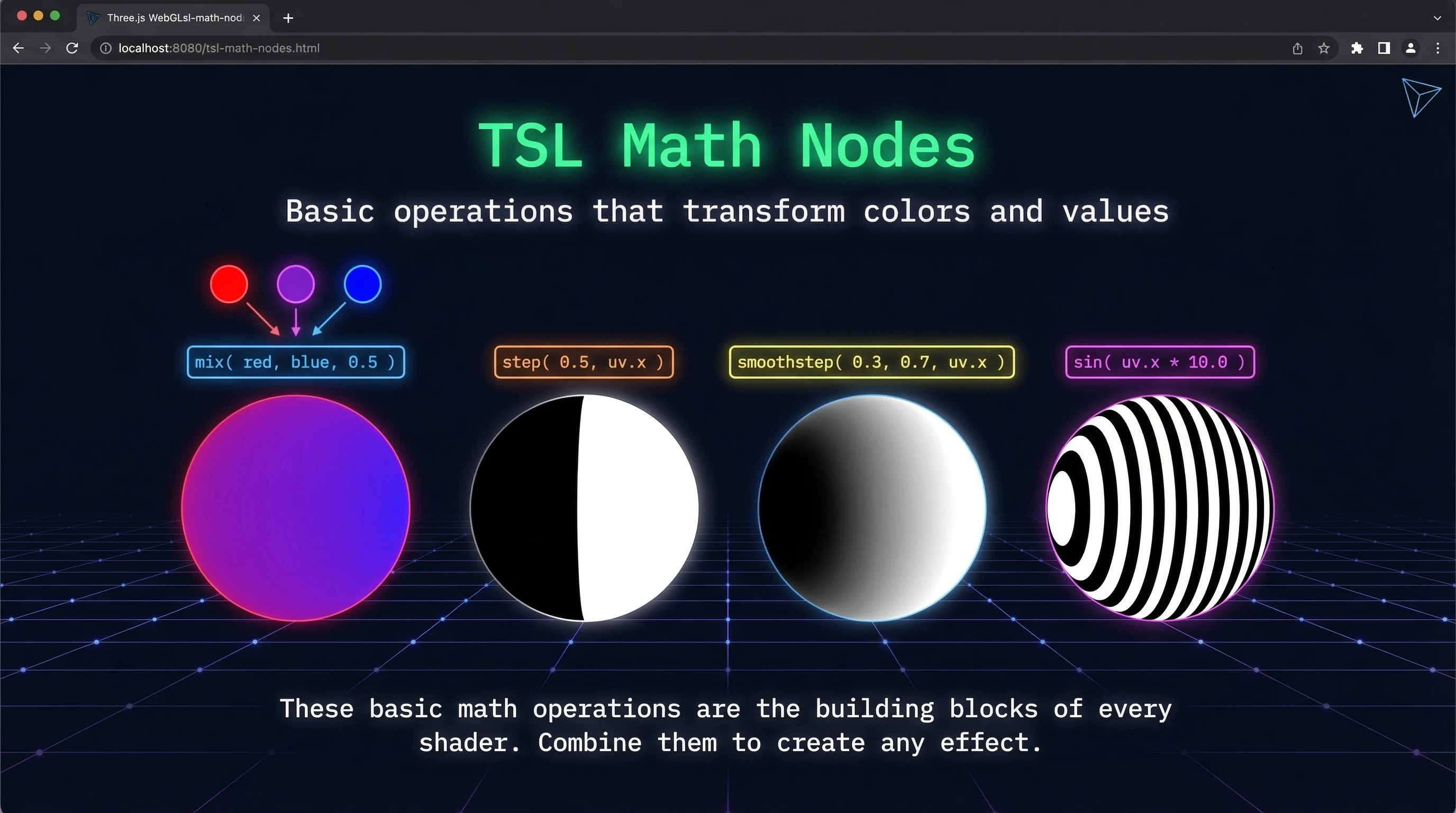

Math Operations in TSL
All standard shader math functions available as TSL nodes: add(), sub(), mul(), div(), mix(), clamp(), smoothstep(), pow(), abs(), sin(), cos(), floor(), fract(), length(), dot(), cross(), normalize(). Chain them to build any mathematical shader effect.

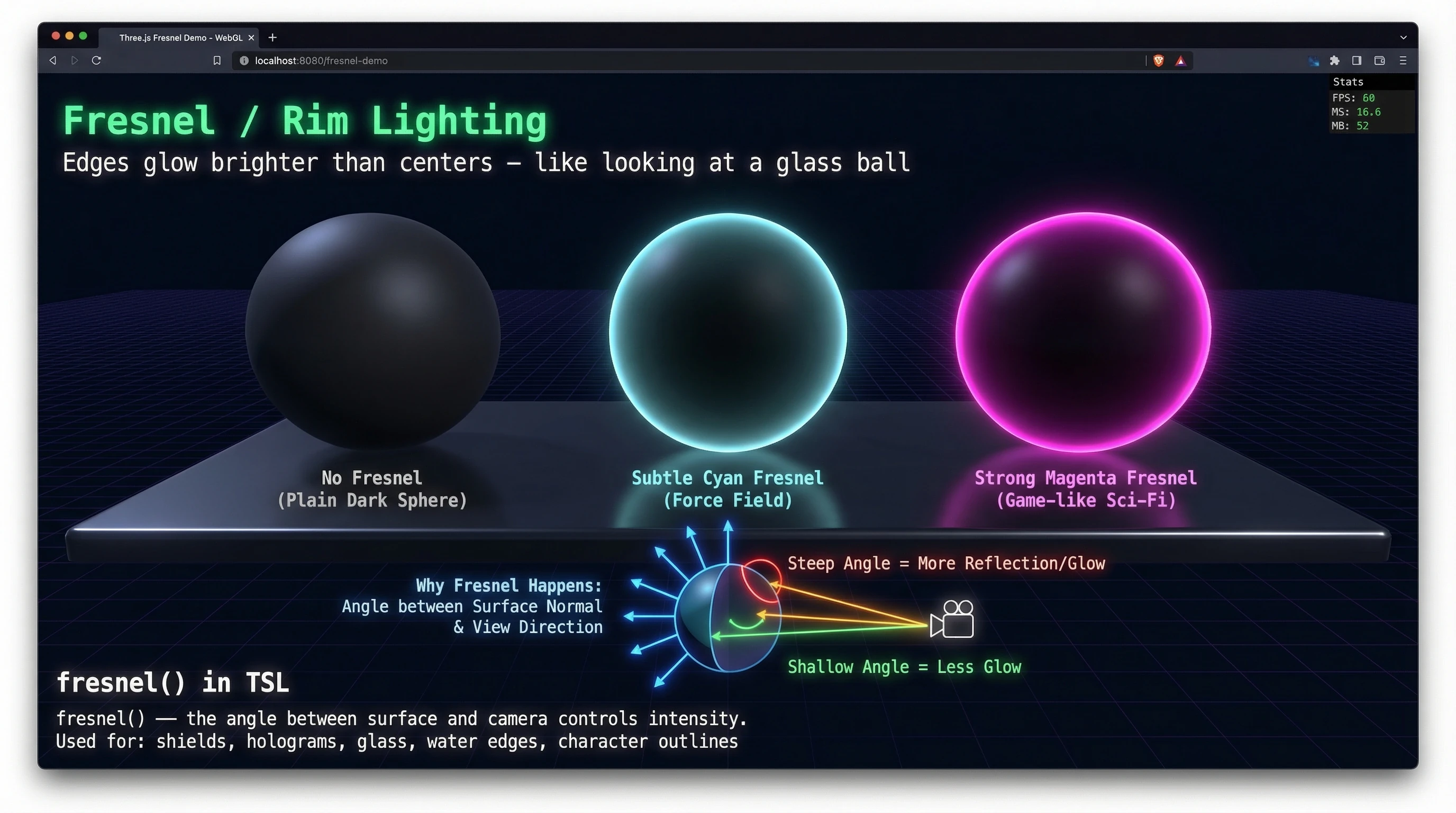

Fresnel / Rim Lighting
The Fresnel effect: surfaces become more reflective at glancing angles (edge of a sphere vs centre). Water, glass, car paint, skin all exhibit this. In TSL: fresnel() outputs 0 at the centre (facing camera) and 1 at the edge. Mix it into emissive or colour for rim glow effects.

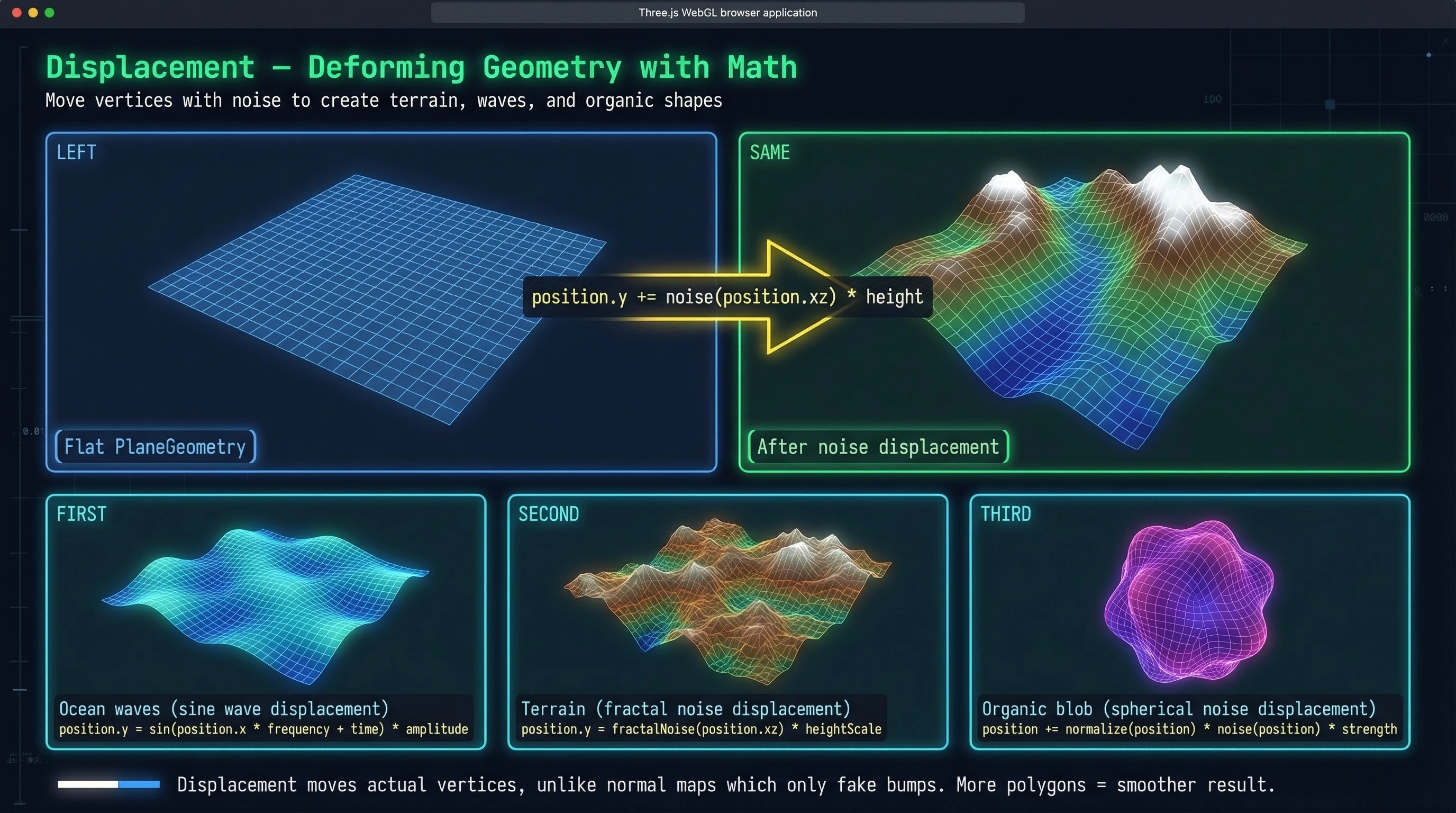

Vertex Displacement
Assign a TSL expression to material.positionNode to move vertices in the vertex shader. Animate terrain from a heightmap, make ocean waves from sine functions, breathe life into characters, create plasma sphere effects - all on GPU with zero CPU overhead.

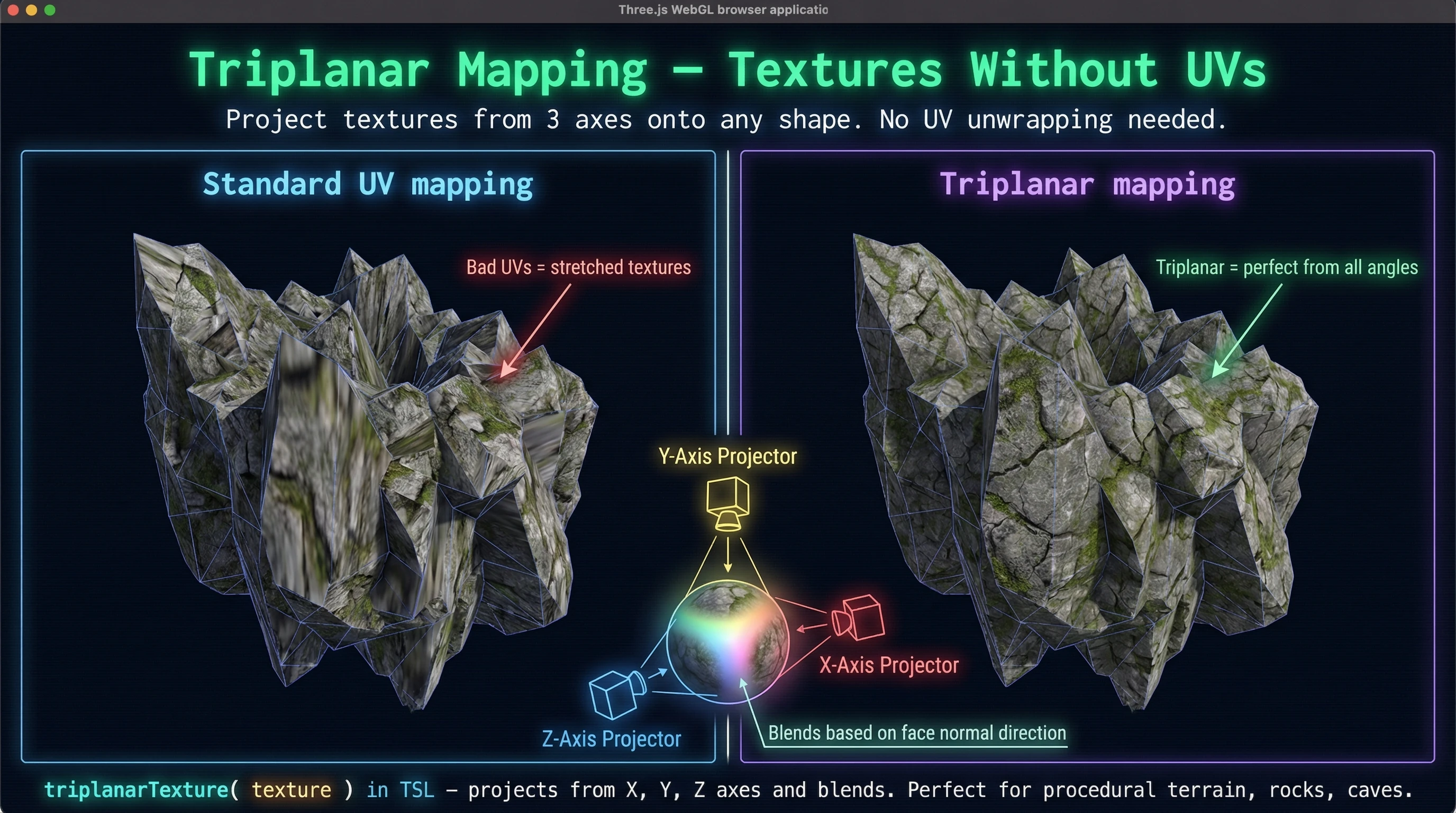

Triplanar Mapping
Projects a texture from X, Y and Z axes simultaneously and blends them based on the surface normal. The result: any shape gets correctly textured without UV unwrapping. triplanarTexture() in TSL. Essential for terrain, caves, organic shapes and anything where UV mapping is impractical.

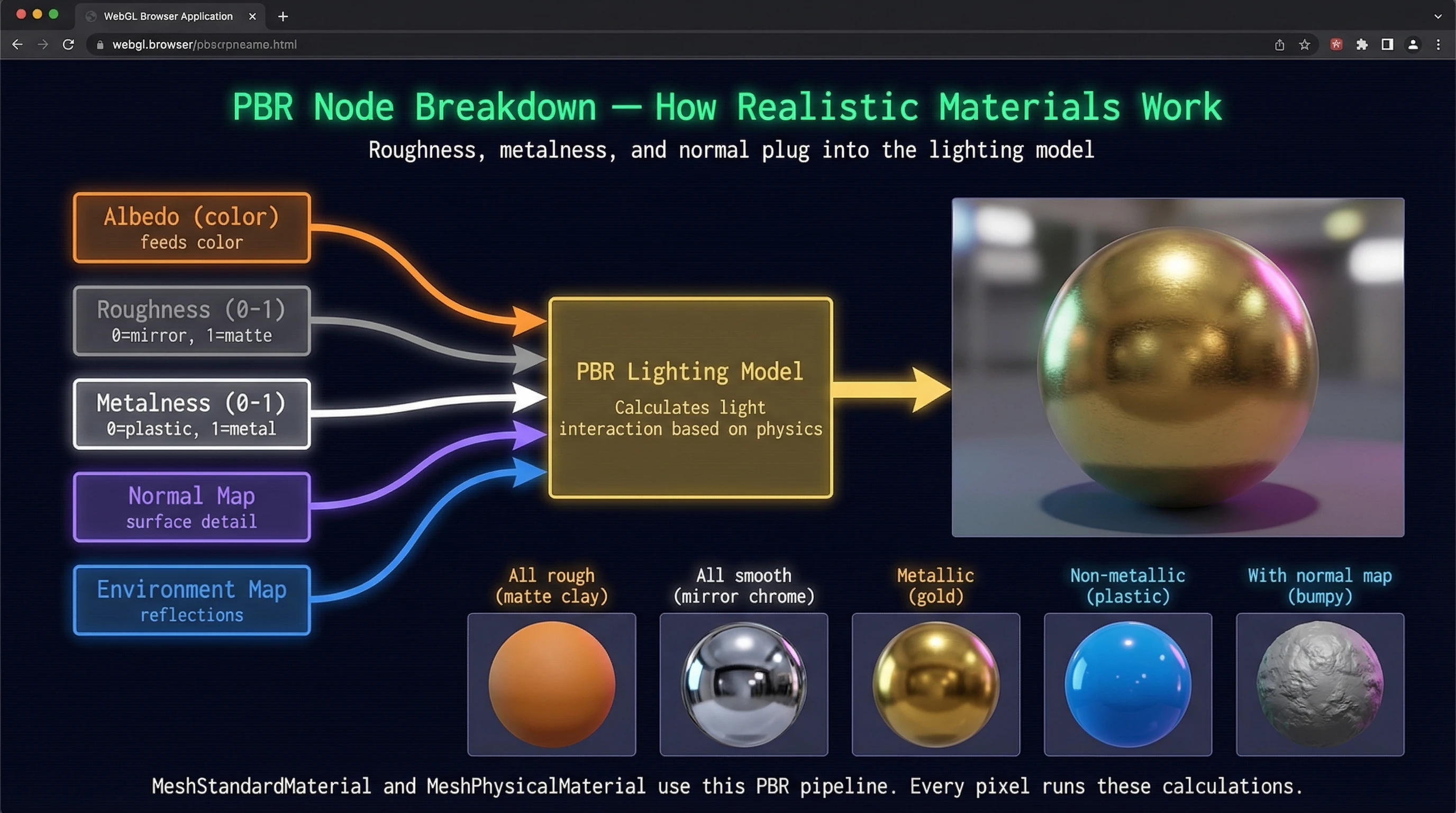

PBR Node Breakdown
How TSL texture nodes wire into a full PBR material: texture(albedoMap) → colorNode, normalMap(normalTex) → normalNode, texture(roughTex).r → roughnessNode, texture(metalTex).b → metalnessNode. Each property accepts any node expression.

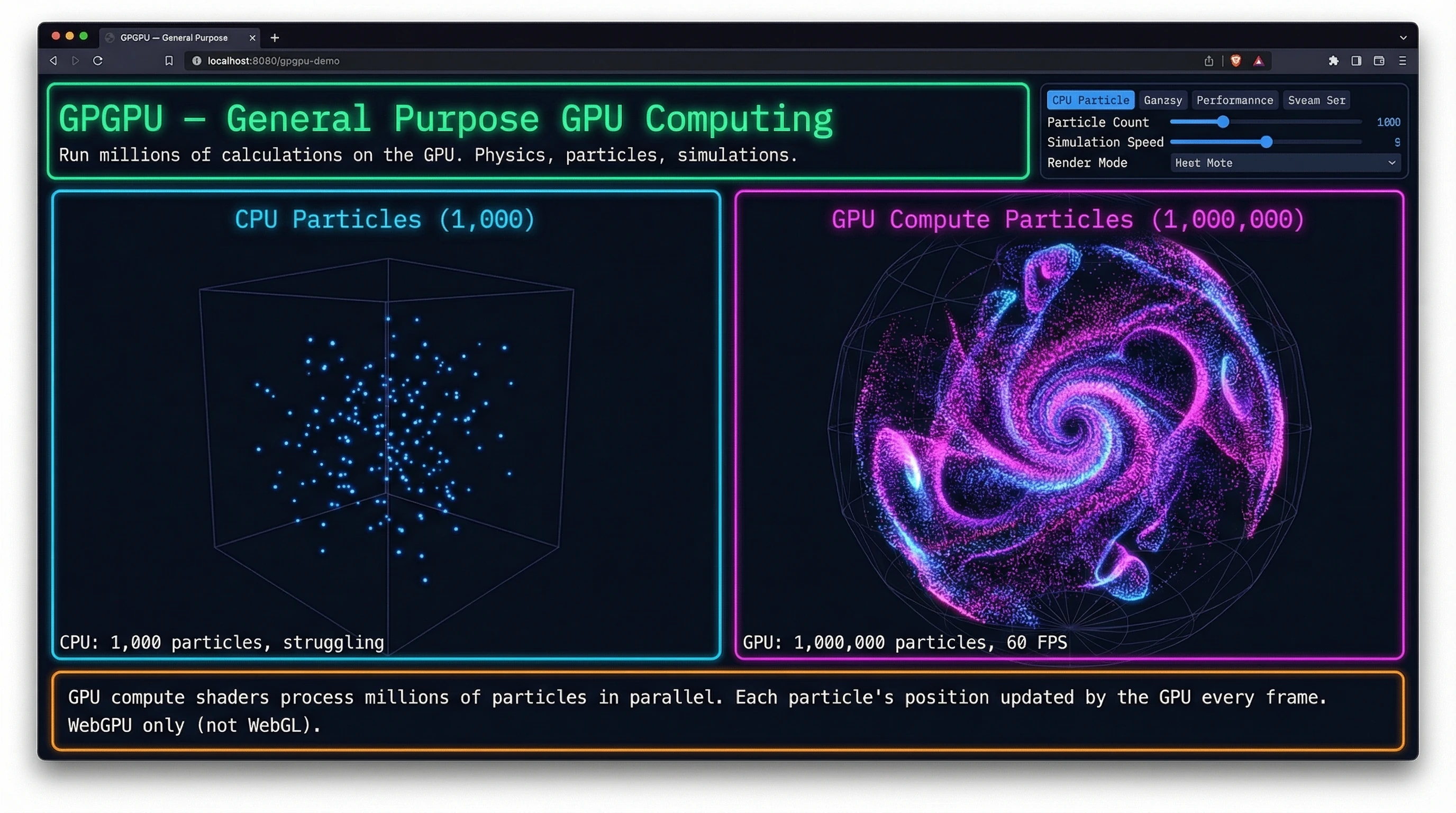

GPGPU - GPU Particle Simulation
Use compute() nodes (WebGPU only) to simulate millions of particles entirely on the GPU. Each particle's position and velocity is stored in a storage buffer. The compute shader updates all particles in parallel. Results feed directly into InstancedMesh matrices - no CPU data transfer each frame.

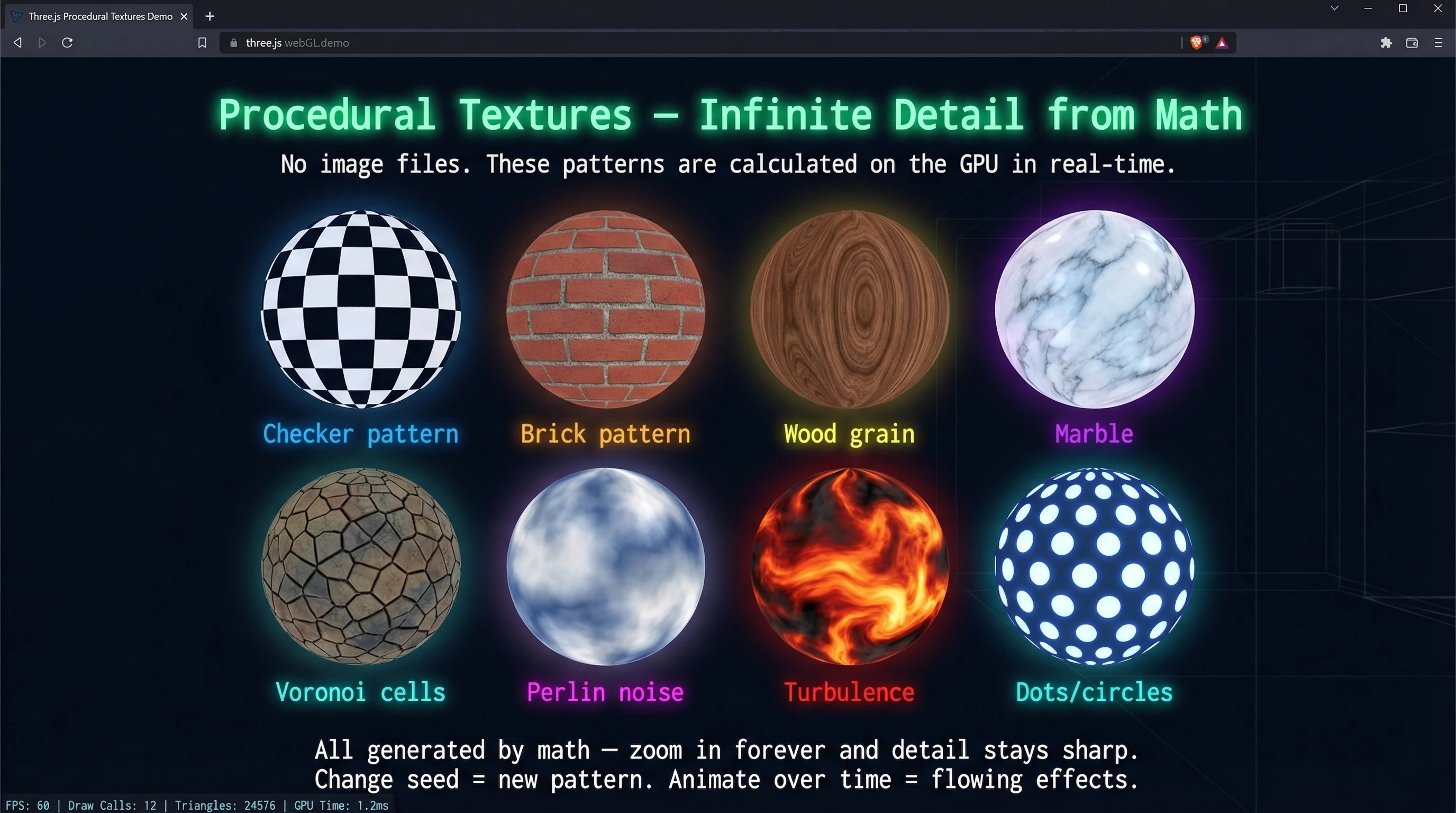

Procedural Shaders
Generate every pixel purely from mathematics - no textures, no files, no loading time. Checkerboard, gradient, polar coordinates, mandelbrot, voronoi, plasma, sine wave patterns. All computed per-pixel at 60fps on GPU. Combine noise + trig functions for infinite detail at any scale.
Custom Shader - Full Creative Control
Assign any TSL expression to any material property. Combine noise, math, time, UV coordinates and texture samples in any way you imagine. Or use raw ShaderMaterial/RawShaderMaterial with hand-written GLSL for absolute control. This is where Three.js becomes a creative coding environment.
13
Animation
Three.js includes a complete keyframe animation system. AnimationClip stores named tracks of keyframed values. AnimationMixer plays clips on an object, handling speed, looping, blending and crossfading between multiple clips. Used for everything from a spinning cube to fully rigged character animation.

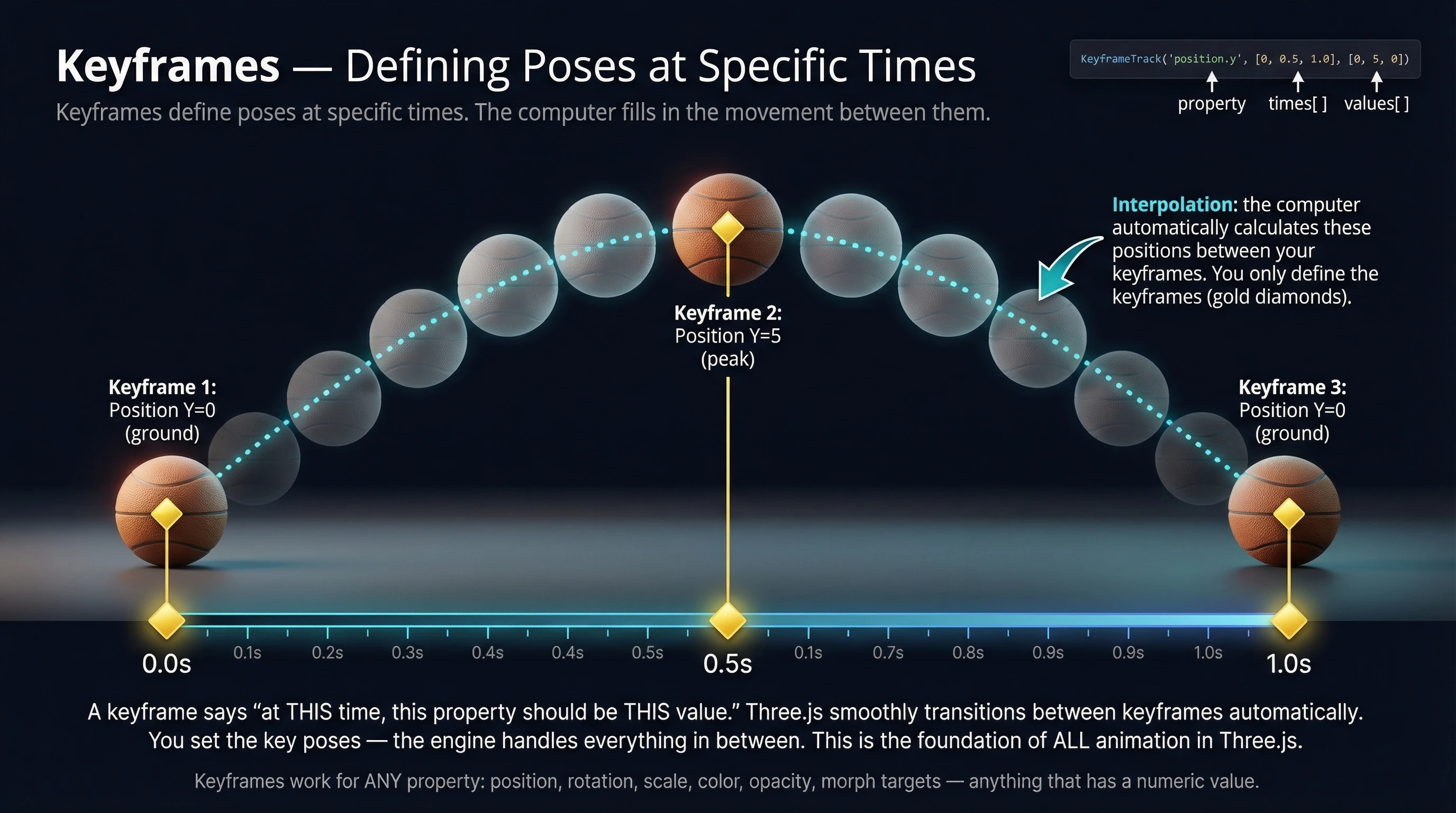

A KeyframeTrack stores the property name (.position[x]), an array of times (seconds), and an array of values. Multiple tracks form an AnimationClip. The interpolant (linear, smooth cubic, or discrete step) fills values between keyframes. Any Object3D property can be animated: position, rotation, scale, material colour, morph weight.

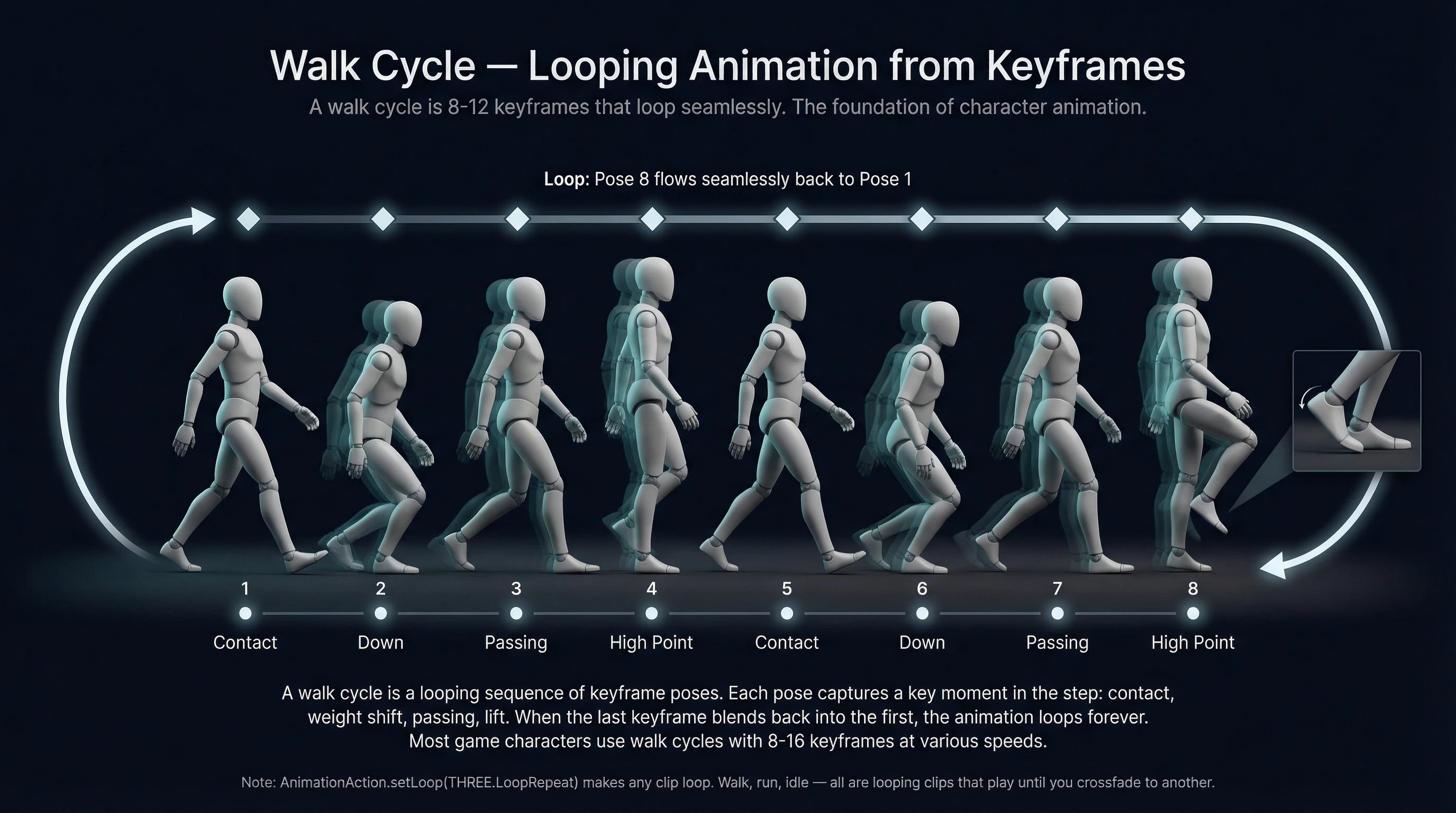

Walk Cycle
~8 key poses timed so the last frame flows back into the first. The mixer loops the clip and the character walks indefinitely. Walk cycles are the foundation of character animation - everything else (run, jump, combat) layers on top or crossfades from it.

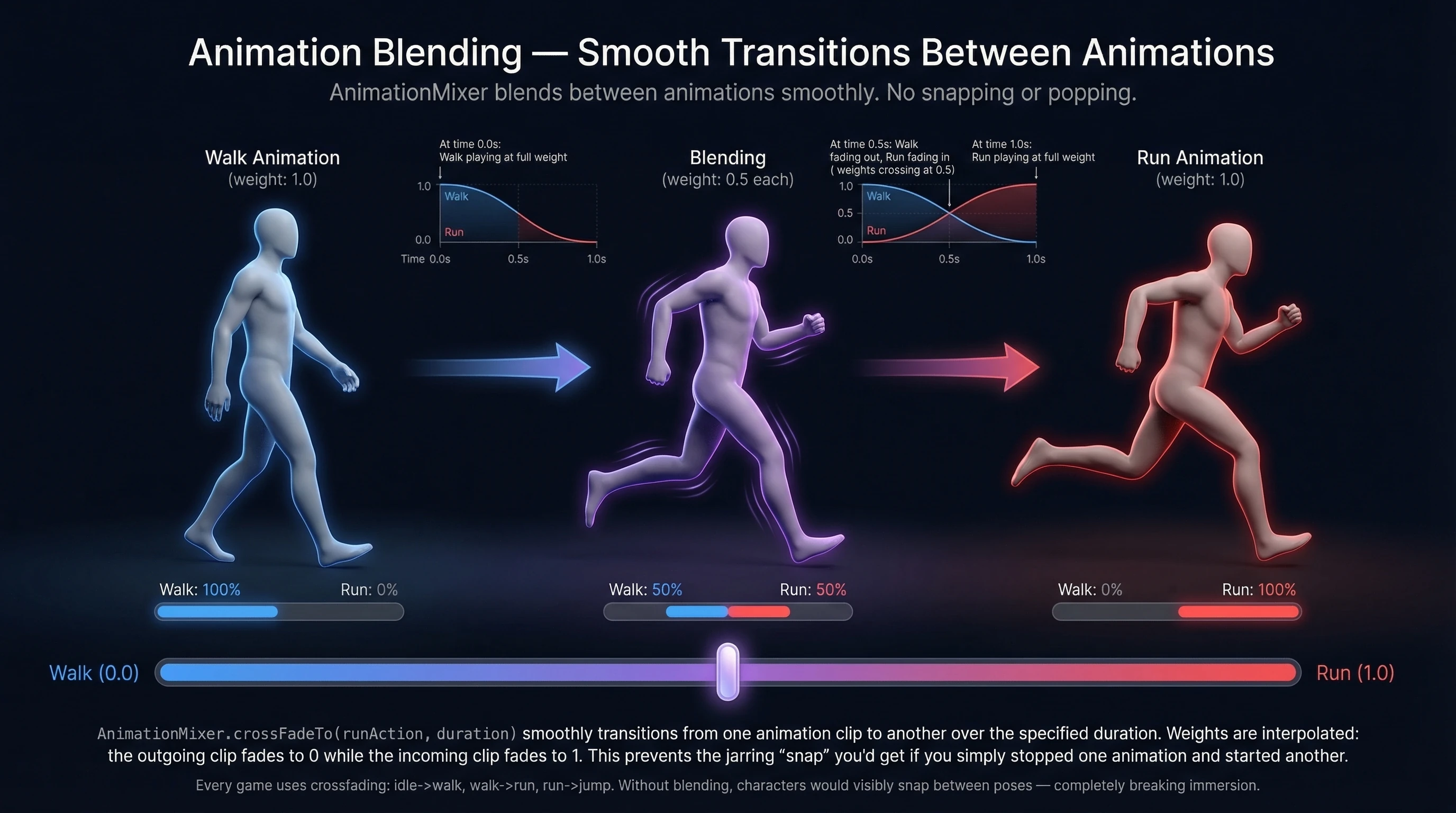

Blend & Crossfade
AnimationMixer blends multiple simultaneous actions by their weight property. action.crossFadeTo(otherAction, duration) smoothly transitions weight from one clip to another over the duration - walk smoothly becomes run, idle flows into attack, land fades from falling.

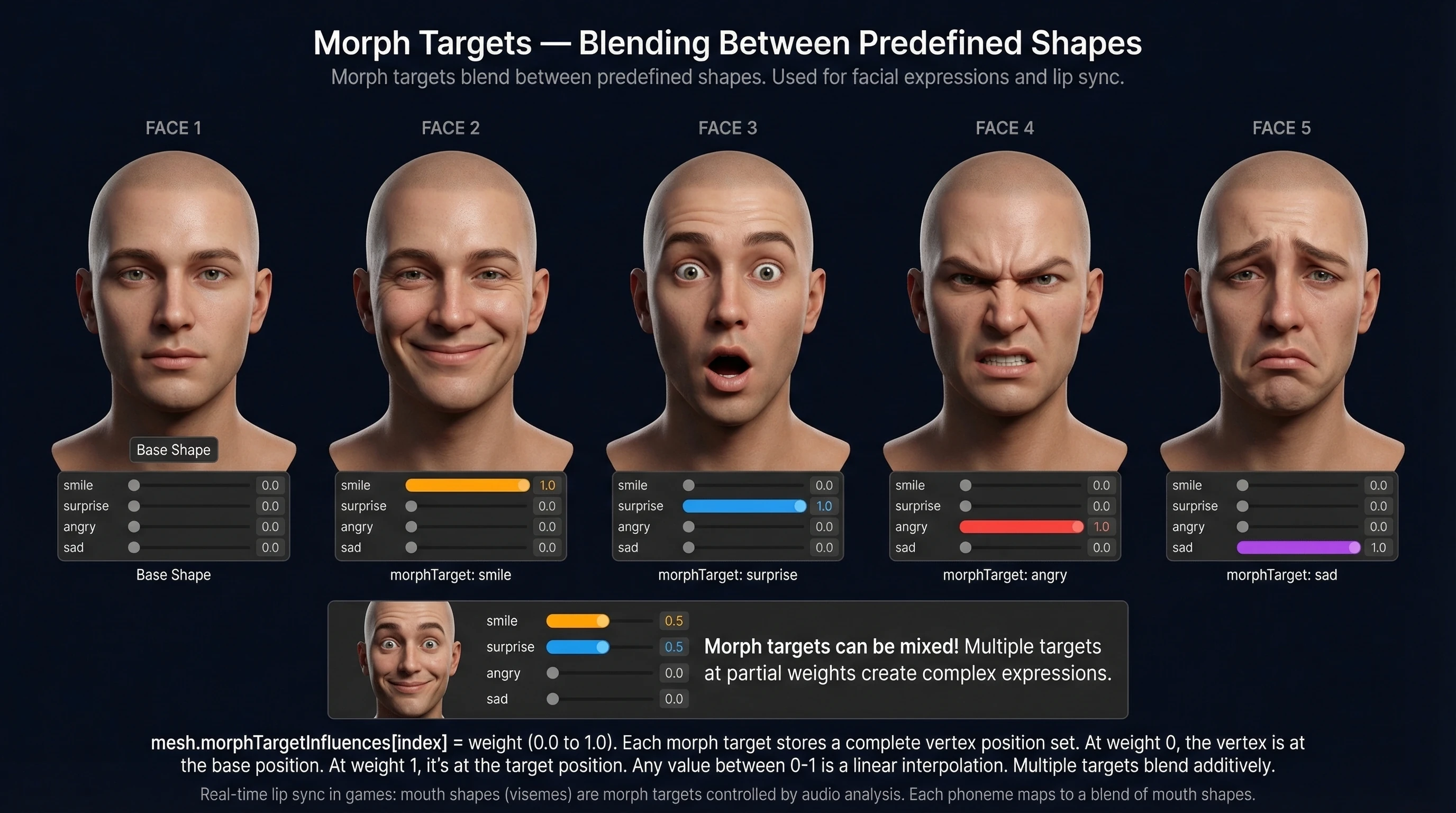

Morph Targets - Blend Shapes
Pre-baked vertex positions stored in geometry. mesh.morphTargetInfluences[i] = 0..1 blends between base geometry and a target shape. Blend multiple targets simultaneously. Used for facial expressions, lip-sync, secondary deformations, and smooth shape transformations. Common in glTF character files.

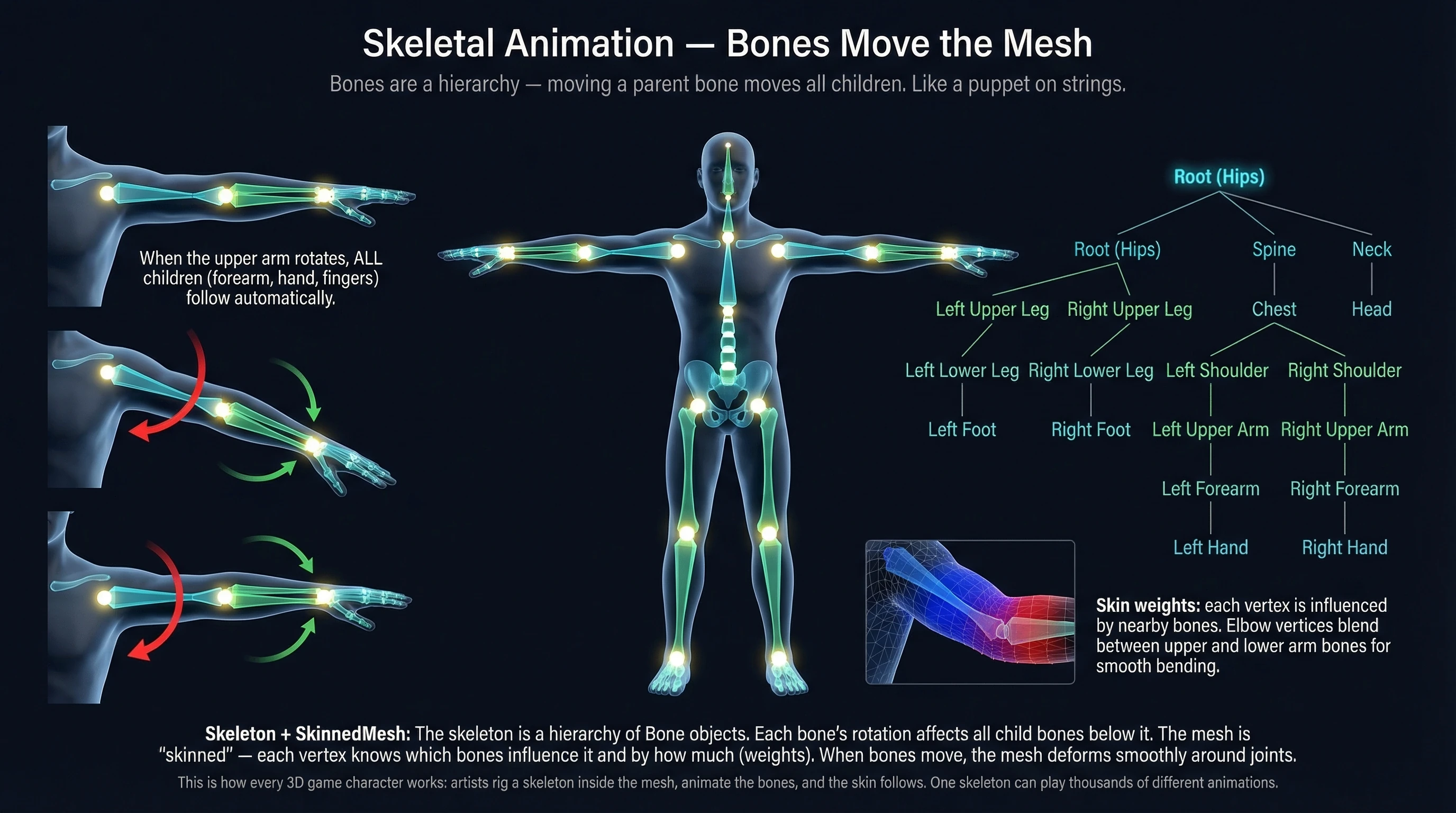

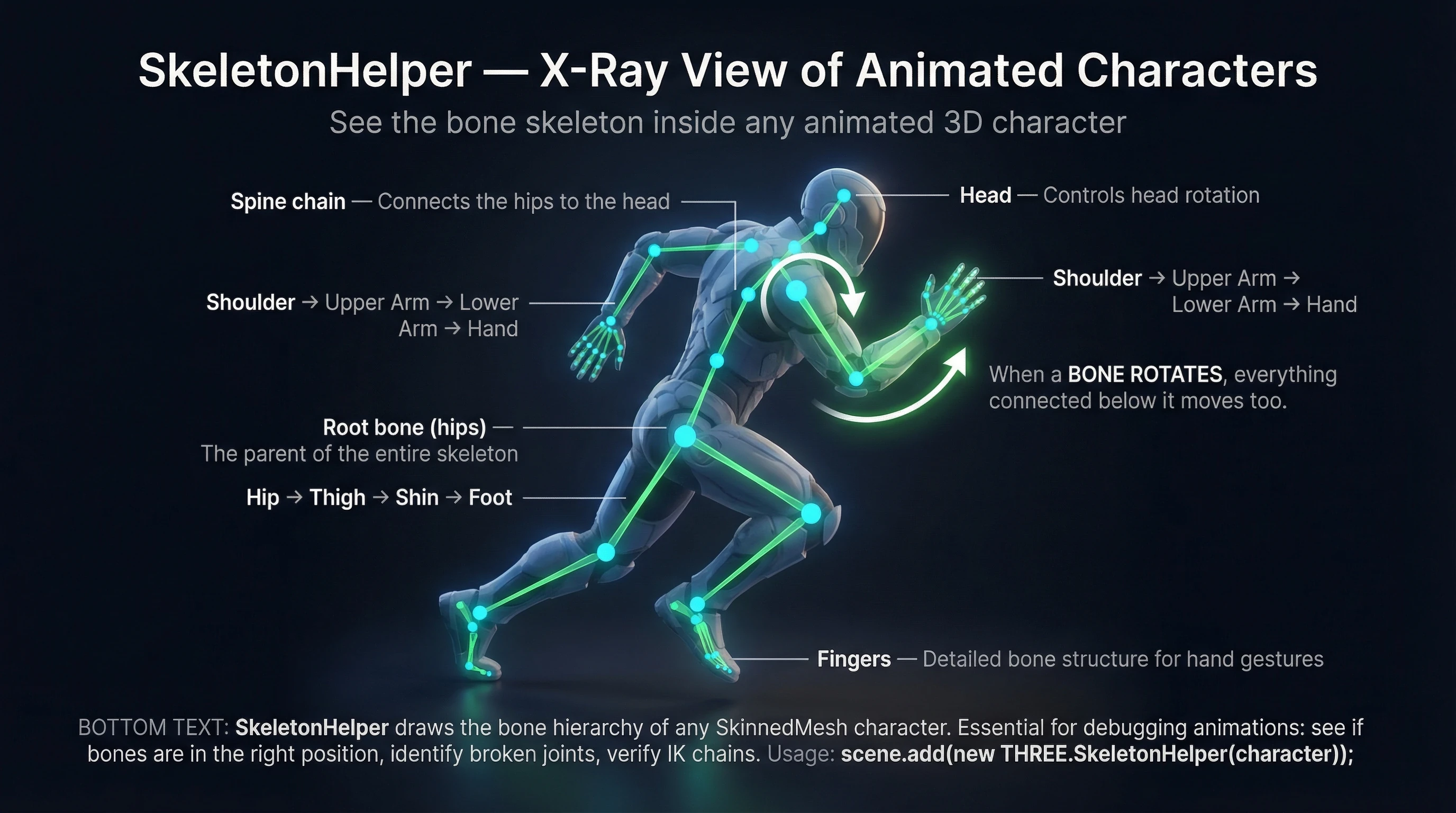

Skeletal Animation - Bone Rigs
A Skeleton is a hierarchy of Bone objects (Object3Ds). Each vertex in the SkinnedMesh is influenced by 1–4 bones with blend weights (stored as skinIndex and skinWeight attributes). Move/rotate bones and the mesh follows. The complete character animation pipeline used in games.

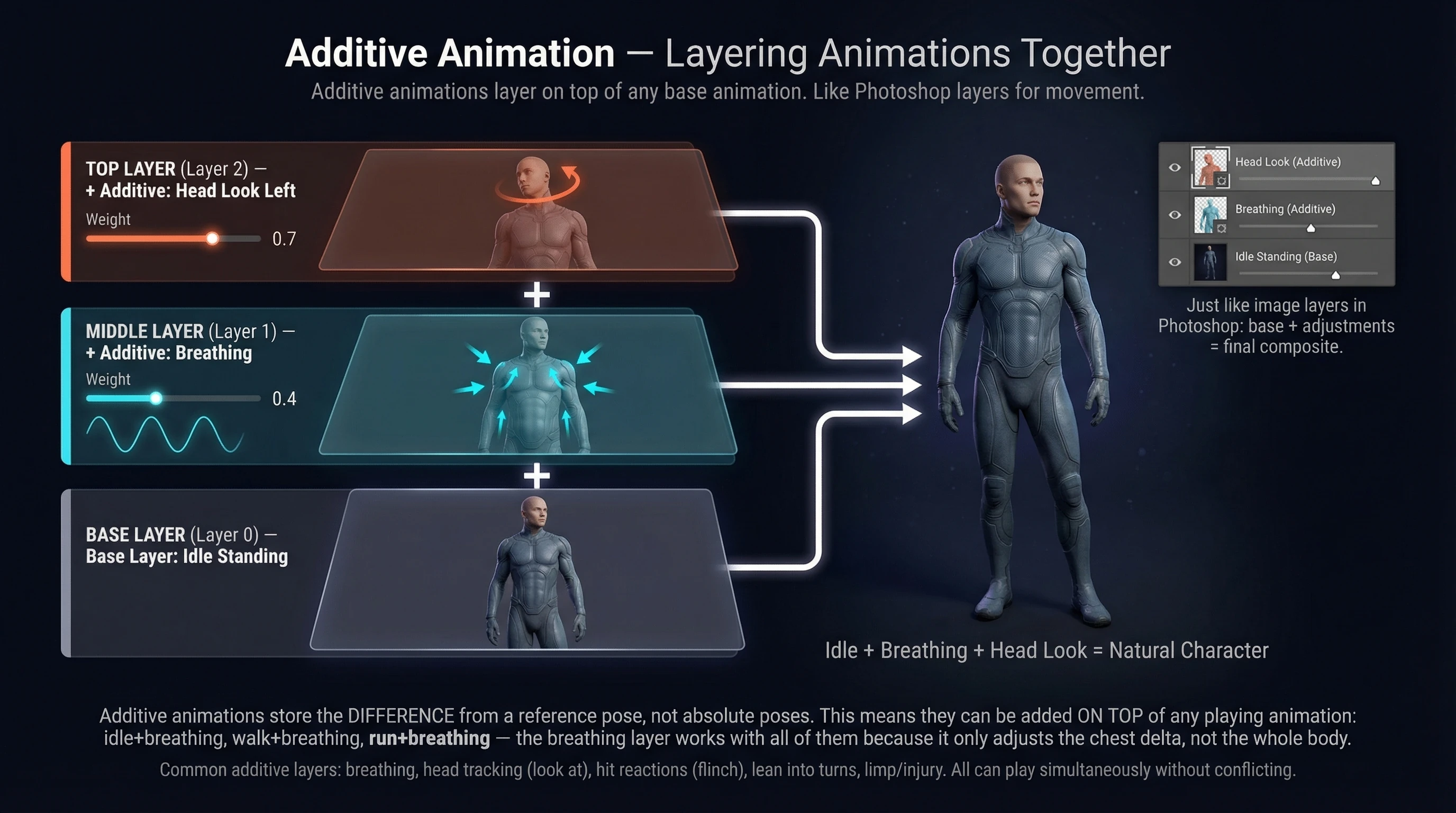

Additive Animation
An additive layer adds its delta values on top of a base pose instead of replacing it. Set action.blendMode = THREE.AdditiveAnimationBlendMode. Breathing, head-look, flinch reactions and facial emotions can all be independent additive layers playing simultaneously on top of locomotion.

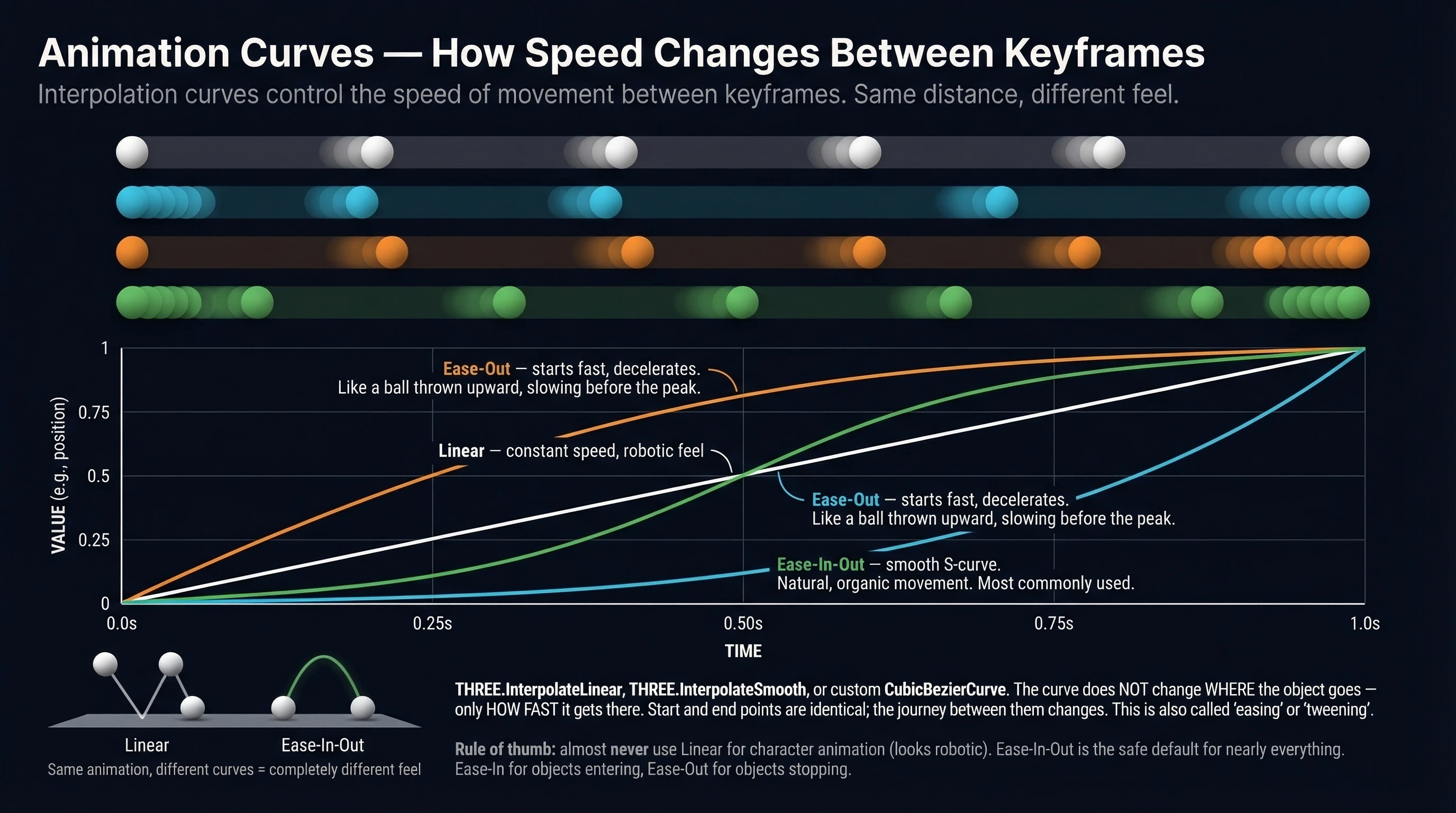

Animation Curves - Interpolation
How values change between keyframes: InterpolateLinear (straight line, robotic), InterpolateSmooth (cubic Catmull-Rom, natural), InterpolateDiscrete (instant step, snappy). Ease-in/ease-out curves make animations feel physical - things accelerate and decelerate rather than moving at constant speed.

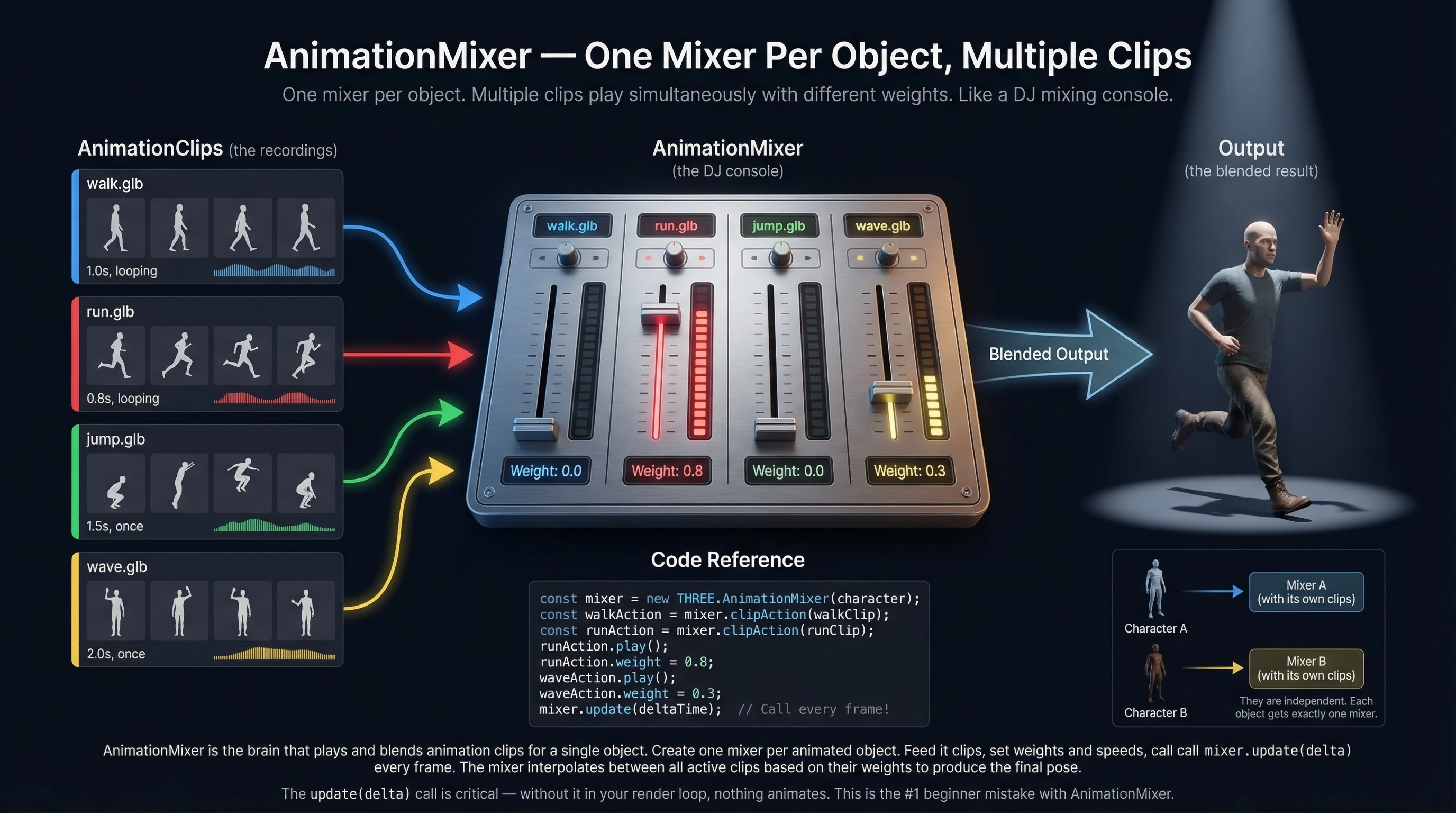

AnimationMixer Concept
One mixer per animated object. mixer.clipAction(clip) returns an AnimationAction. Set action.play(), action.weight (blend amount), action.timeScale (speed). Call mixer.update(delta) every frame in the render loop. Multiple actions blend automatically by their weights.
14
Audio

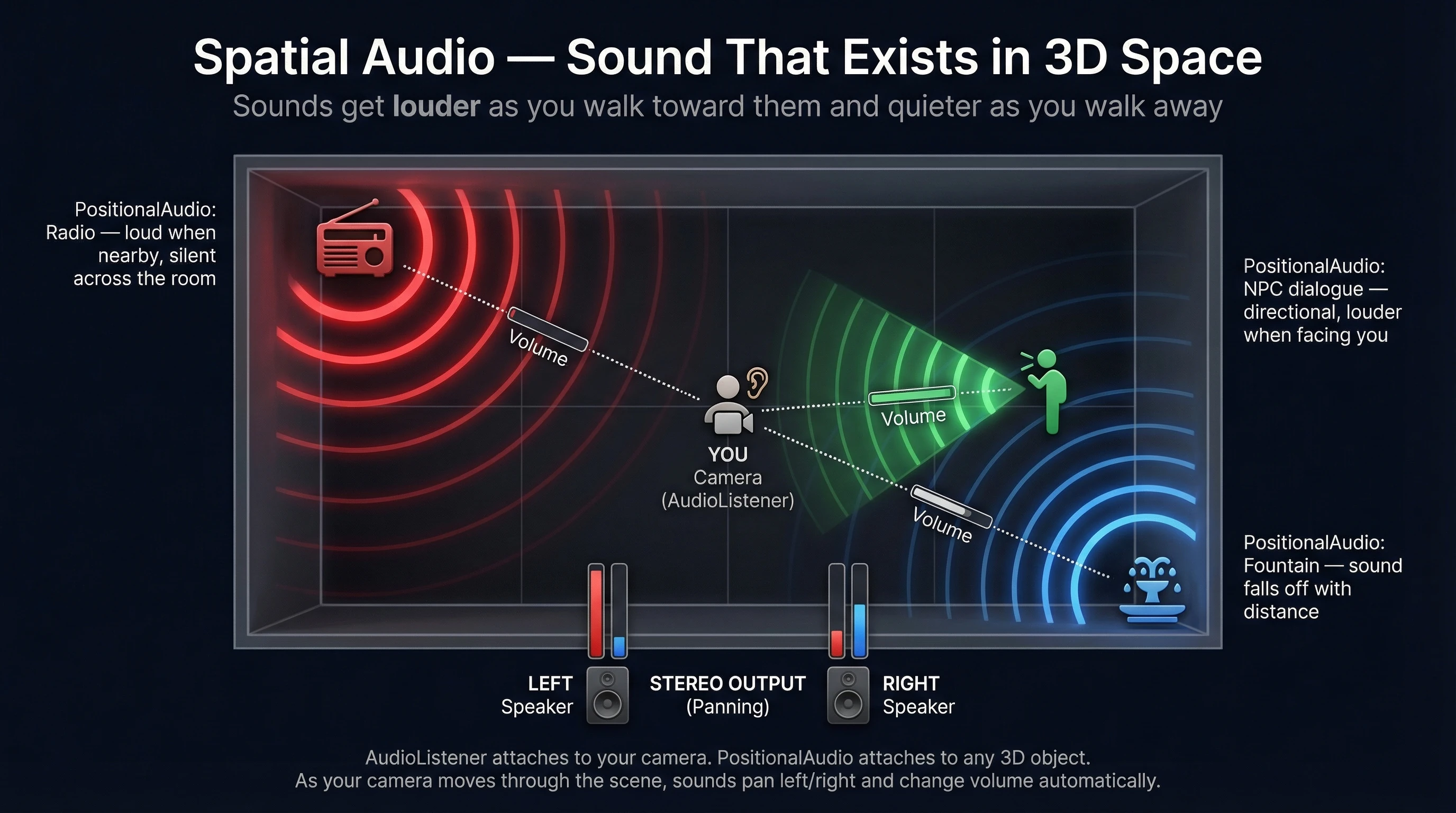

Three.js integrates the Web Audio API into the scene graph. AudioListener attaches to the camera and acts as the player's ears. PositionalAudio attaches to 3D objects and automatically adjusts volume and stereo panning based on distance and angle from the listener - walk towards an explosion and it gets louder, walk past it and it pans side to side.
AudioListener on the camera = the player's ears. PositionalAudio on a 3D object = a sound source in the world. The Web Audio PannerNode automatically computes volume, left/right panning, and doppler shift from the relative positions and velocities. Walk through a scene and sounds change as expected.

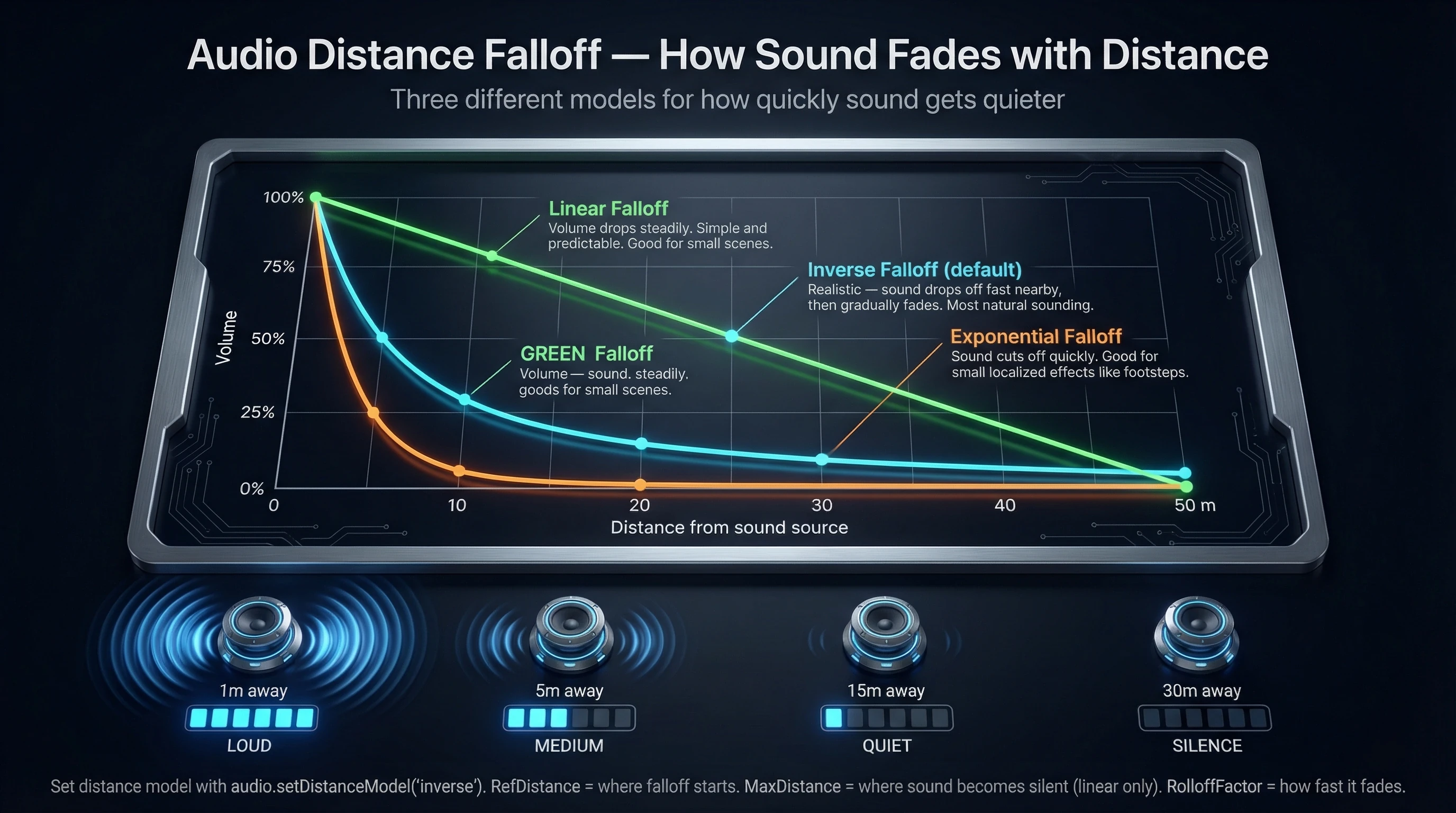

Audio Falloff - Distance Curves
rolloffFactor controls how fast volume drops. distanceModel: linear (even drop to maxDistance), inverse (halves every doubling of distance - physically correct), exponential (extreme drop off). refDistance is where attenuation begins; maxDistance is where volume hits 0.

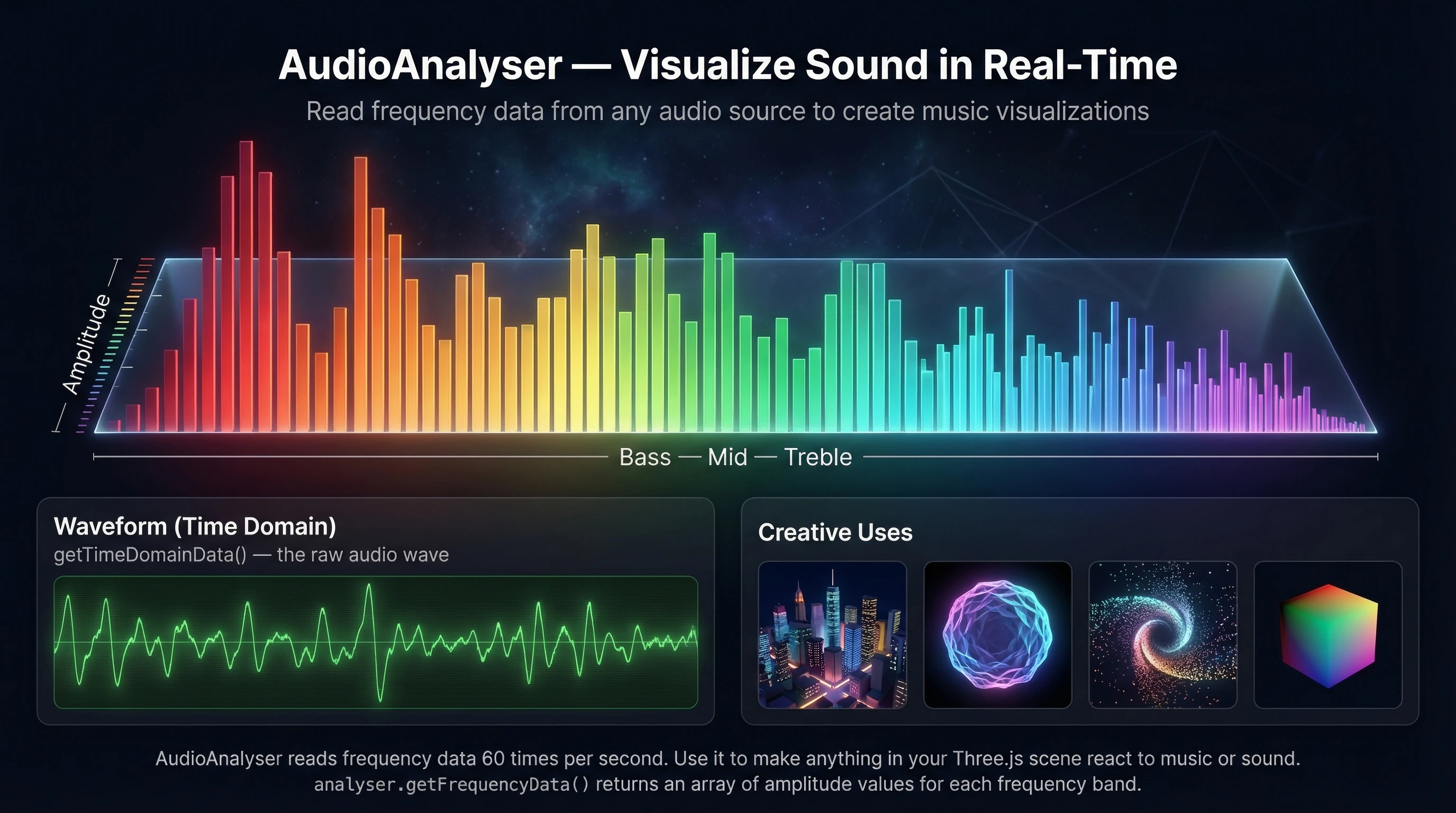

AudioAnalyser - Frequency Visualisation
Wraps Web Audio's AnalyserNode. Call analyser.getFrequencyData() each frame - returns a Uint8Array of FFT frequency bins from bass to treble. Use those 128/256 values to drive anything: geometry heights, emissive intensity, particle velocities, colour shifts. Music-reactive visuals.

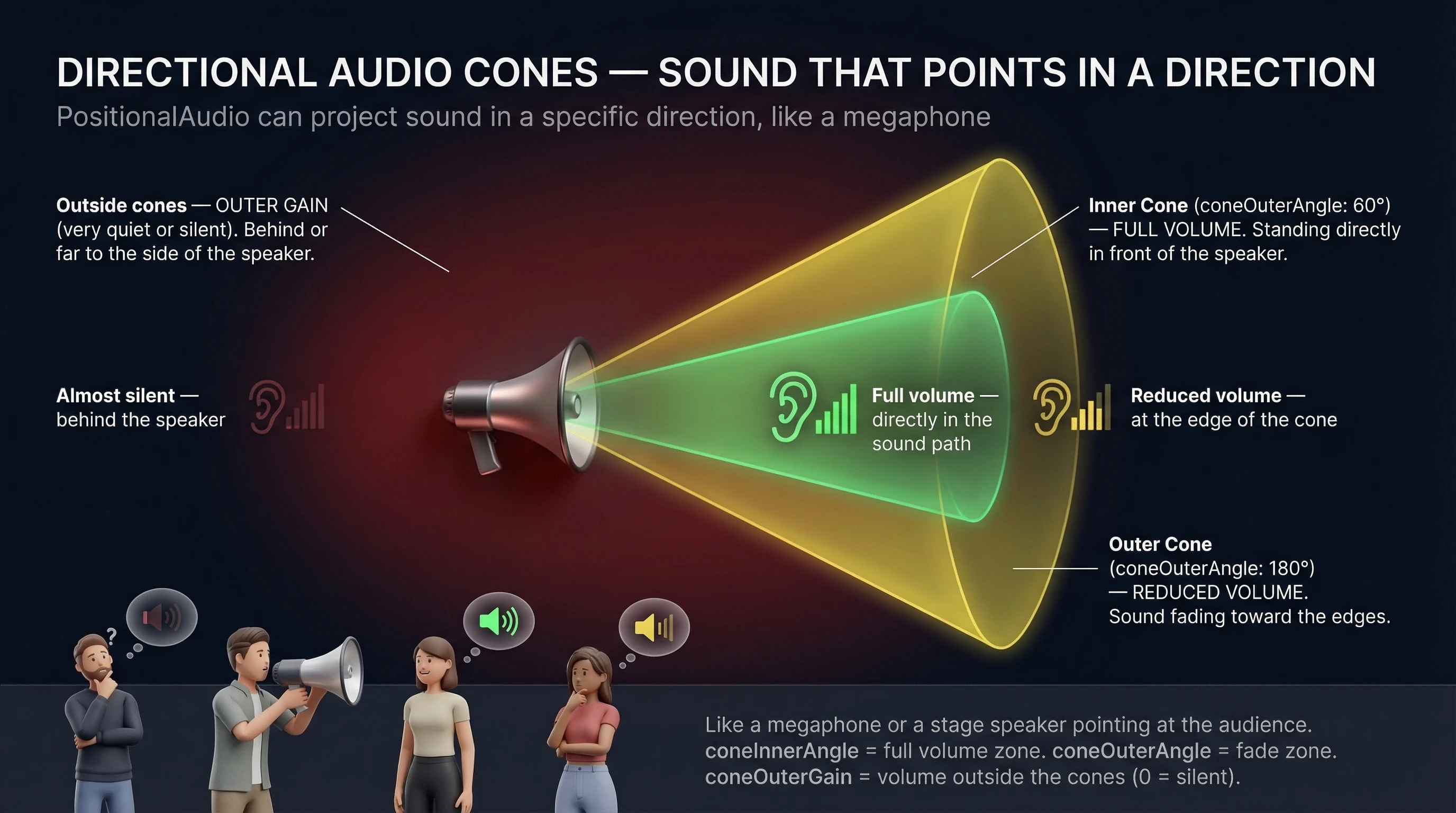

Audio Cones - Directional Sound
PositionalAudio supports directionality via inner/outer cone angles. coneInnerAngle: full volume zone. coneOuterAngle: transition zone. coneOuterGain: volume at and beyond outer cone. Perfect for NPCs, speakers pointing in a direction, vehicle exhausts, vents.
15
Special Objects & Effects
Three.js addons include high-level pre-built objects for visual needs that would take weeks to build from scratch - animated ocean water, procedural sky, real-time mirror reflections, lens flares, HTML elements in 3D space, and GPU-instanced forests. All in jsm/objects/ and ready to drop into any scene.

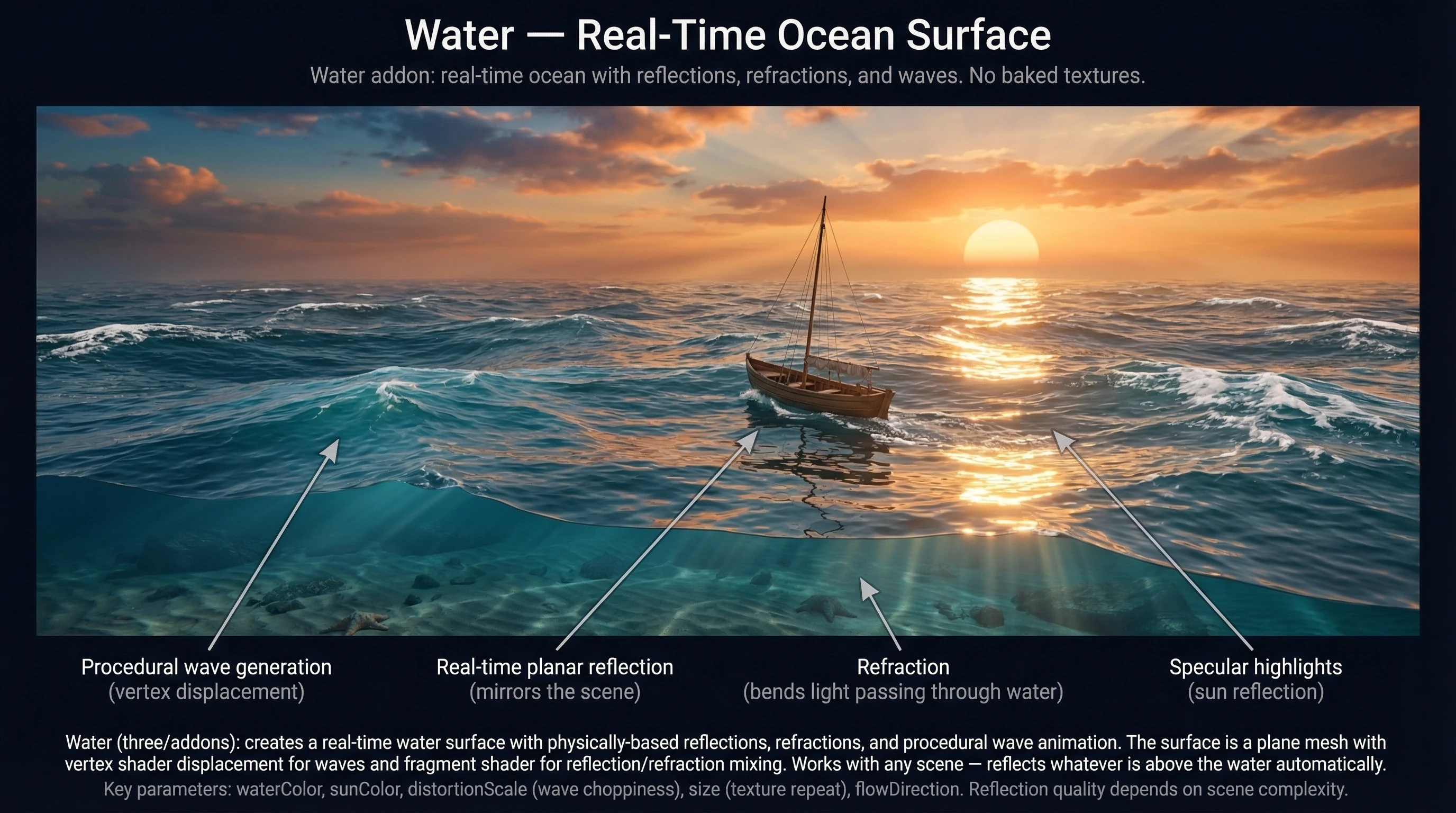

Animated water surface using two normal map textures scrolling at different speeds and angles for complex wave patterns. Reflects the sky, refracts the scene below, and responds to sunDirection for specular sun glints. Water2 adds more complex dual-normal wave patterns for rivers, pools and oceans.

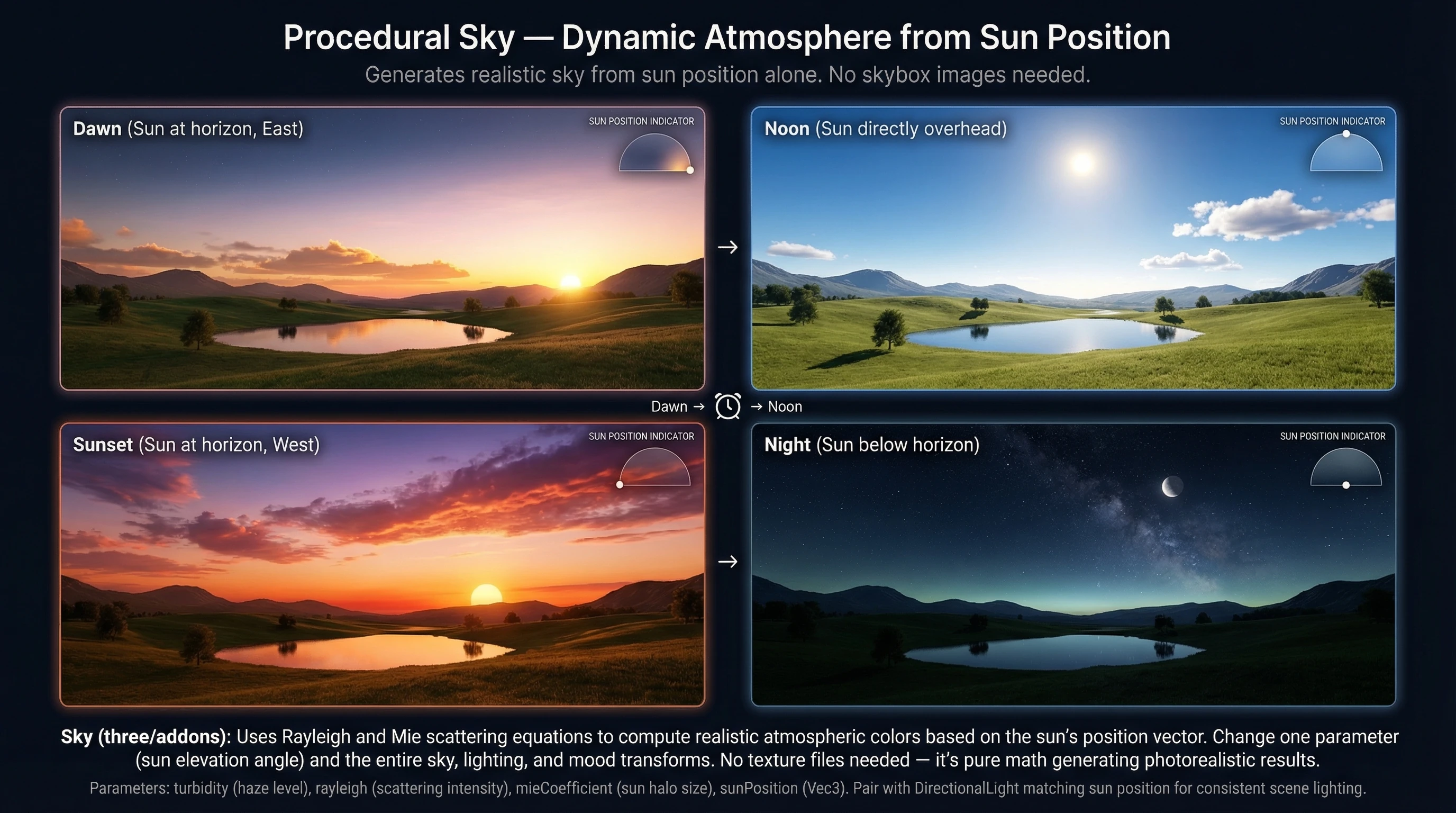

Sky - Procedural Preetham Model
A physically-based sky shader (Preetham 1999 atmospheric scattering model). Parameters: turbidity (haze), rayleigh (blue sky scattering), mieCoefficient/mieDirectionalG (sun halo size), sunPosition. No textures needed - full dawn-to-dusk cycle in real-time from equations alone.

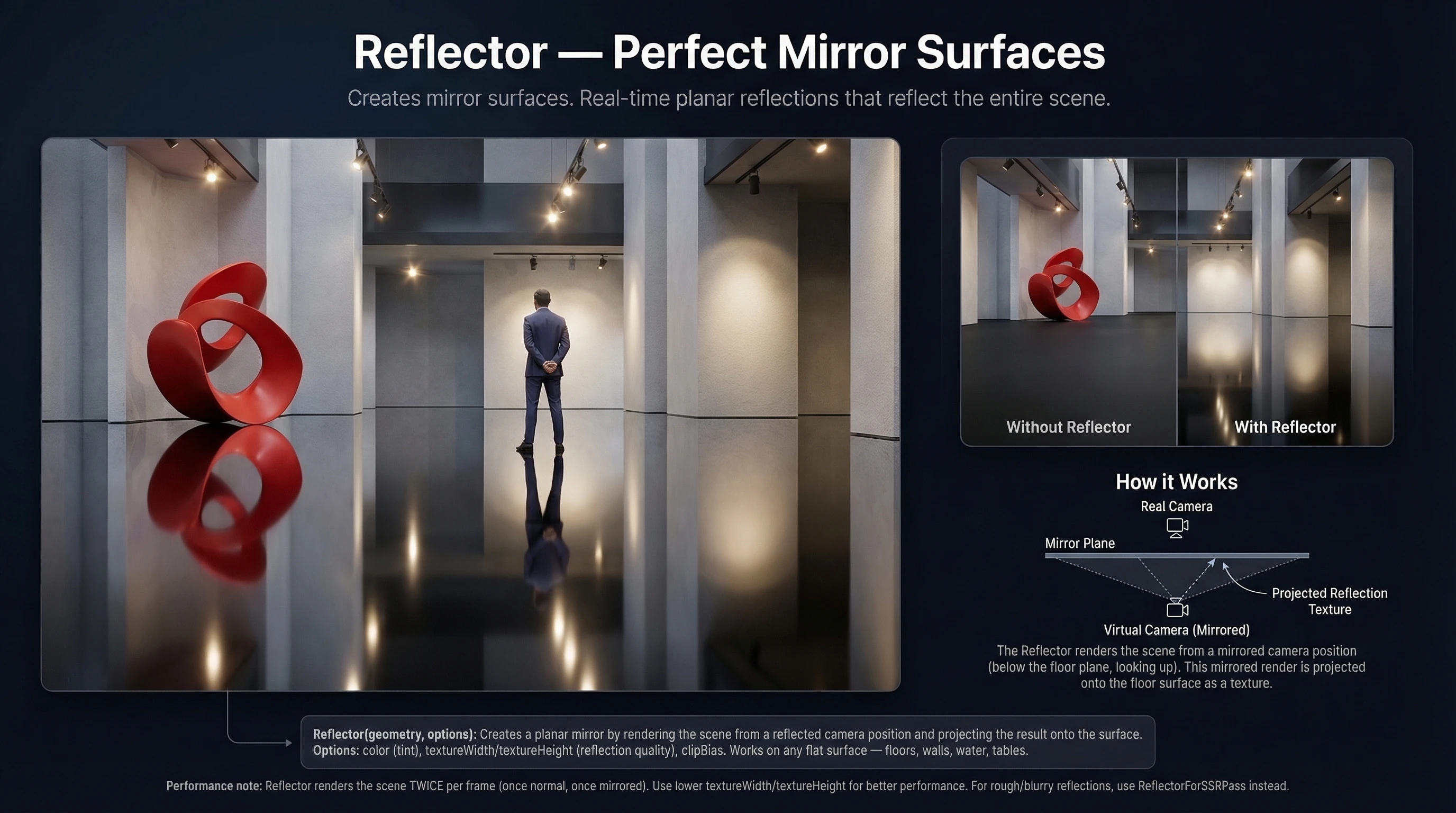

Reflector - Real-Time Mirror
Renders the scene from a reflected camera perspective into a texture, then applies that texture to the reflective plane - a real-time mirror. Used for glossy floors, mirrors, calm water. ReflectorForSSRPass adds screen-space reflections for any surface (not just flat planes).

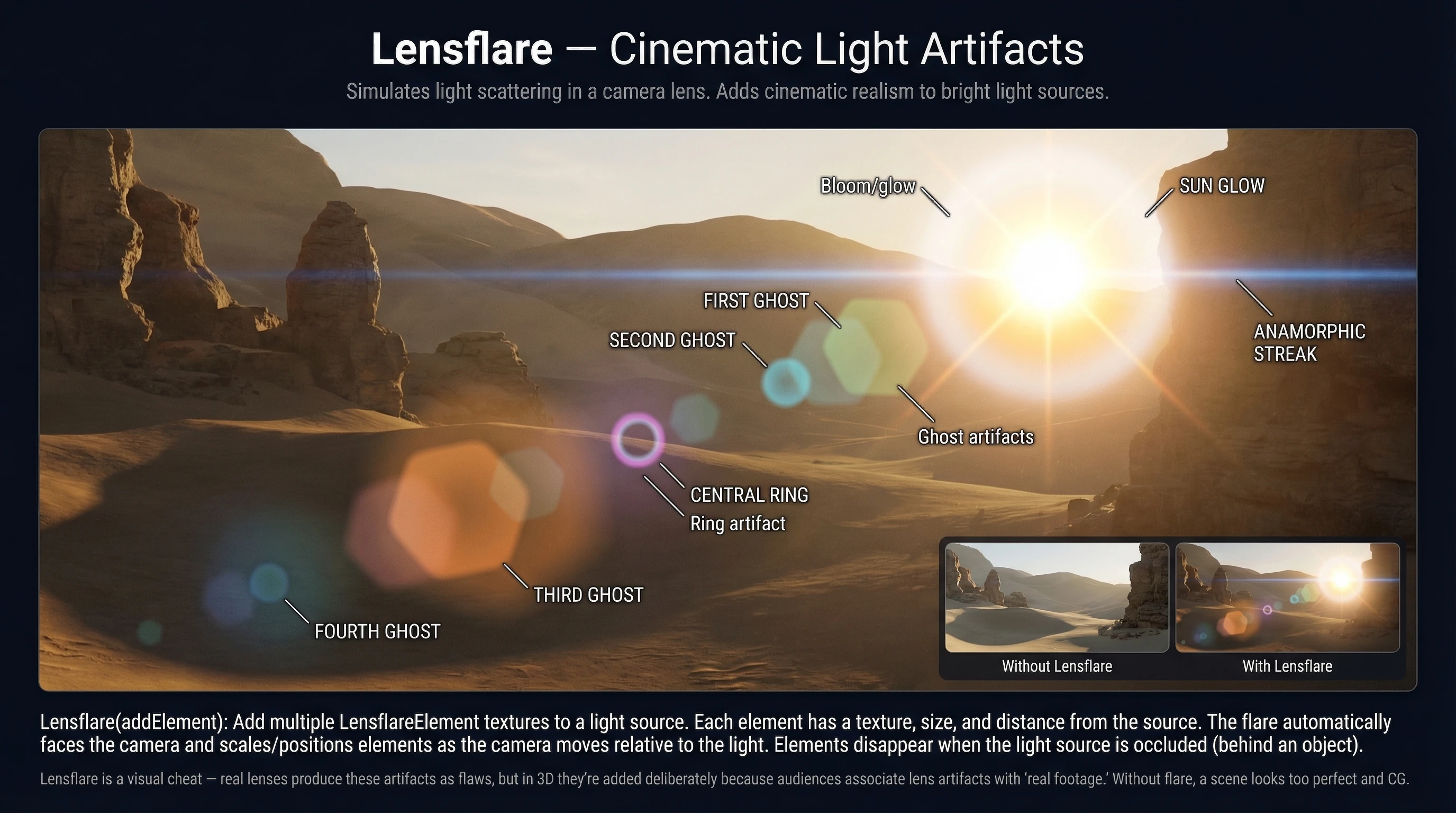

Lensflare
Adds hexagonal aperture flare artefacts along the axis from a bright light to screen centre - mimicking a camera lens. Attach Lensflare to any light/object and add textured flare elements at different screen distances. Occlusion-tested: disappears when the light source is hidden.

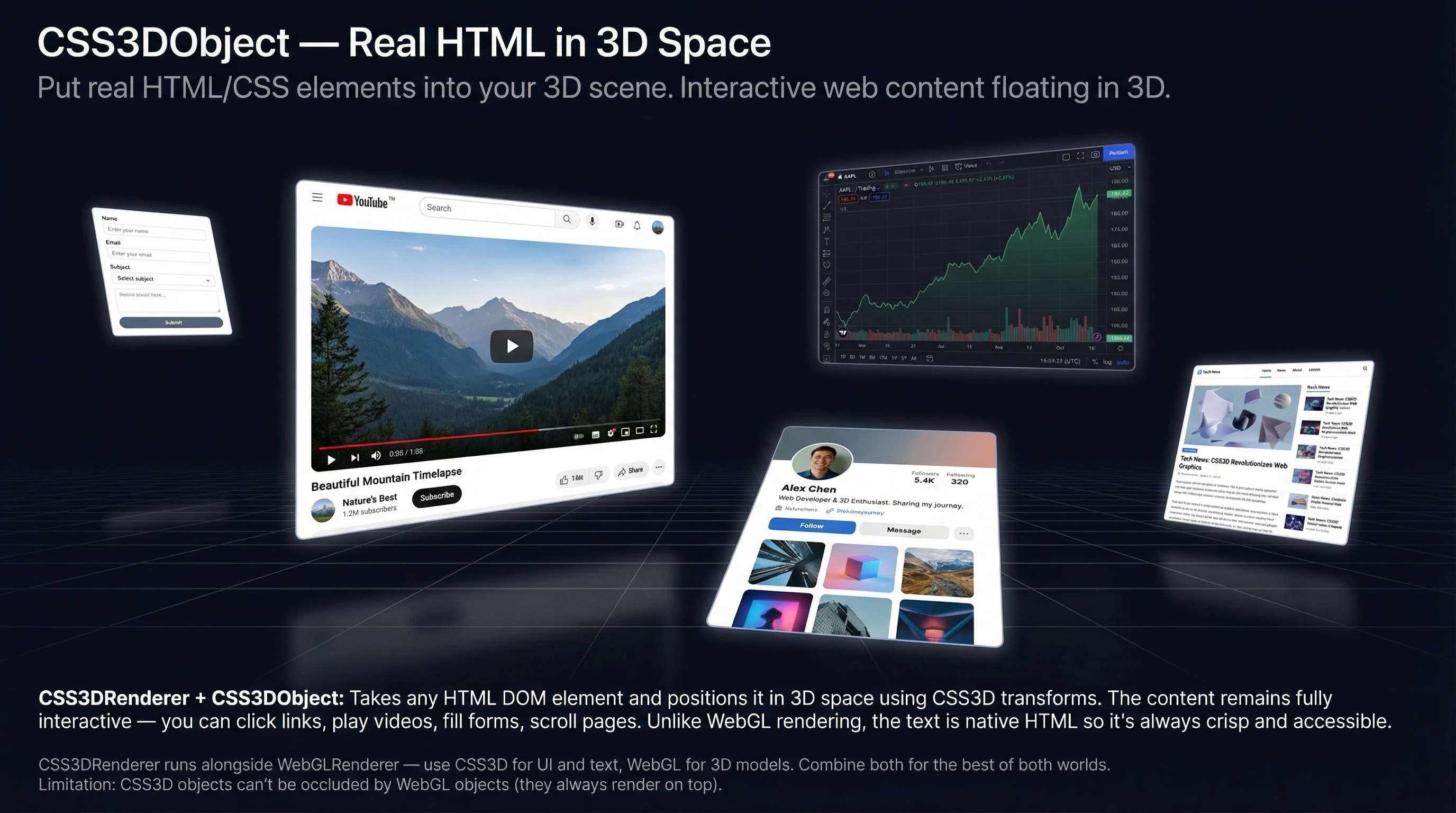

CSS3DObject - HTML Elements in 3D
CSS3DRenderer overlays a DOM layer perfectly aligned with the WebGL scene. CSS3DObject wraps any HTML element (including live iframes, video, interactive UI) and positions it in 3D space. The CSS transform matches Three.js camera perspective exactly. Combine with WebGL renderer for mixed HTML/3D experiences.

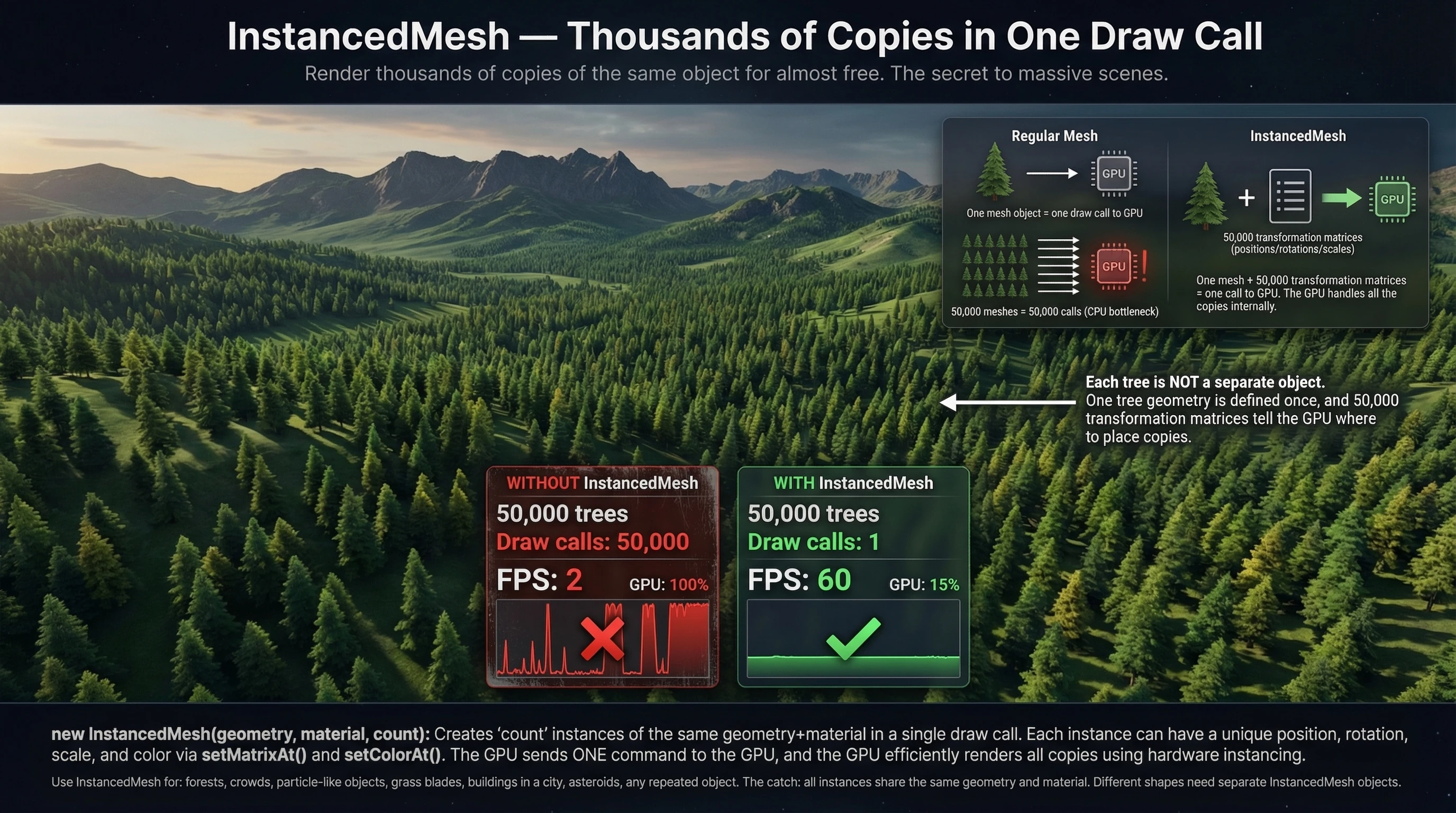

Instancing - One Draw Call, 100,000 Objects
InstancedMesh renders N copies of the same geometry+material in a single GPU draw call. Each instance has its own 4×4 transform matrix (position, rotation, scale) and optional per-instance colour. Rendering a forest of 100,000 trees takes the same CPU time as rendering one tree.

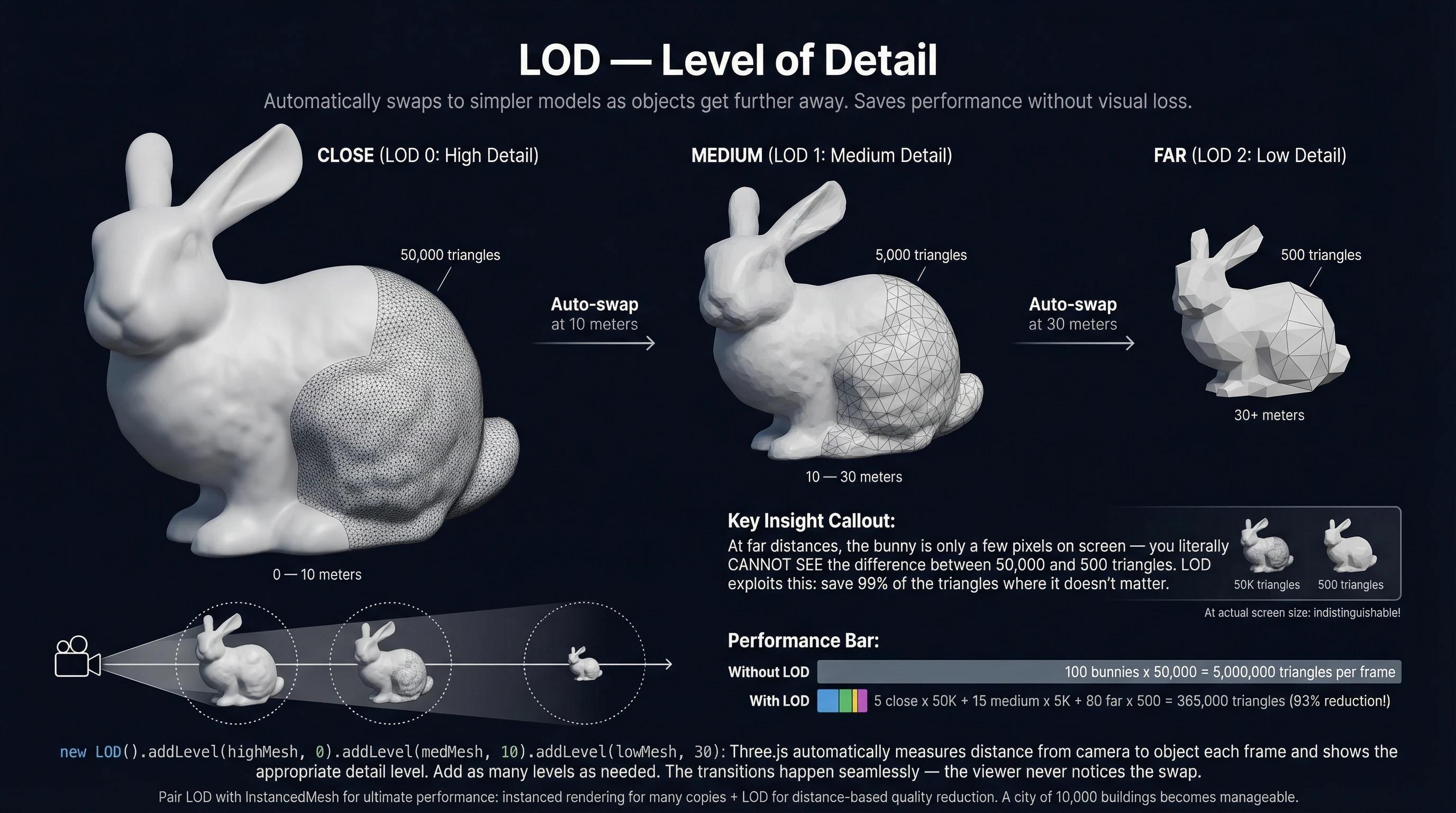

LOD - Level of Detail
LOD.addLevel(mesh, distance) - the closest level shows full detail; as camera distance increases, lower-poly versions swap in automatically. Halving polygon count at double distance maintains visual quality while dramatically reducing GPU load. Essential for open worlds and large scenes.

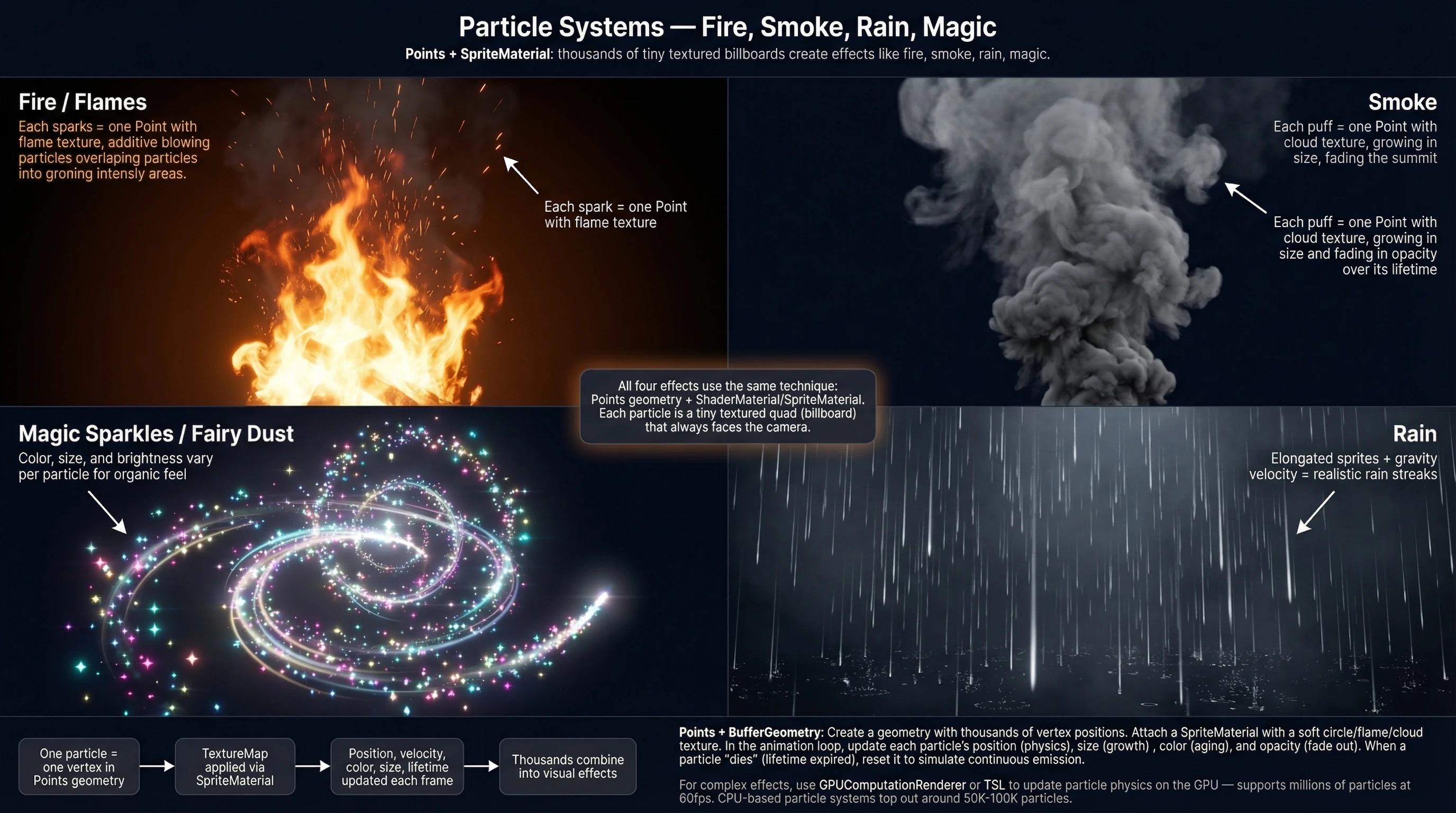

Sprite Particles - Points System
Points geometry + PointsMaterial renders each vertex as a screen-aligned billboard. size controls point size, sizeAttenuation enables perspective scaling, map applies a texture, vertexColors allows per-particle colour. For millions of particles, use GPU simulation via GPGPU (Section 12h).
Raycaster - Mouse Picking & Interaction
Cast a mathematical ray from the camera through the mouse pointer into the scene. raycaster.setFromCamera(pointer, camera) then intersectObjects(meshArray) returns all hit objects sorted by distance, each with exact hit point, normal, UV, and face index. The foundation for all 3D clicking, hovering, and dragging.
Clipping Planes - Cross-Sections
Discard all fragments on one side of a mathematical plane (Plane: normal + constant). renderer.clippingPlanes clips globally. material.clippingPlanes clips per-material. Animate the plane to create a cutting animation. Multiple planes create complex cross-section views - medical, architectural, CAD visualisations.
16
Loaders
Loaders import external assets - 3D models, textures, environments. Three.js ships a base Loader class and dozens of format-specific loaders in the addons. Use GLTFLoader for 3D models - it's the "JPEG of 3D", compact and feature-complete. Use LoadingManager to track combined loading progress across all assets.

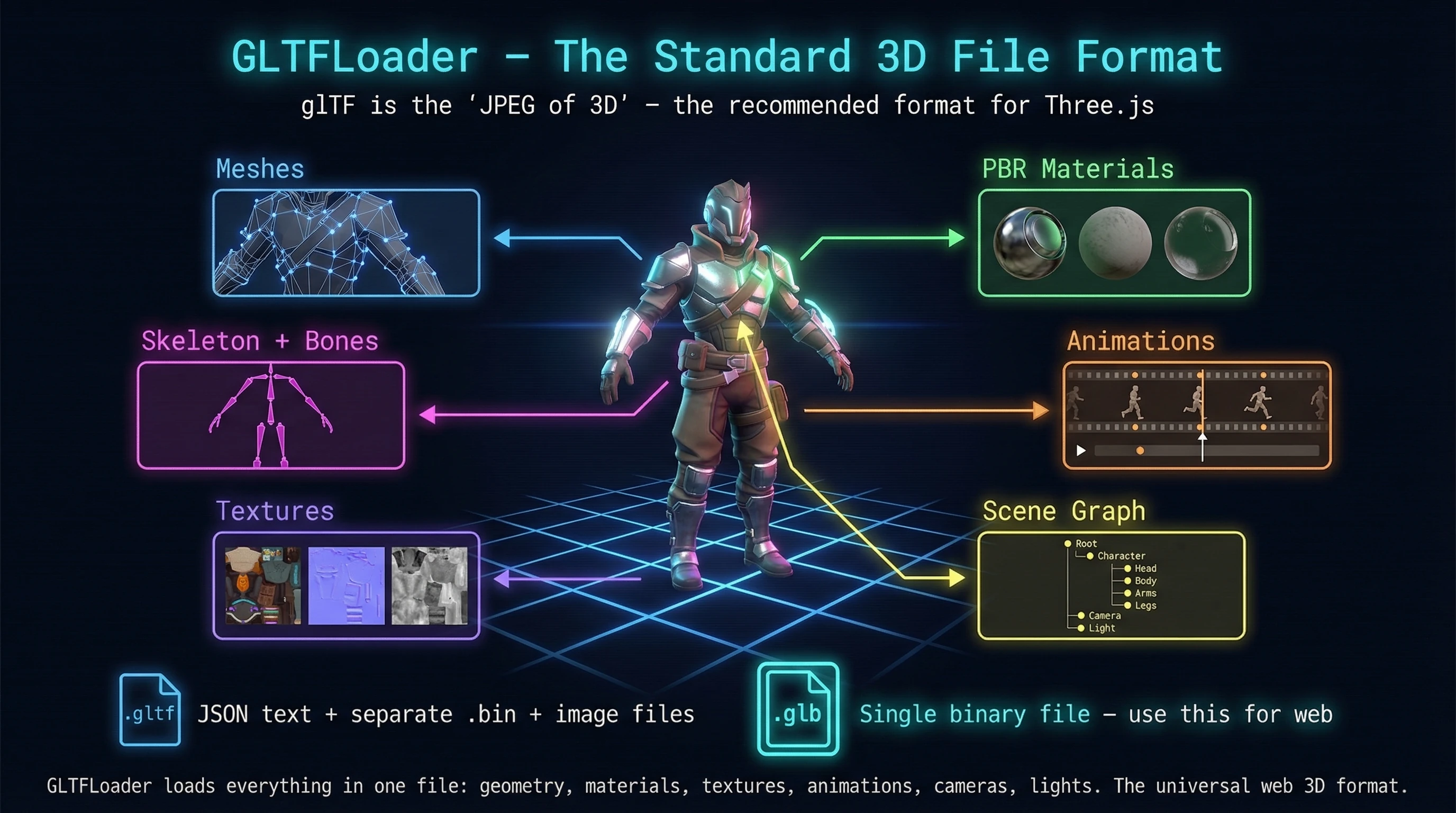

.gltf (JSON + separate .bin + images) or .glb (single binary bundle). Supports: PBR materials, skeletal animation, morph targets, multiple meshes/scenes, lights, cameras, custom extensions (KHR_draco_mesh_compression, KHR_materials_transmission, EXT_meshopt_compression). The correct default choice for web delivery.

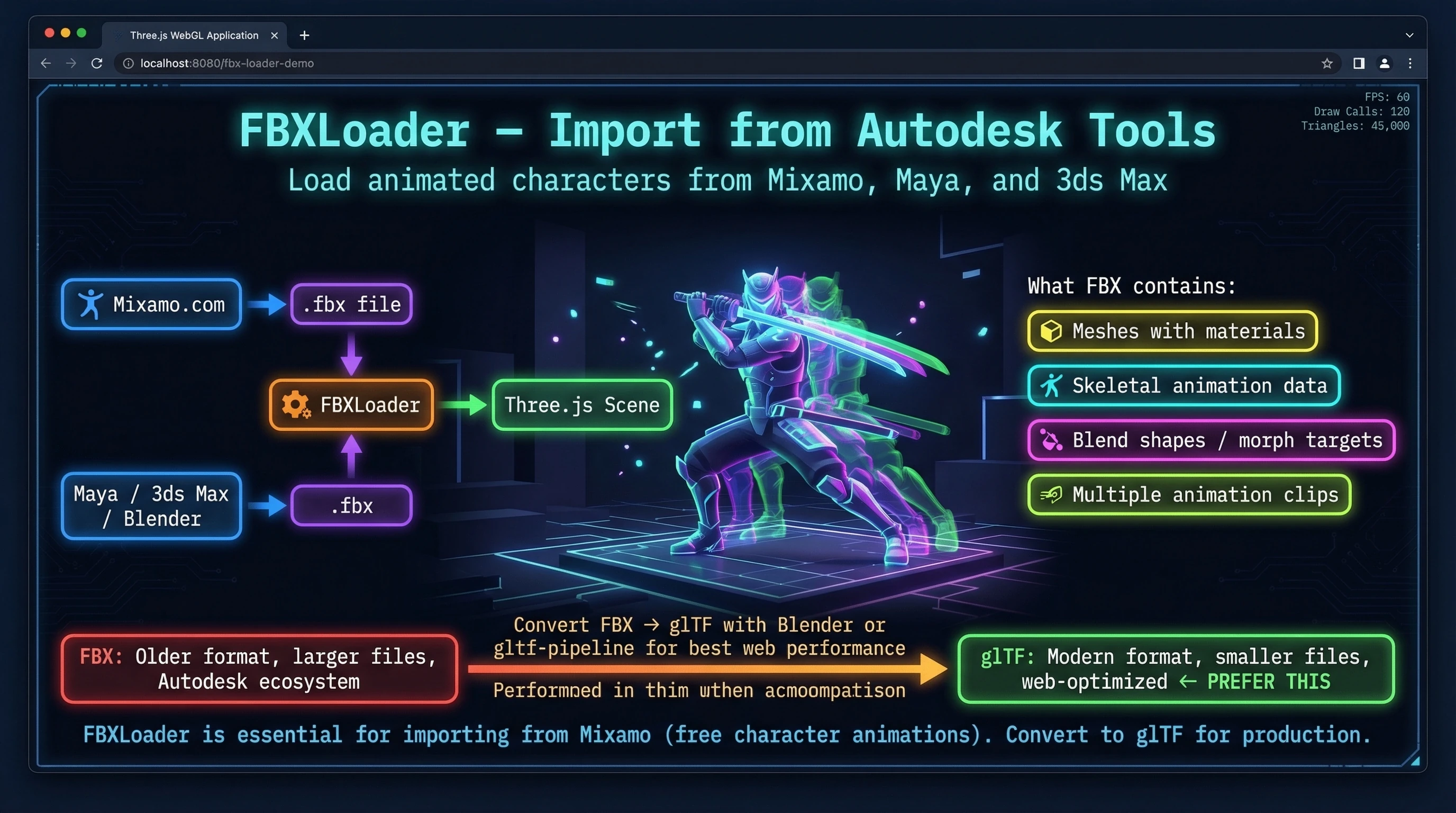

FBXLoader - Autodesk Format
Autodesk FBX is common in game pipelines from Maya, 3ds Max, MotionBuilder and game engines like Unity/Unreal (as export format). FBXLoader supports skeletal animation, morph targets, embedded textures. Files tend to be large - prefer exporting to GLTF from DCC tools where possible, using FBX only when needed.

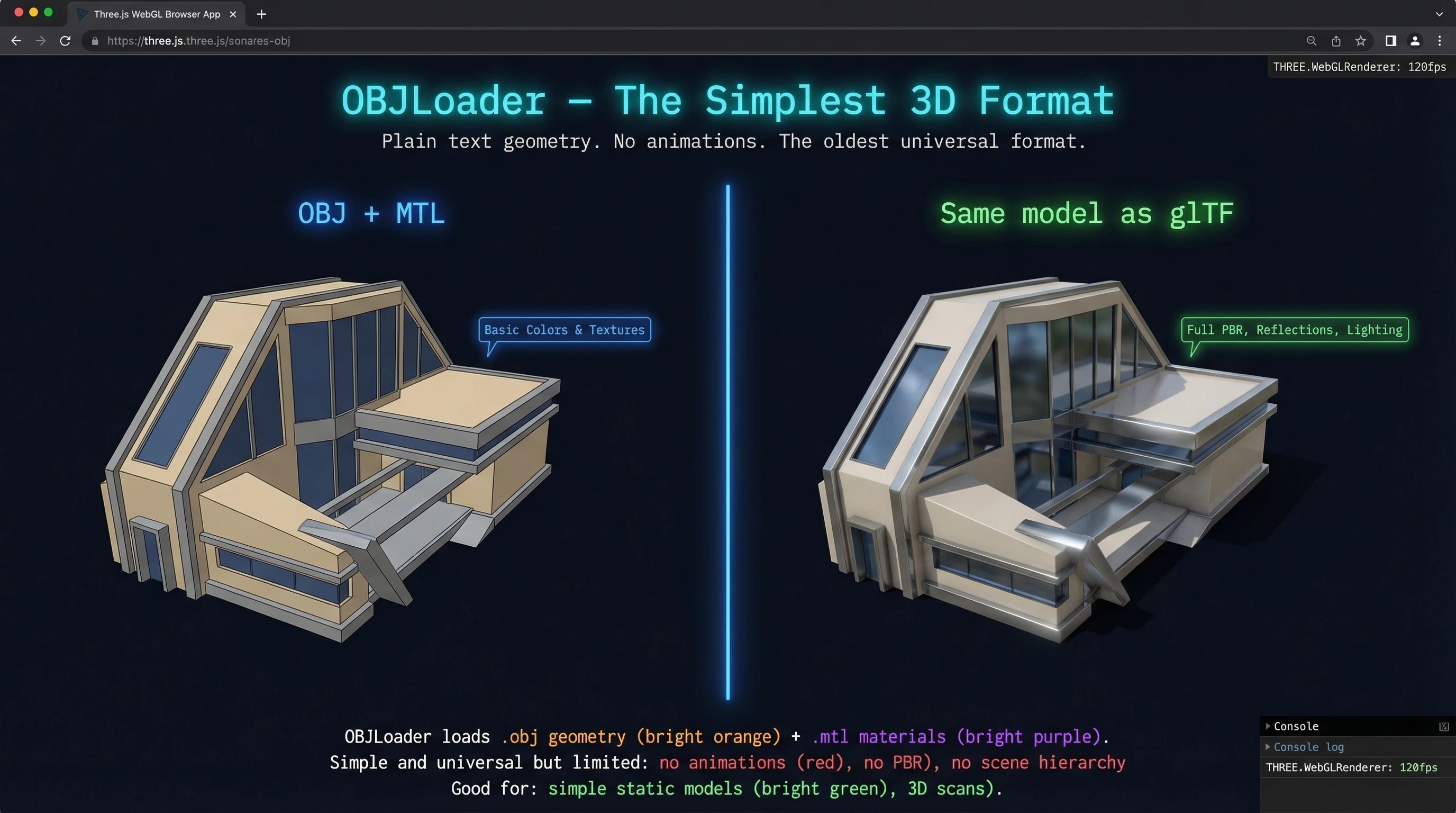

OBJLoader - Universal Legacy Format
The most widely supported 3D format - almost every 3D application can export OBJ. Human-readable text format, paired with .mtl for materials (Phong, no PBR). No animation support. Large file sizes. Good for static geometry interchange and legacy assets. Use GLTF for anything new.

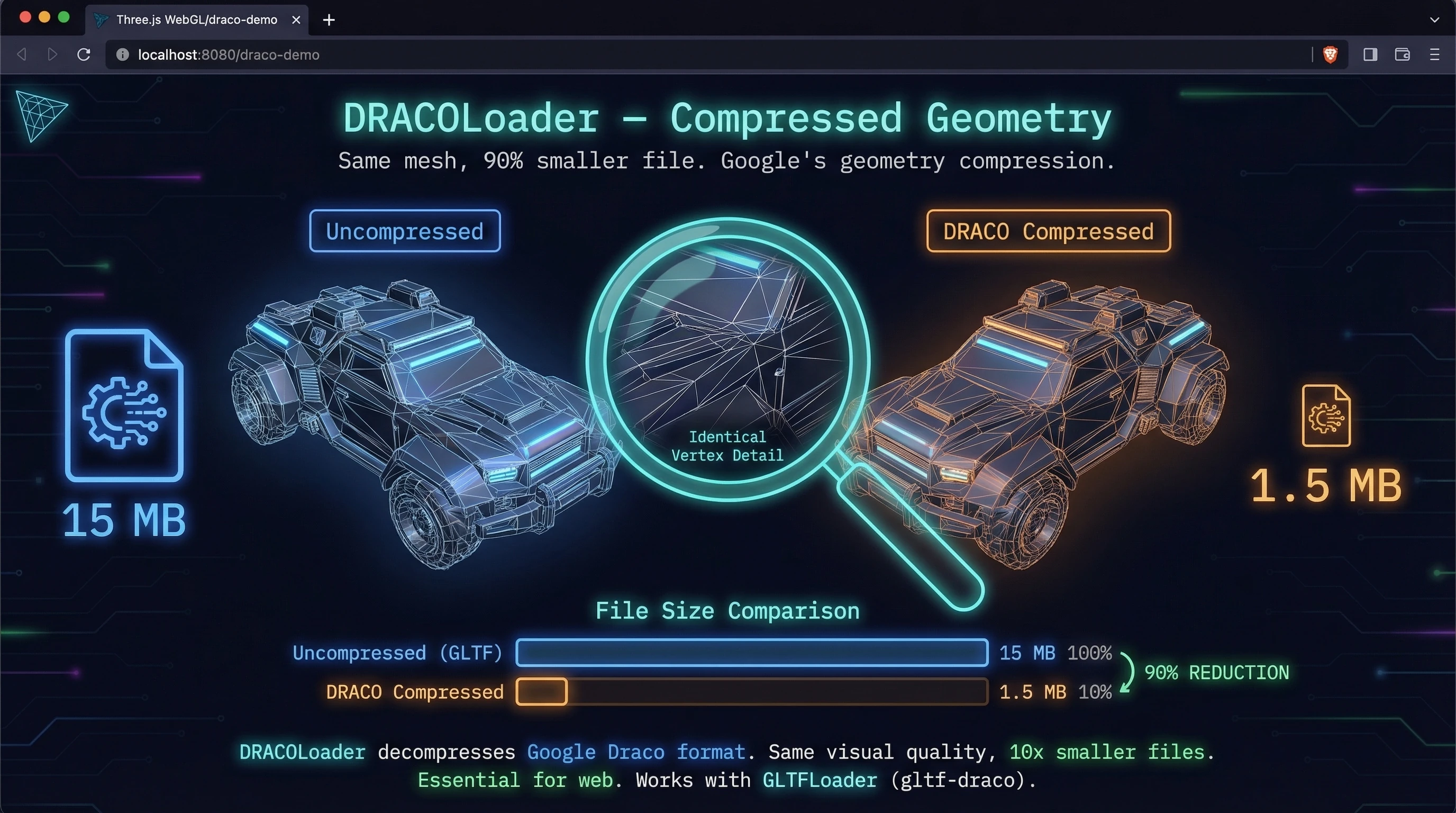

Draco Compression
Google's open-source mesh compression codec reduces geometry file size by 50–90% with minimal visual loss. Embed in GLTF via KHR_draco_mesh_compression extension. Requires DRACOLoader with the decoder WASM loaded from a CDN or bundled. Worth the setup cost for bandwidth-critical apps.
RGBELoader / EXRLoader - HDR Environments
Load .hdr (Radiance RGBE format) or .exr (OpenEXR) HDRI environment maps - equirectangular panoramas with high dynamic range. Pass the loaded texture to PMREMGenerator.fromEquirectangular() to prefilter for physically-based IBL. Free HDRI libraries: Poly Haven, HDRIHaven.

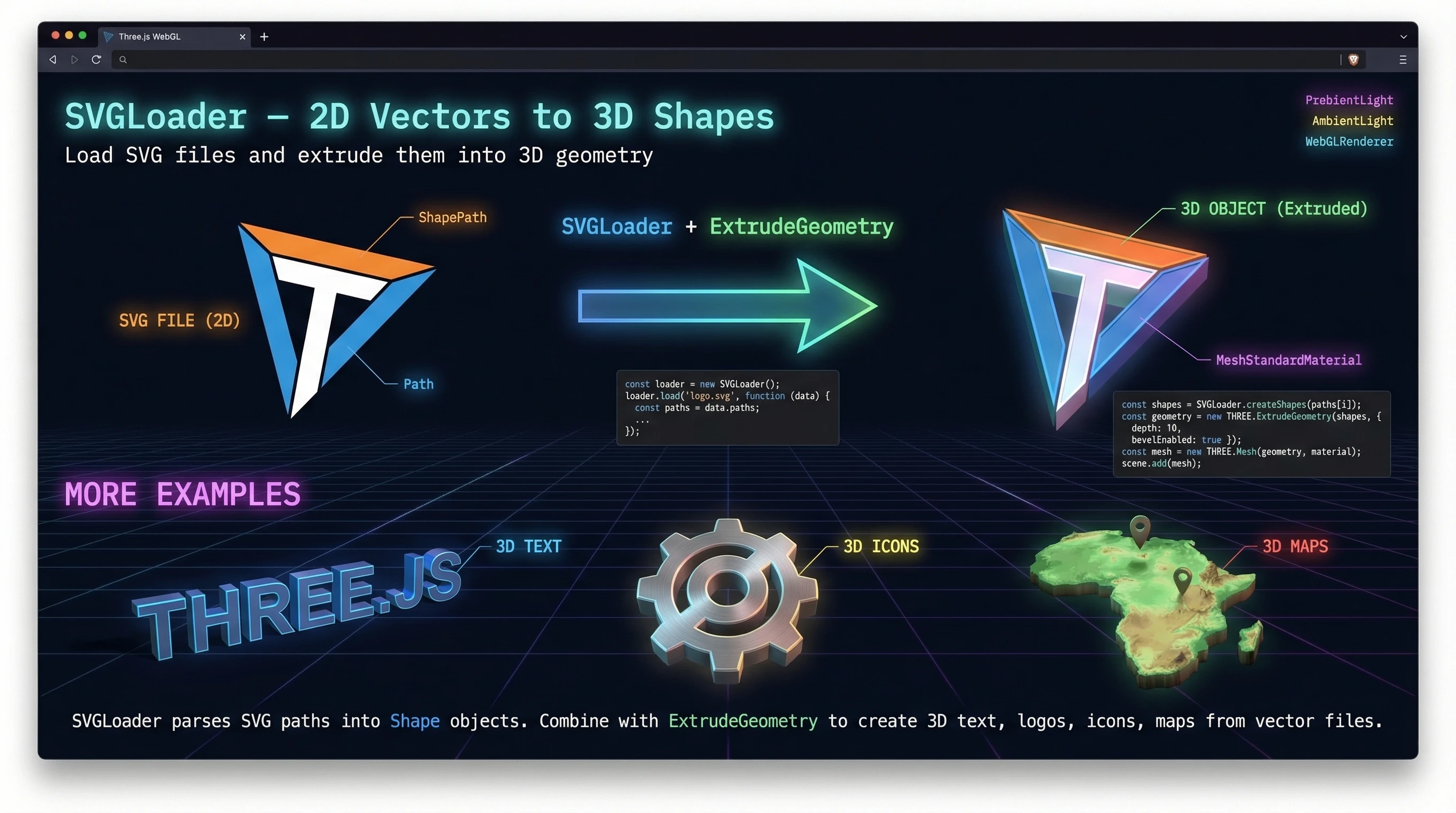

SVGLoader - Vector Graphics in 3D
Parses SVG paths, circles, rects and polygons into Three.js ShapePaths. Pass shapes to ExtrudeGeometry for 3D logos with depth and bevel, or ShapeGeometry for flat vector art in 3D space. Preserves curves, fills and colours from the source SVG.
17
Physics
Three.js has no built-in physics - it's a rendering library. But it pairs seamlessly with dedicated physics engines. The pattern is always the same: physics world runs the simulation, Three.js mirrors the results visually. Popular choices: Rapier (Rust/WASM, fastest, deterministic), cannon-es (pure JS, easy), Ammo.js (Bullet port, full-featured), Jolt (game-quality).

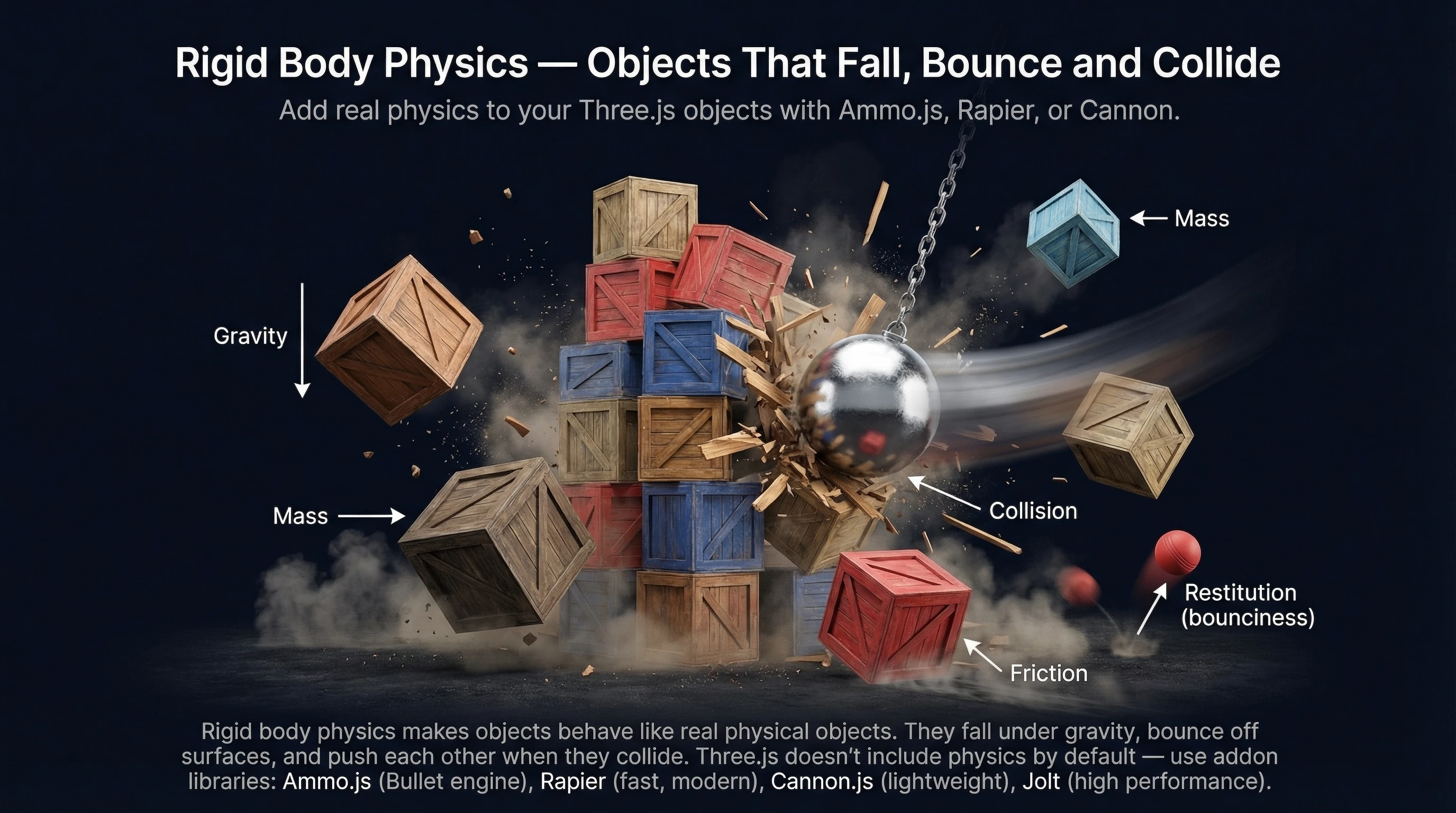

Objects with mass that fall, bounce, slide and collide realistically. Each body has a collision shape (box, sphere, convex hull, trimesh), mass (0 = static), friction and restitution (bounciness). Every frame: world.step(delta) → copy body.position to mesh.position, body.quaternion to mesh.quaternion.
Cloth Simulation
A grid of particles connected by stretch, shear and bend spring constraints. Pin some particles (e.g. top corners) and let gravity pull the rest. Apply wind force for fabric movement. Resolve constraints iteratively each frame - more iterations = stiffer, more accurate. Ammo.js soft bodies or custom verlet integration.

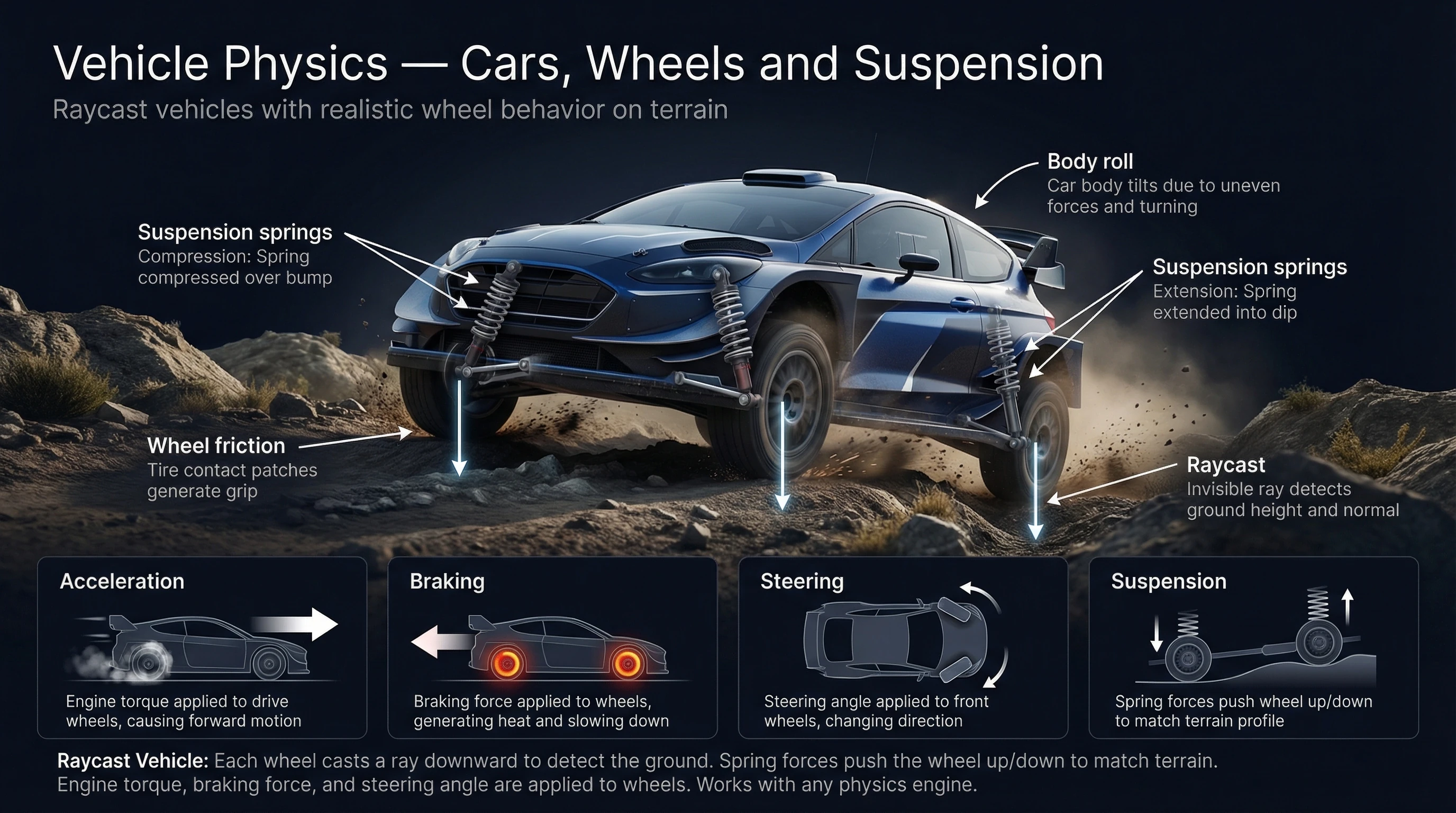

Vehicle Physics
Ray-cast vehicle model: a chassis rigid body with four ray-cast "wheels". Rays shoot downward from each wheel mount and detect the ground; suspension compresses based on contact distance. Engine torque applied to driven wheels; steering applies to front wheels. Rapier and Ammo.js both have vehicle controllers.
Constraints & Ragdolls
Constraints join two rigid bodies with limits: Hinge (door, wheel), Slider (piston), Lock (weld), Point-to-point (wrecking ball chain), Cone-twist (shoulder joint with angle limits). Chain cone-twist constraints for a ragdoll skeleton that collapses physically when the character is knocked down.
18
Helpers & Debug Tools
Helpers are Object3D instances added to the scene during development to visualise invisible things - camera frustums, light shapes, bone positions, bounding boxes, normals. They are standard scene objects: add them, move them, set visible=false. Remove before shipping. Invaluable for debugging shadow cameras, verifying rig setup, checking frustum culling.

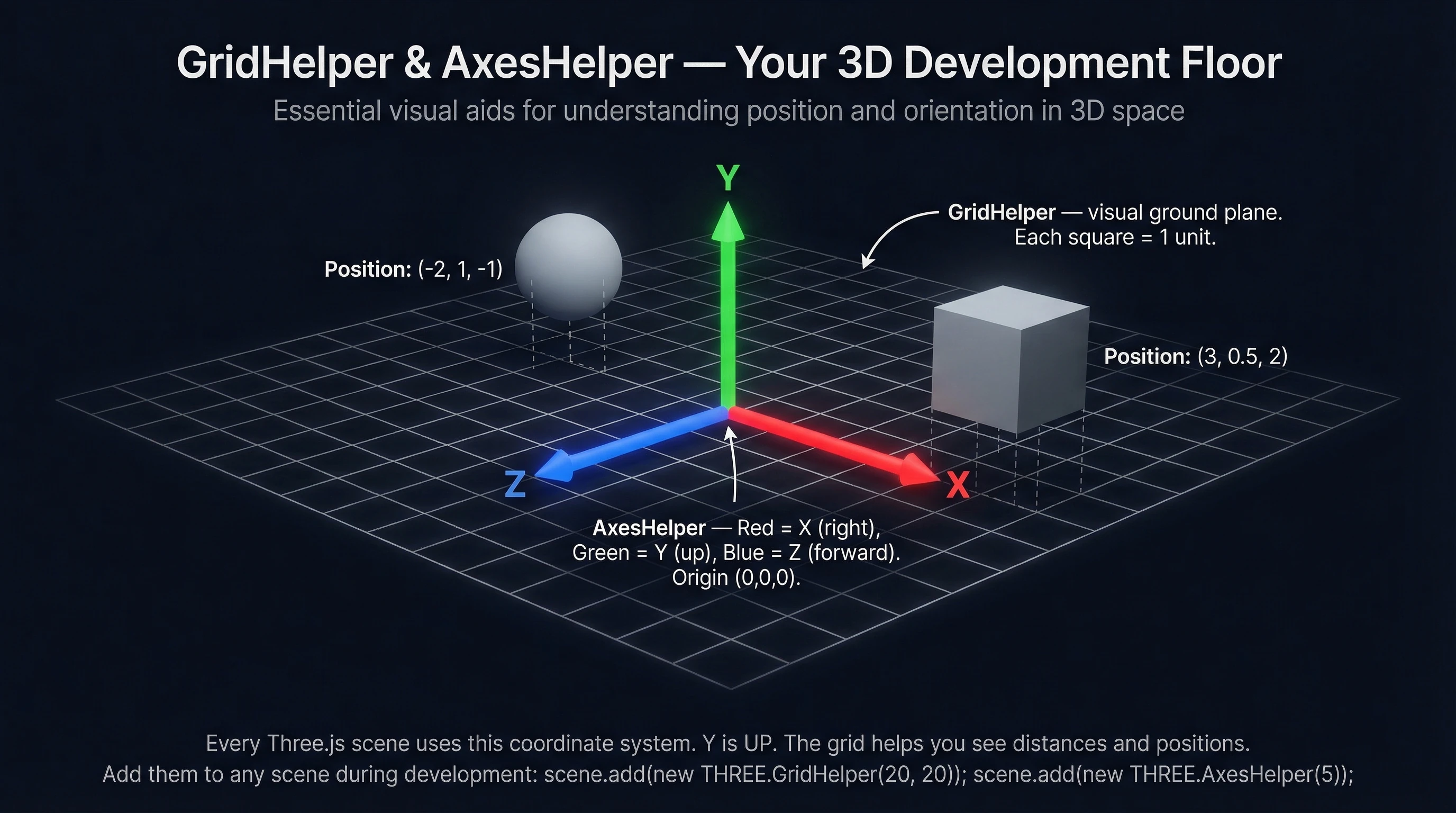

GridHelper draws a flat grid at Y=0 - instantly orients you in 3D space. new GridHelper(size, divisions). AxesHelper draws the XYZ axes as red (X), green (Y), blue (Z) lines. new AxesHelper(length). These two together are the first thing to add to any new project.

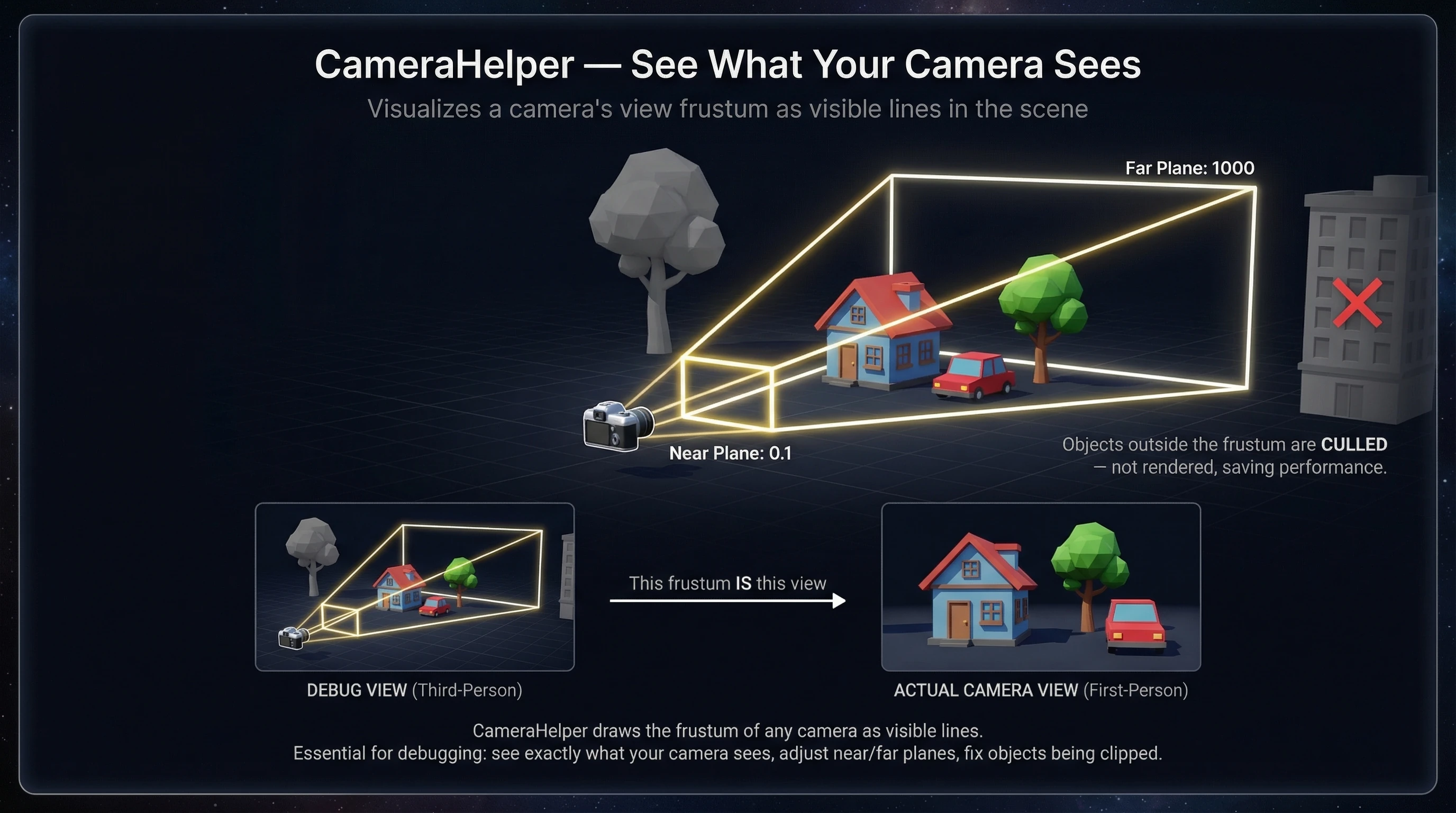

CameraHelper - Visualise Frustum
Renders the wireframe frustum of any camera as lines in the scene. Add new CameraHelper(camera) to visualise near plane, far plane and field of view. Critical when debugging shadow cameras (DirectionalLight.shadow.camera) - you can see exactly what the light "sees".

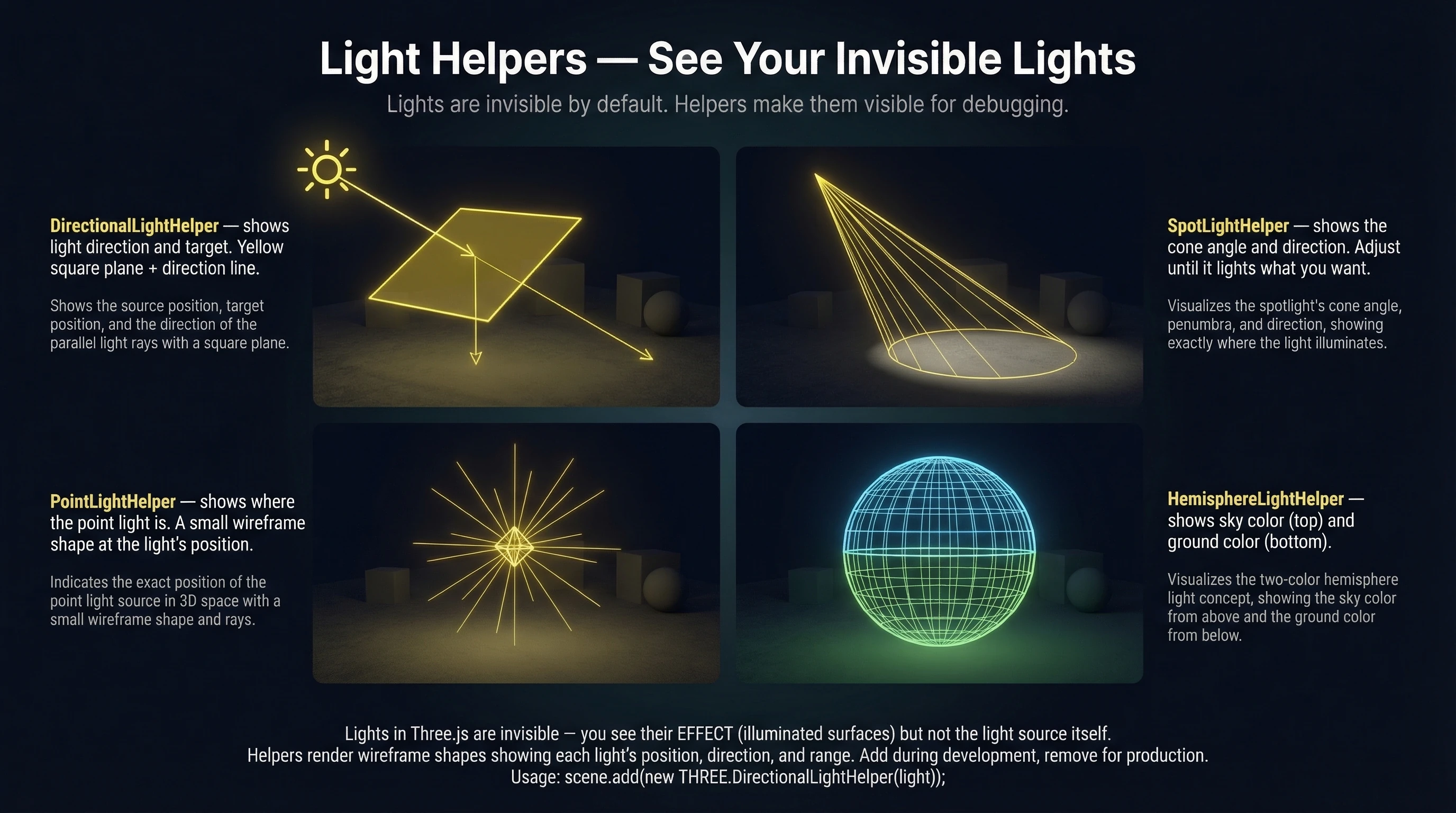

Light Helpers
DirectionalLightHelper: arrow + target line. PointLightHelper: wireframe sphere at the light position. SpotLightHelper: cone shape. HemisphereLightHelper: two colour-coded hemispheres. RectAreaLightHelper: outlined rectangle. All update when you move the light. Pass size to control helper scale.
SkeletonHelper - Bone Visualiser
Renders the bone hierarchy of a SkinnedMesh as coloured line segments showing each bone's position and length. new SkeletonHelper(skinnedMesh) - add it to the scene and it updates every frame. Essential for debugging animation rigs, verifying bone names and understanding skeleton hierarchy after loading a GLTF character.
19
Curves, Shapes & Extras
Three.js has a rich 2D/3D curve and shape system. Curves define smooth paths through space - use them for camera fly-throughs, tube geometry, spline animation. Shapes define 2D outlines that can be extruded into 3D. PMREMGenerator is the utility that makes physically-based environment lighting work correctly.

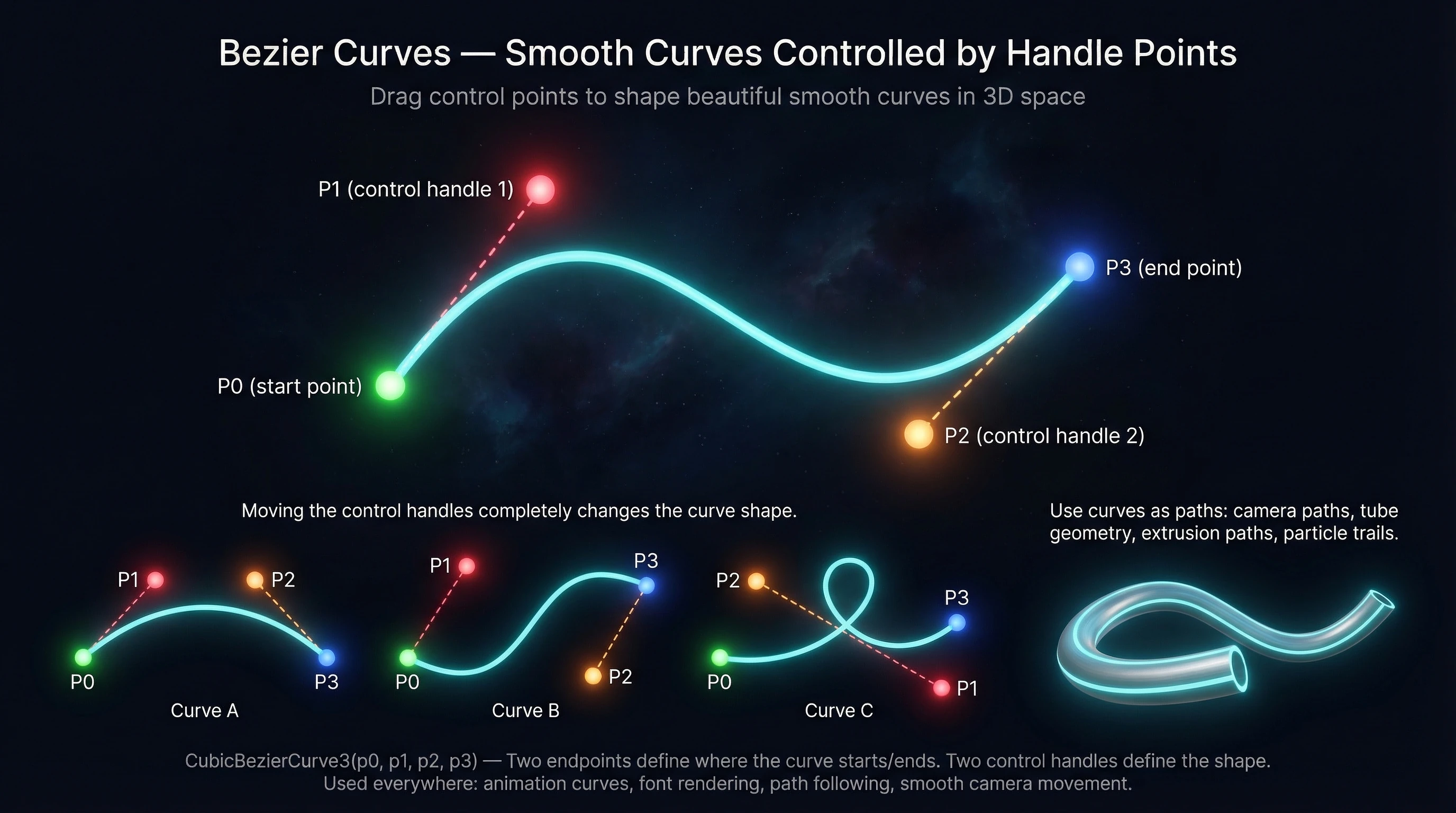

QuadraticBezierCurve3 (start, control, end) and CubicBezierCurve3 (start, control1, control2, end). Define smooth curves through 3D space using control points that pull the curve without it necessarily passing through them. curve.getPoints(n) samples N points - pass to TubeGeometry, LineGeometry, or use for animation paths.

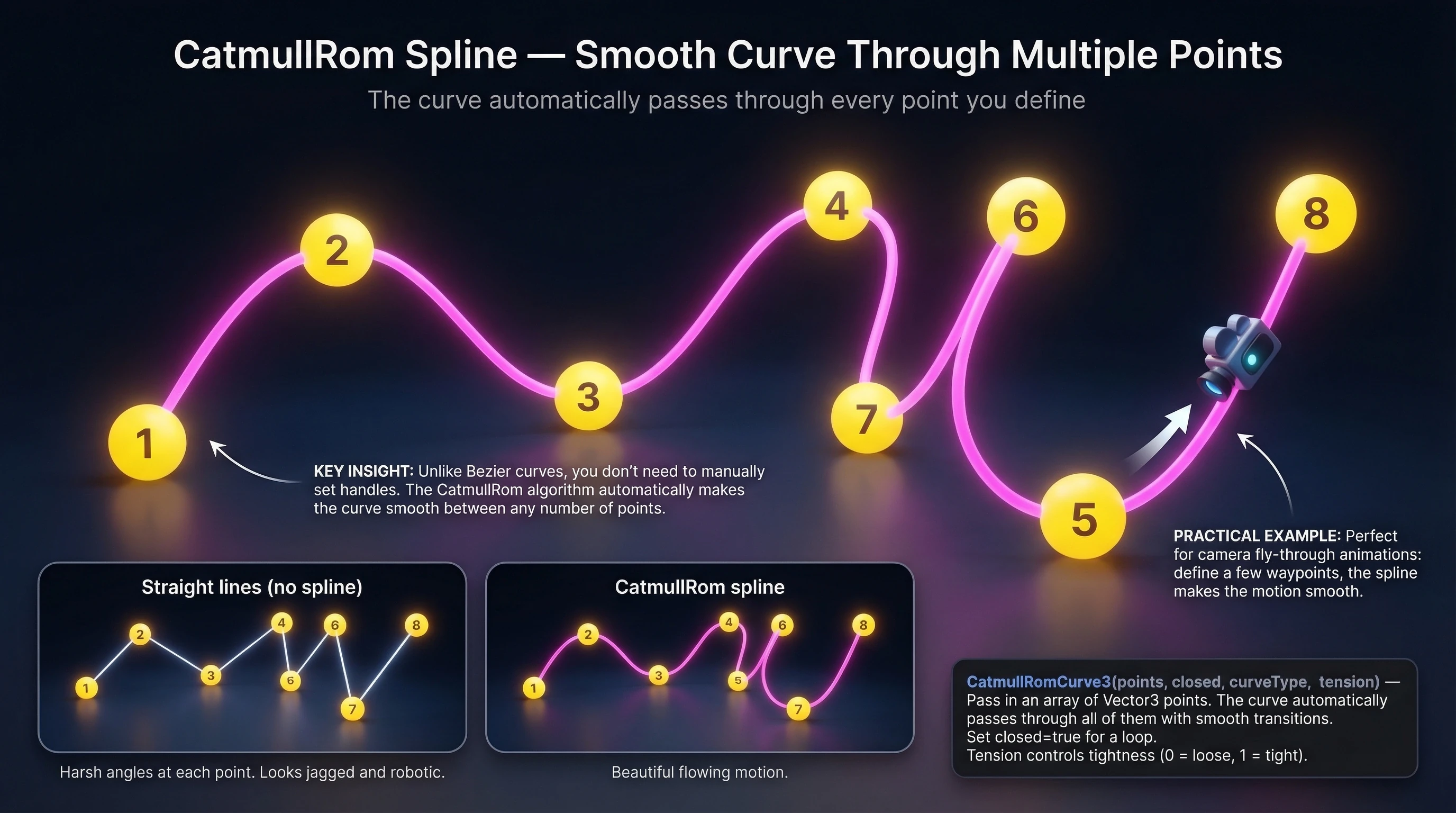

CatmullRom Spline - Camera Paths
Unlike bezier curves, CatmullRomCurve3 passes through all control points. Perfect for cinematic camera fly-throughs: place a series of waypoints, sample curve.getPointAt(t) as t goes 0→1, set the camera to look at the next point on the curve for smooth forward-facing movement.

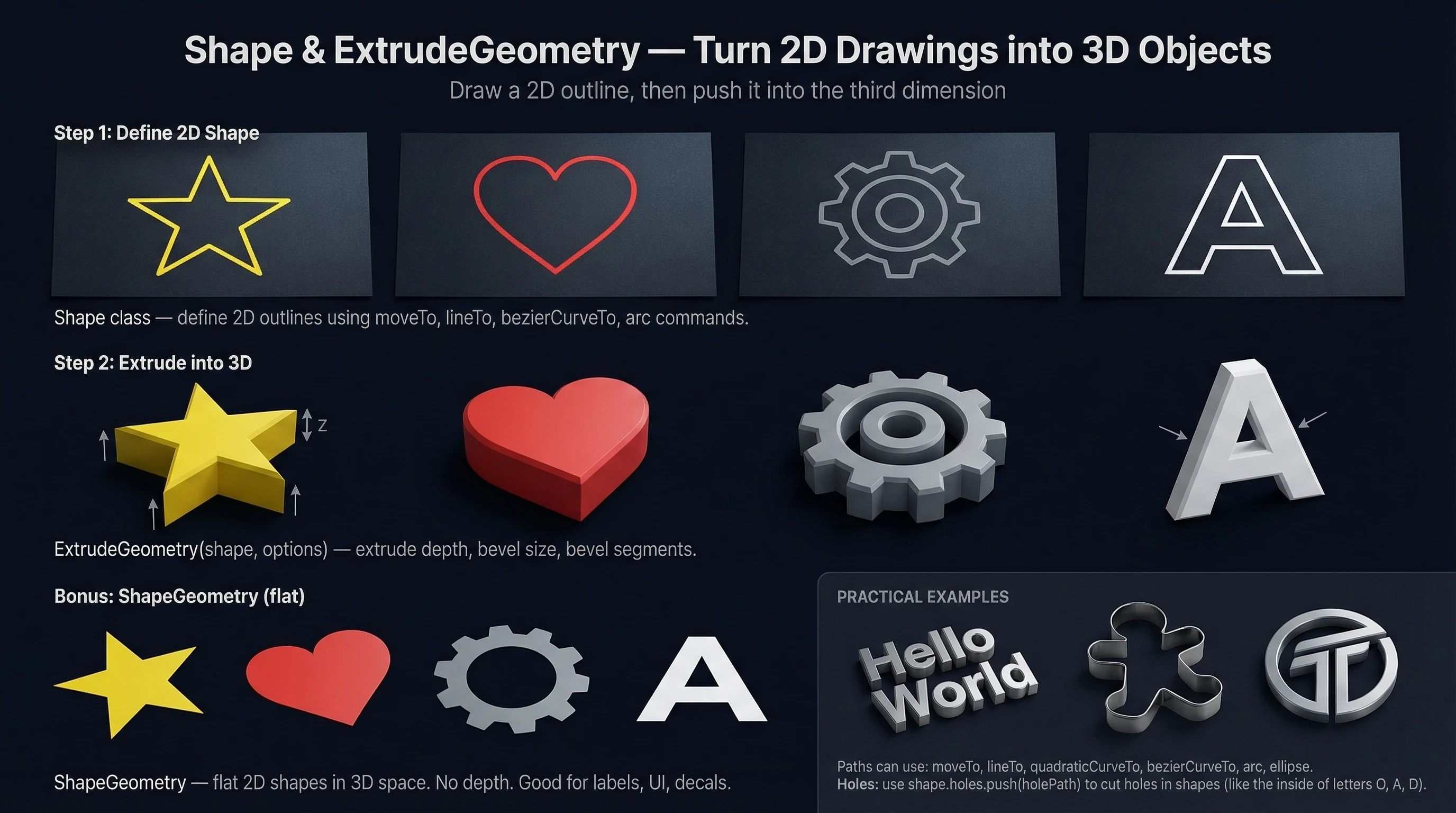

Shape + ExtrudeGeometry
Define a 2D outline with Shape (moveTo, lineTo, bezierCurveTo, arc, hole for cutouts). Pass to ShapeGeometry for flat 2D, or ExtrudeGeometry with depth and bevelSize parameters for 3D depth. Create custom logos, architectural mouldings, extruded text, custom mechanical parts.
PMREMGenerator - Prefiltered Environment Maps
Pre-filters a raw environment (HDRI or cubemap) into a Prefiltered Mipmapped Radiance Environment Map (PMREM). Different mip levels correspond to different roughness values - a rough surface samples a blurry mip, a mirror samples the sharpest mip. Required for correct PBR rendering with environment lighting. Run once after loading the HDRI.
Three.js includes a complete 3D math library. These classes are used everywhere in the engine and in your code - setting positions, composing rotations, computing transforms, building ray queries. Understanding Vector3, Quaternion and Matrix4 deeply is fundamental to working with Three.js beyond the basics.
Vector2/3/4 - 2D/3D/4D vectors. Operations: add, sub, multiply, divide, dot, cross, length, normalize, lerp, clone. The most used class in Three.js.
Quaternion - Rotation without gimbal lock. setFromEuler, setFromAxisAngle, slerp (smooth rotation interpolation). Always use Quaternion for rotation math - never Euler for interpolation.
Euler - Human-readable rotation angles (X, Y, Z in radians + order). Easy to set from degrees, but don't interpolate between Eulers - convert to Quaternion first.
Matrix3/4 - 3×3 and 4×4 matrices for transforms. Every Object3D has a matrix (local) and matrixWorld (world space). decompose extracts position/quaternion/scale.
Color - RGB + HSL colour. setHex, setHSL, lerp, convertLinearToSRGB. Always work in linear colour space internally.
